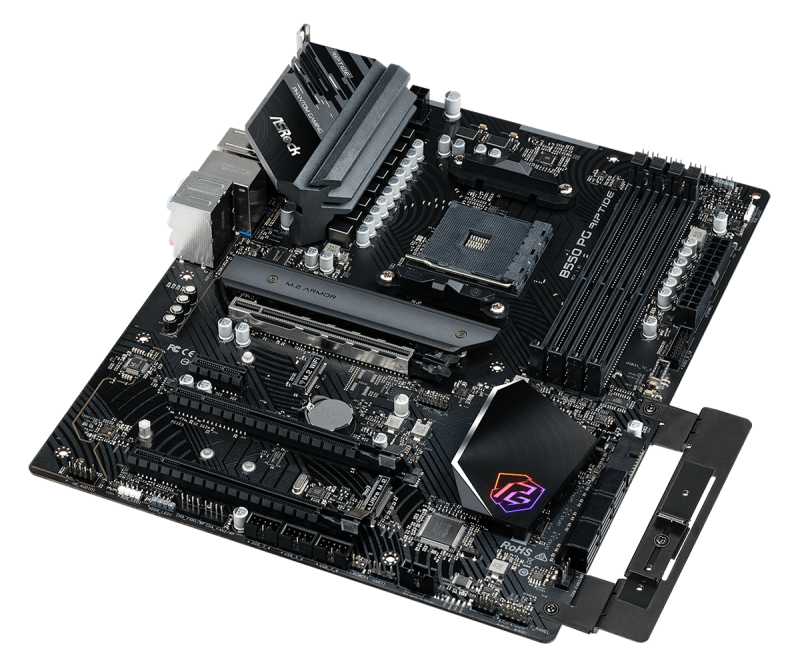

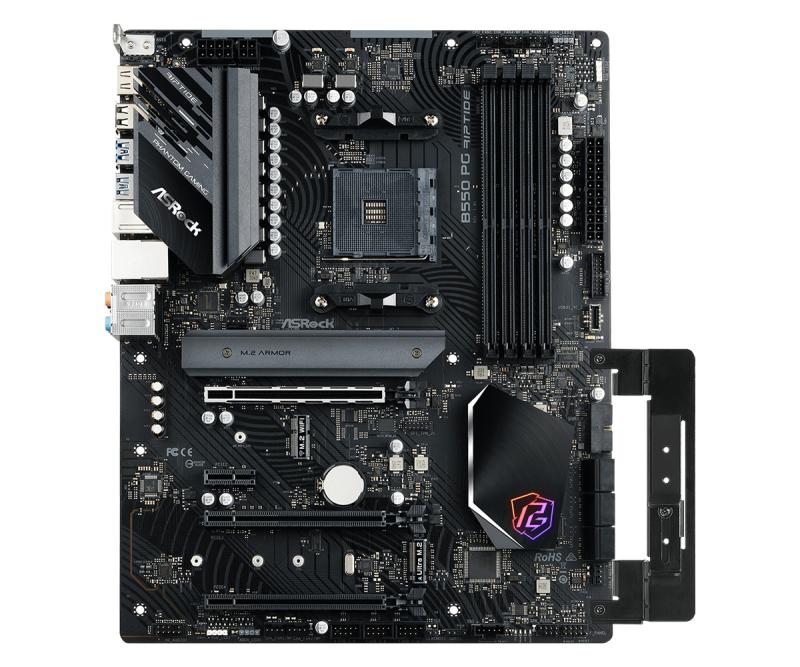

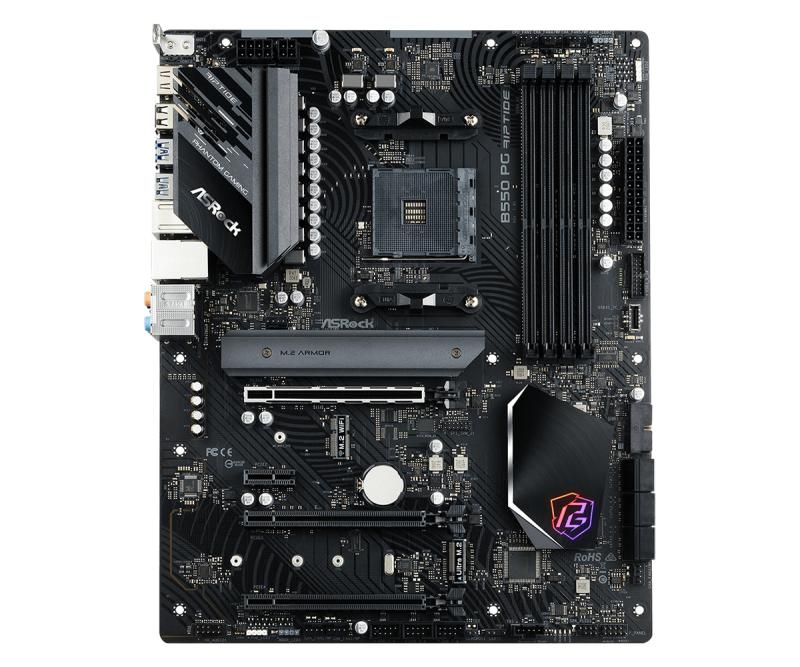

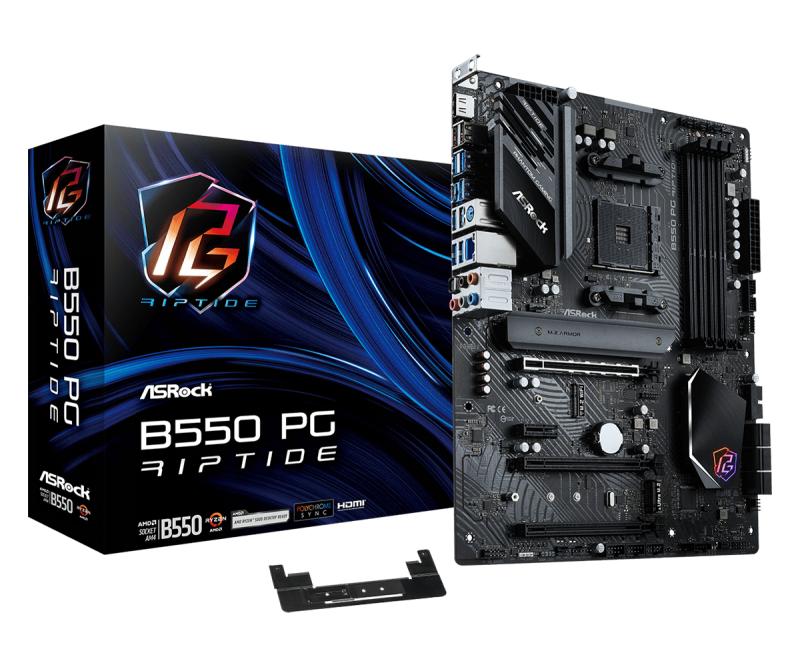

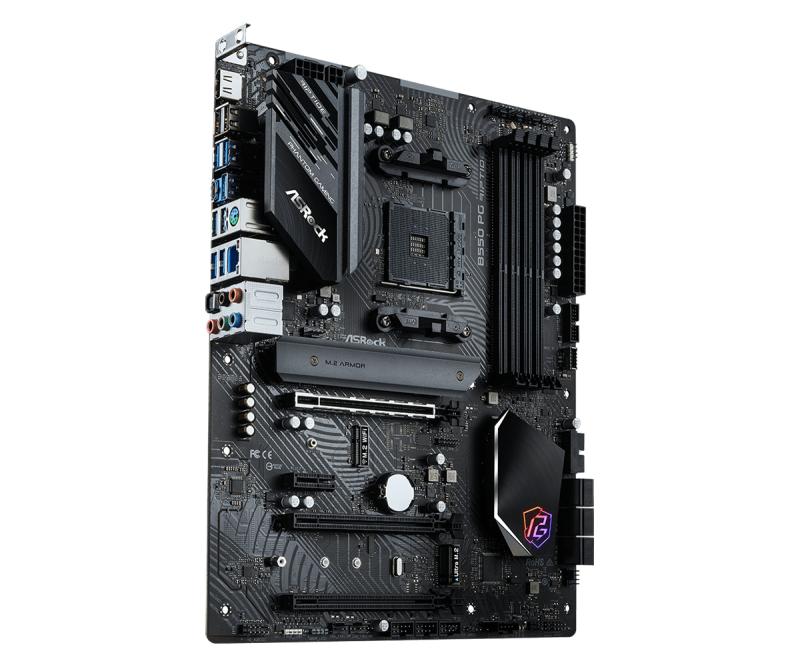

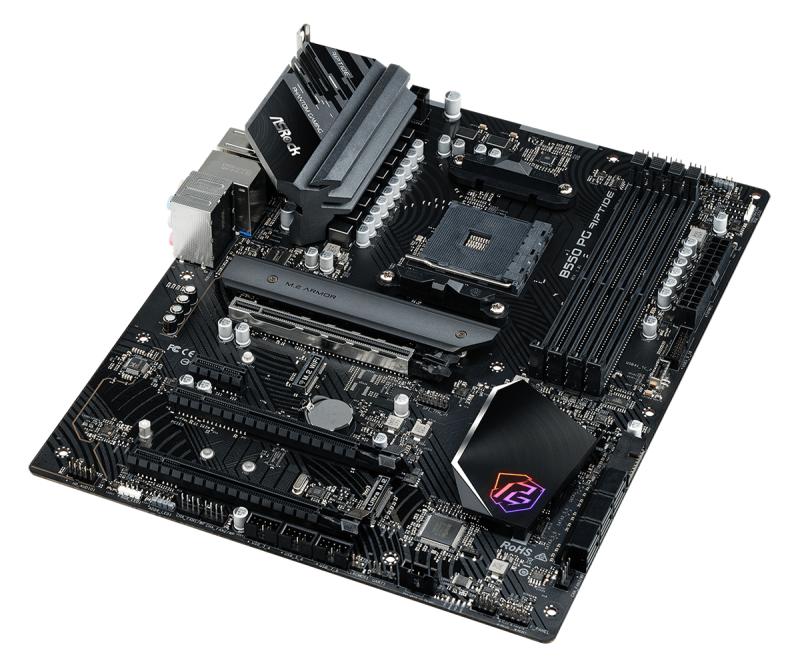

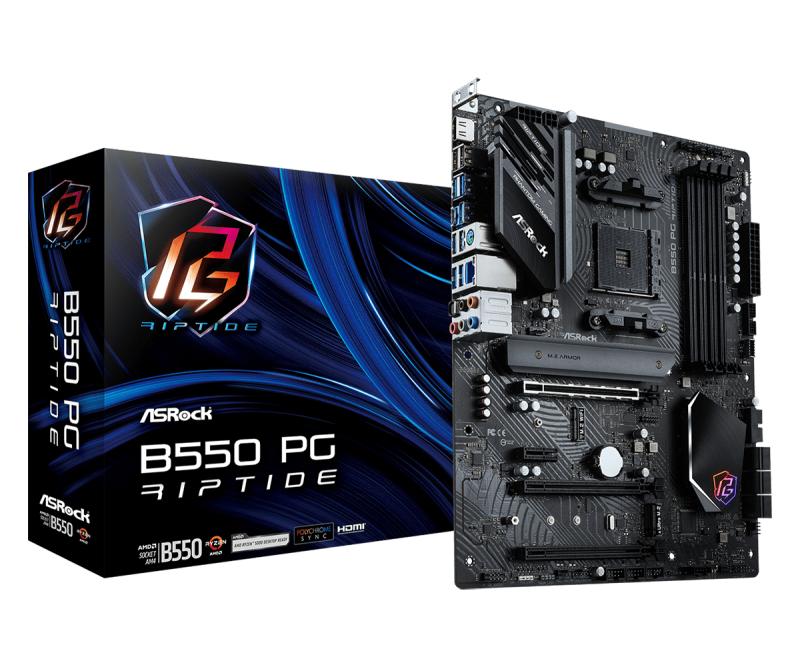

Placa de baza AsRock B550 PG RIPTIDE, Socket AM4
18 în stoc
974,99lei
18 în stoc
Placa de baza AsRock B550 PG RIPTIDE AM4 Supports AMD AM4 Socket Ryzen™ 3000, 3000 G-Series, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors 10 Phase, Digi Power, Dr. MOS Supports DDR4 4933+ (OC)* 1 PCIe 4.0 x16 Slot, 2 PCIe 3.0 x16 Slots, 1 PCIe 3.0 x1 Slot 1 M.2 Key-E for WiFi Graphics Outputs: HDMI 7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio 6 SATA3, 1 Hyper M.2 (PCIe Gen4 x4) 1 Ultra M.2 (PCIe Gen3 x4 & SATA3)** 3 USB 3.2 Gen2 (Front Type-C, Rear Type-A+C) 10 USB 3.2 Gen1 (4 Front, 6 Rear), 8 USB 2.0 (6 Front, 2 Rear) Killer E3100G 2.5G LAN https://www.asrock.com/MB/AMD/B550%20PG%20Riptide/index.asp
| Producator | ASROCK |
|---|---|
| Garantie | 36 |
| PCI | 0 |
| Serial-or-Paralel | No/No |
| Video-Connection | HDMI |
| Wi-Fi | No |
| CPU încorporat | No |
| Memory channels | Dual-channel |
| RAID support | Yes |
| Wake-on-LAN ready | Yes |
| HDMI | Da |
| Thunderbolt | Nu |
| Audio output channels | 7.1 channels |
| PCI Express x1 (Gen 3.x) slots | 1 |
| Motherboard chipset | AMD B550 |
| Audio chip | Realtek ALC897 |
| Supported storage drive types | HDD & SSD |
| Supported memory types | DDR4-SDRAM |
| Number of M.2 (M) slots | 2 |
| Processor socket | Socket AM4 |
| HDMI version | 2.1 |
| HDCP | Yes |
| S/PDIF out port | Yes |
| Digital audio optical out | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| Maximum internal memory | 128 GB |
| Ethernet LAN | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| Maximum resolution | 4096 x 2160 pixels |
| VGA (D-Sub) ports quantity | 0 |
| DirectX version | 12.0 |
| Drivers included | Yes |
| DVI-D ports quantity | 0 |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Unbuffered memory | Yes |
| Supported storage drive interfaces | M.2, SATA III |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| PS/2 ports quantity | 1 |
| Motherboard chipset family | AMD |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| Maximum number of SMP processors | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| TPM connector | Yes |
| 12V power connector | Yes |
| RGB LED pin header | Yes |
| Motherboard form factor | ATX |
| ECC сompatibility | Non-ECC |
| USB 2.0 connectors | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Number of chassis fan connectors | 5 |
| Thunderbolt headers | 1 |
| RAID levels | 0, 1, 10 |
| Number of SATA III connectors | 6 |
| PCI Express x16 slots | 3 |
| PC health monitoring | CPU, Fan, Temperature, Voltage |
| ACPI version | 5.1 |
| System Management BIOS (SMBIOS) version | 2.3 |
| Compatible processor series | AMD Ryzen 3000 Series, AMD Ryzen 5000 Series |
| Model Chipset | B550 |
| Format | ATX |
| Tip slot interfata grafica | N/A |
| Chipset audio integrat | Realtek |
| Canale audio | 7.1 |
| Wireless | Nu |
| Bluetooth | Nu |
| Sloturi M.2 | 2 |
| RJ-45 LAN | 1 |
| Gaming | Nu |
| Soclu Procesor | Socket AM4 |
| Tip Memorie | DDR4 |
| Numar sloturi memorie | 4 |
| Memorie maxima | 128 GB |
| USB Type-C | Da |
| Parallel processing technology support | CrossFireX, Quad-GPU CrossFireX |
| LAN controller | Killer E3100G |
