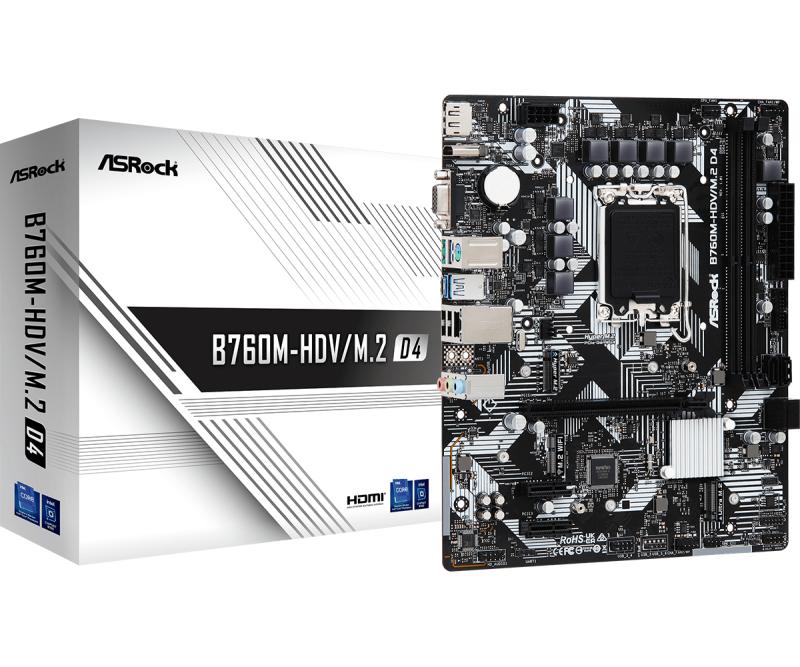

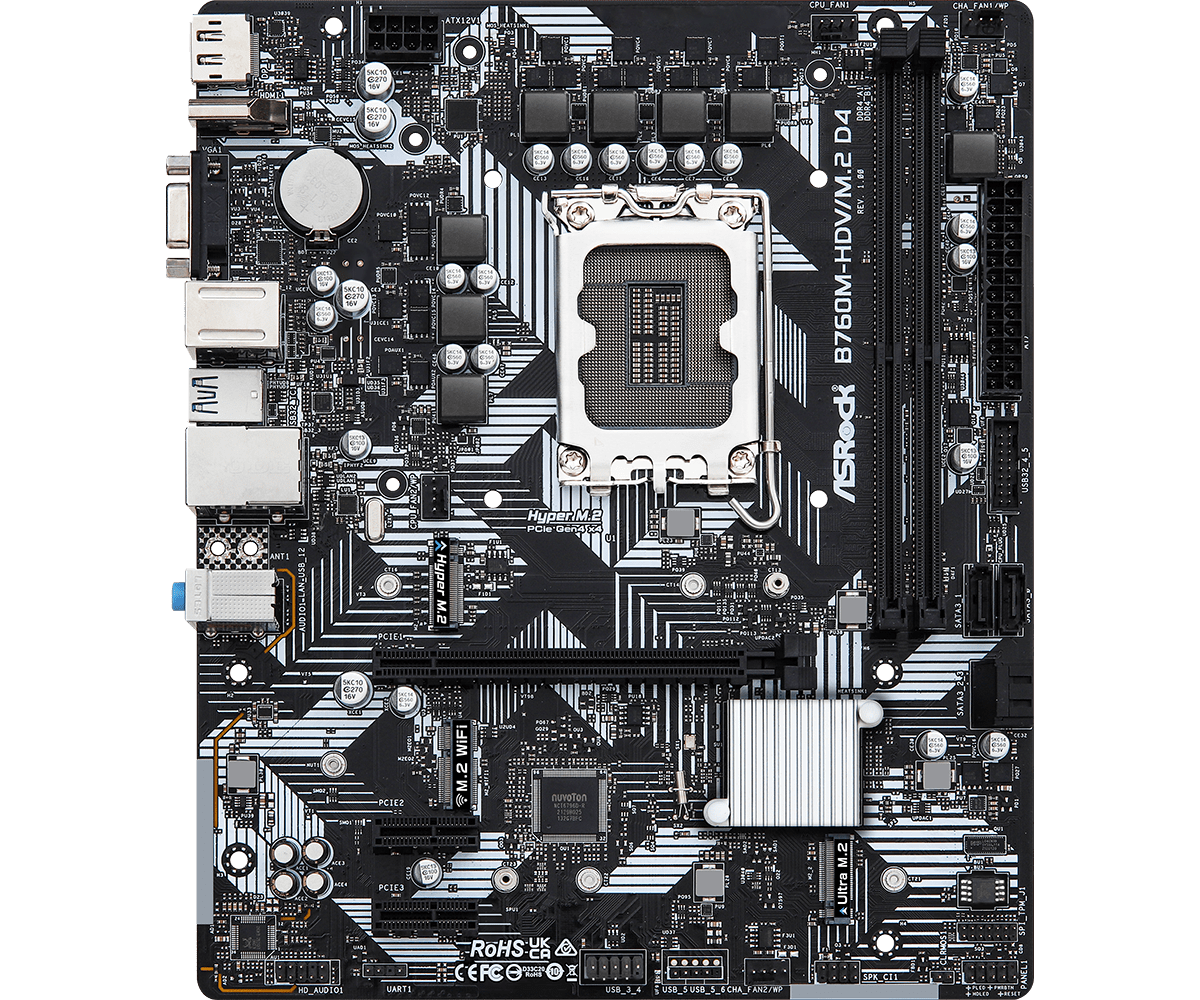

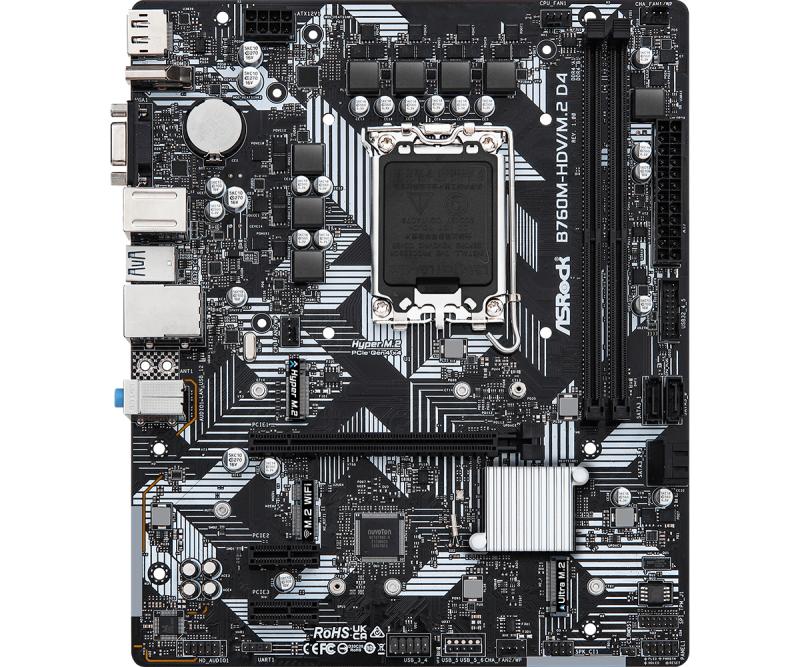

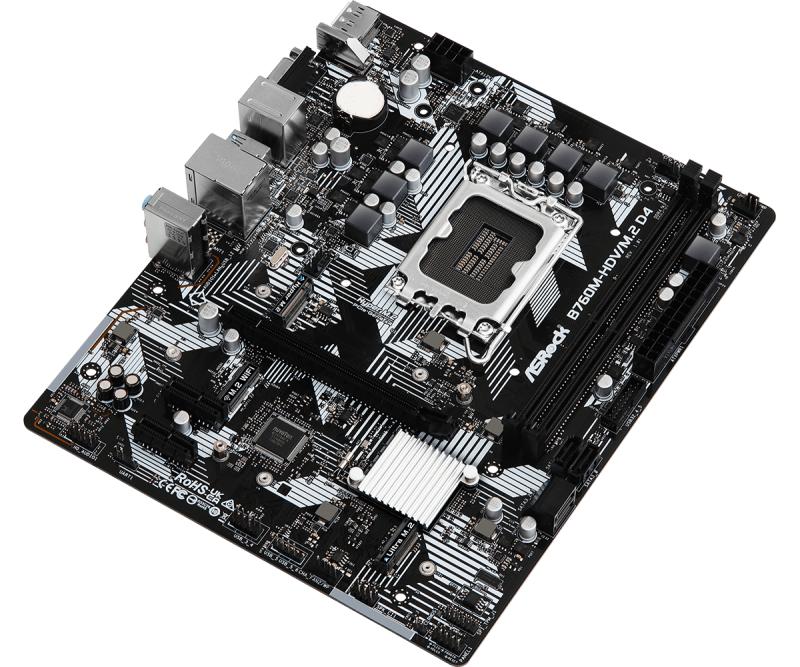

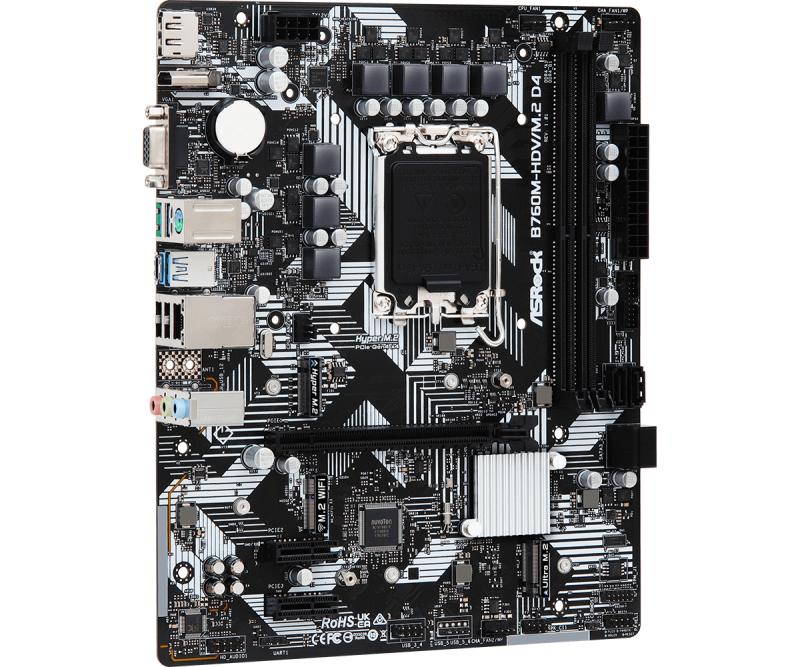

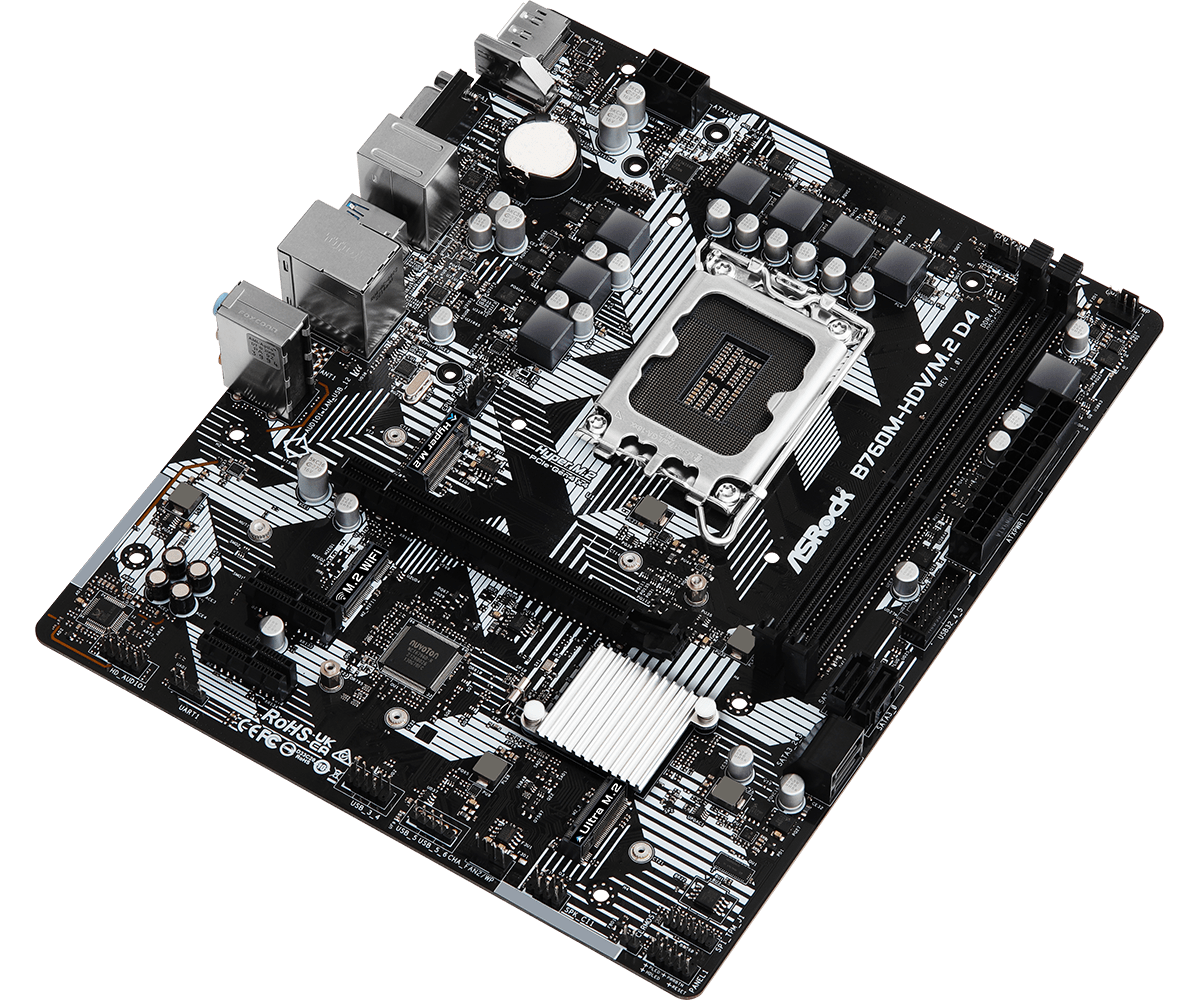

Placa de baza Asrock B760M-HDV/M.2 DDR4, 2x DDR4
Producator:
Asrock
Disponibilitate:
Stoc epuizat
719,99lei
Stoc epuizat

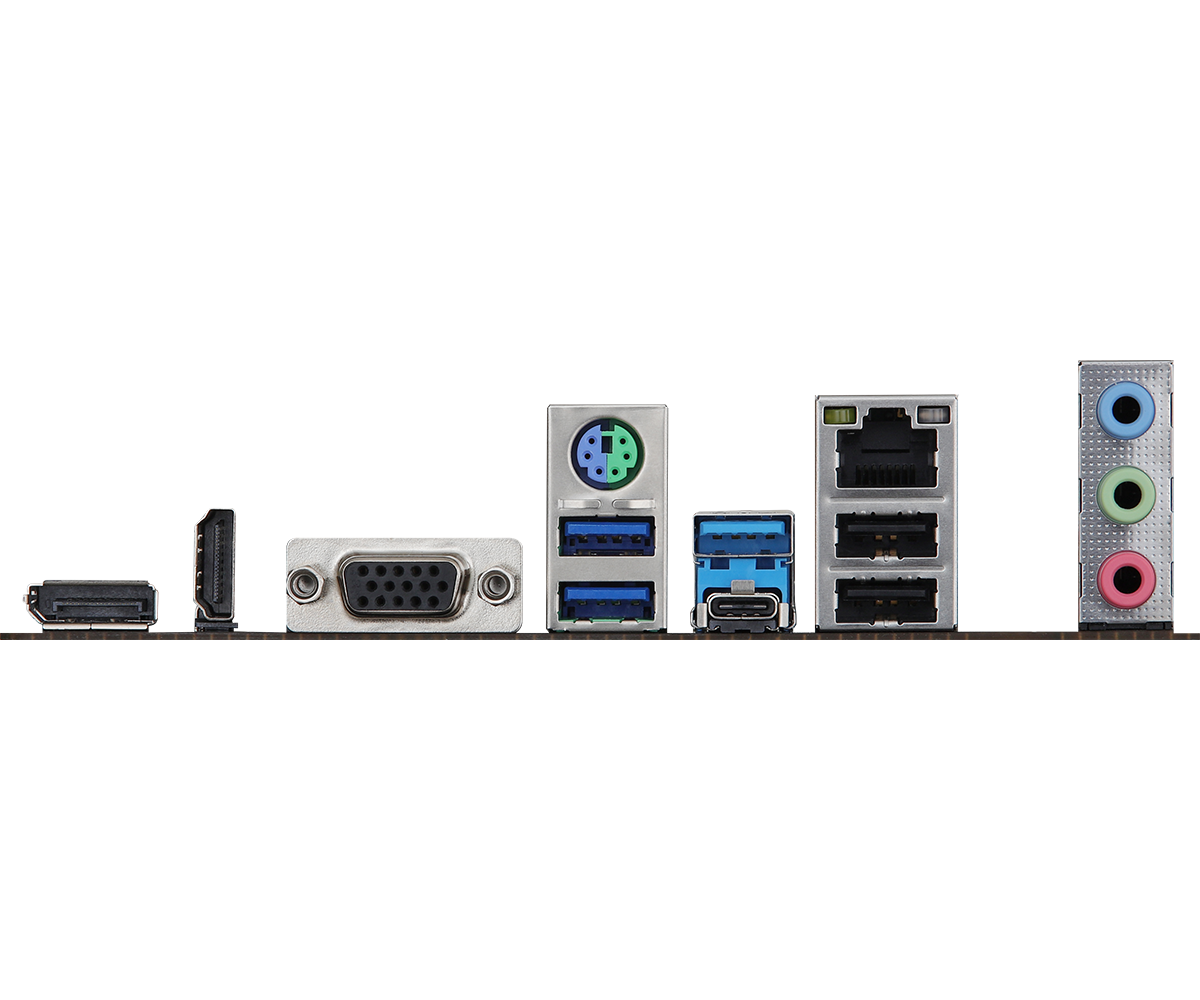

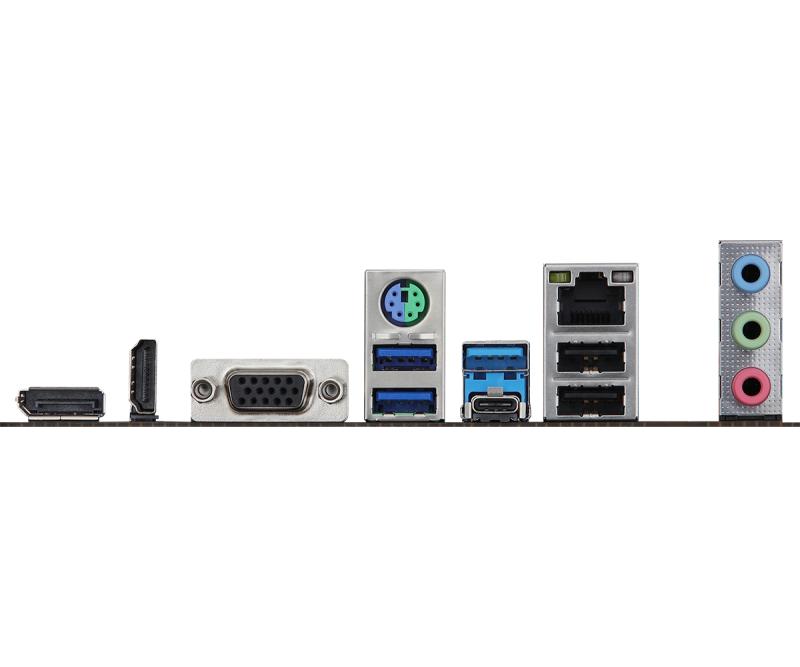

Placa de baza Asrock B760M-HDV/M.2 DDR4, 2x DDR4, frecventa maxima 5333MHz, 1x DisplayPort, 1x HDMI, 1x PCIe x16, 2x PCIe x1, 2x M.2, 4x SATA3 6Gbs, LAN 1Gbps, microATX
| Producator | ASROCK |
|---|---|
| Garantie | 36 |
| PCI | 0 |
| Serial-or-Paralel | No/No |
| Video-Connection | HDMI/DP |
| Wi-Fi | No |
| Onboard-CPU | No |
| Memory channels | Dual-channel |
| RAID support | Yes |
| HDMI | Da |
| Thunderbolt | Nu |
| PCI Express x1 (Gen 3.x) slots | 2 |
| Audio output channels | 7.1 channels |
| Line-in | Yes |
| Audio chip | Realtek ALC897 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Number of memory slots | 2 |
| Supported memory types | DDR4-SDRAM |
| LAN controller | Realtek RTL8111H |
| Number of M.2 (M) slots | 1 |
| VGA (D-Sub) ports quantity | 1 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| HDCP | Yes |
| Microphone in | Yes |
| HDMI ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| Ethernet LAN | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| Maximum internal memory | 64 GB |
| Parallel processing technology support | Not supported |
| DVI-D ports quantity | 0 |
| Memory slots type | DIMM |
| Unbuffered memory | Yes |
| Supported storage drive interfaces | M.2, SATA III |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 0 |
| Number of SATA III connectors | 4 |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| EPS power connector (8-pin) | Yes |
| PS/2 ports quantity | 1 |
| Motherboard form factor | micro ATX |
| BIOS type | UEFI AMI |
| Processor socket | LGA 1700 |
| Maximum number of SMP processors | 1 |
| RAID levels | 0, 1, 5, 10 |
| Front panel connector | Yes |
| TPM connector | Yes |
| Motherboard chipset family | Intel |
| ECC сompatibility | Non-ECC |
| USB 2.0 connectors | 3 |
| Motherboard chipset | Intel B760 |
| BIOS memory size | 128 Mbit |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Chassis intrusion connector | Yes |
| Model Chipset | B760 |
| Soclu Procesor | Socket 1700 |
| Numar sloturi memorie | 2 |
| Memorie maxima | 64 GB |
| Chipset audio integrat | Realtek |
| Canale audio | 7.1 |
| Wireless | Nu |
| Bluetooth | Nu |
| Sloturi M.2 | 2 |
| RJ-45 LAN | 1 |
| Gaming | Nu |
| Format | Micro-ATX (mATX) |
| Tip Memorie | DDR4 |
| Tip slot interfata grafica | PCIe 4.0 x16 |
| USB Type-C | Da |
| Compatible processor series | Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9 |
| Supported memory clock speeds | 3200,4400,5333 MHz |
