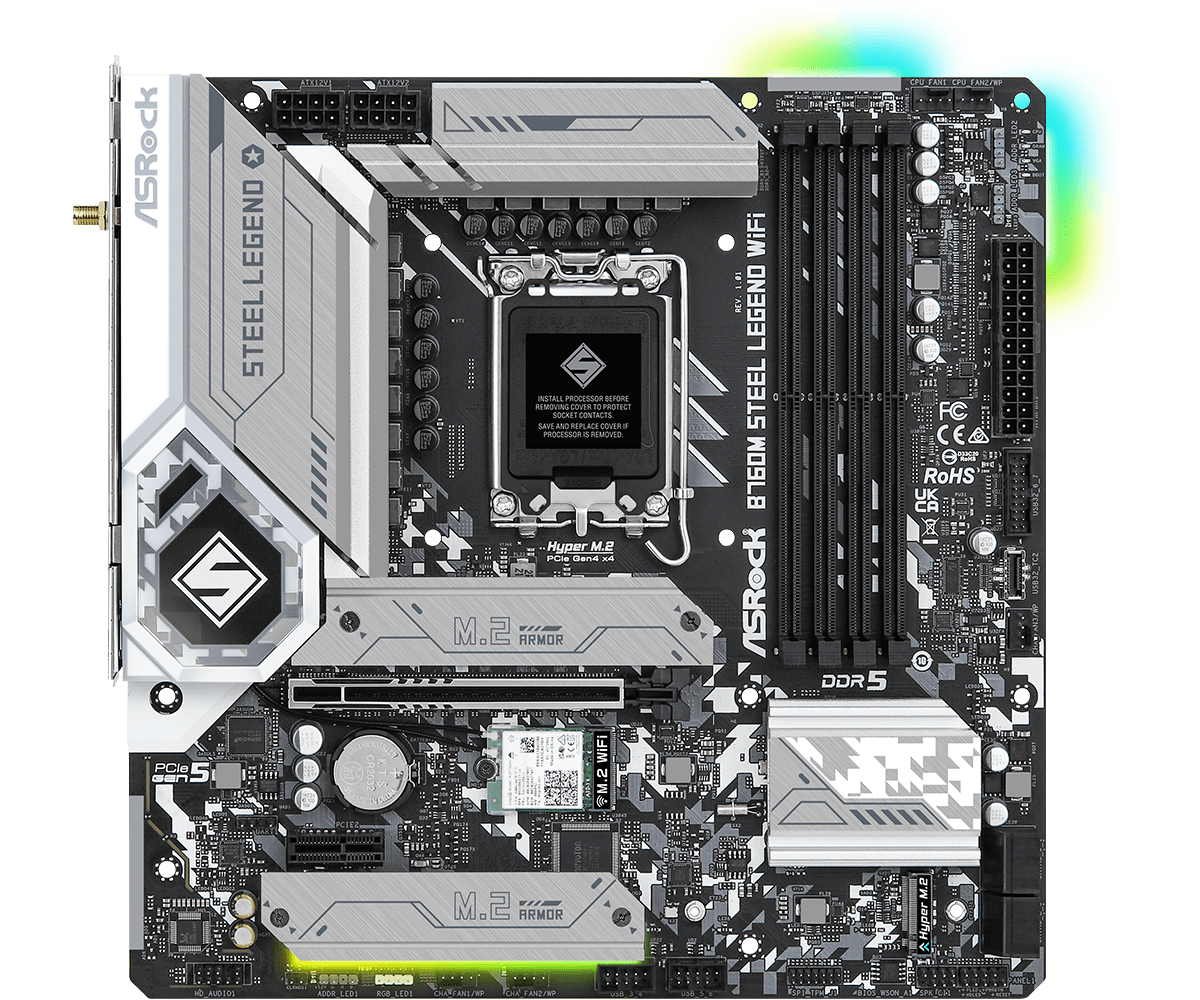

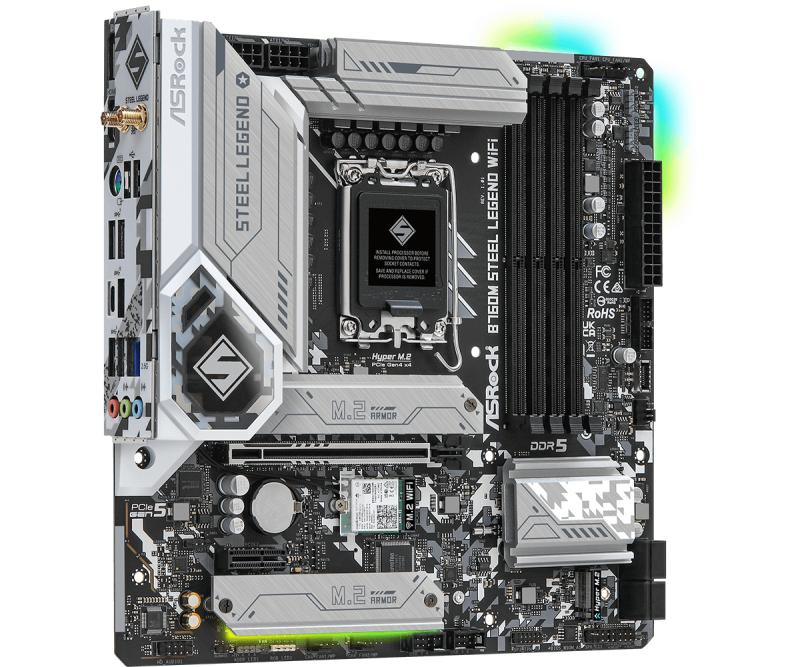

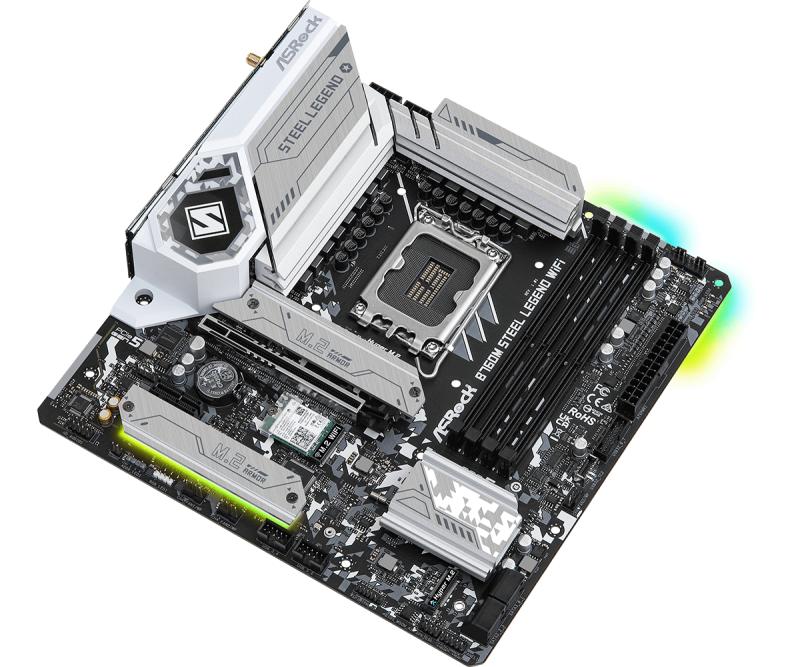

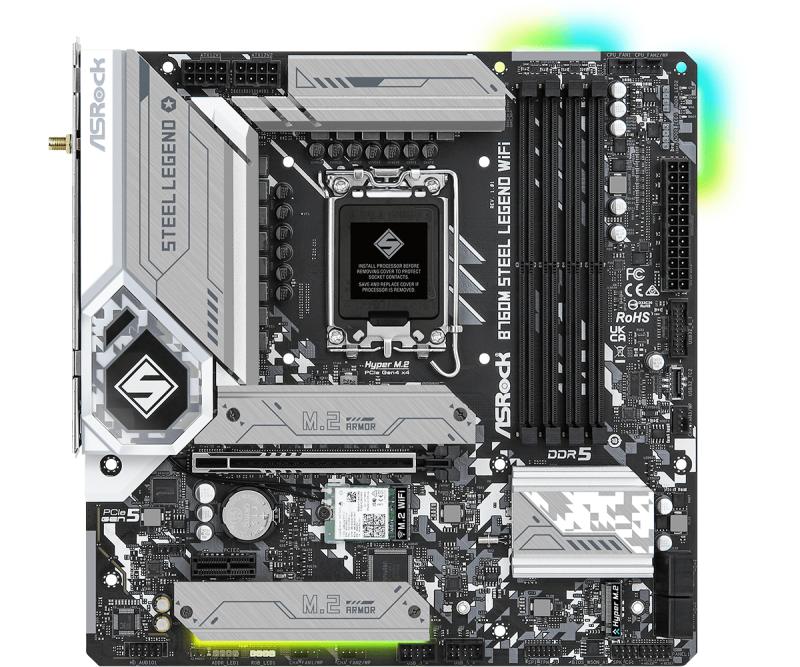

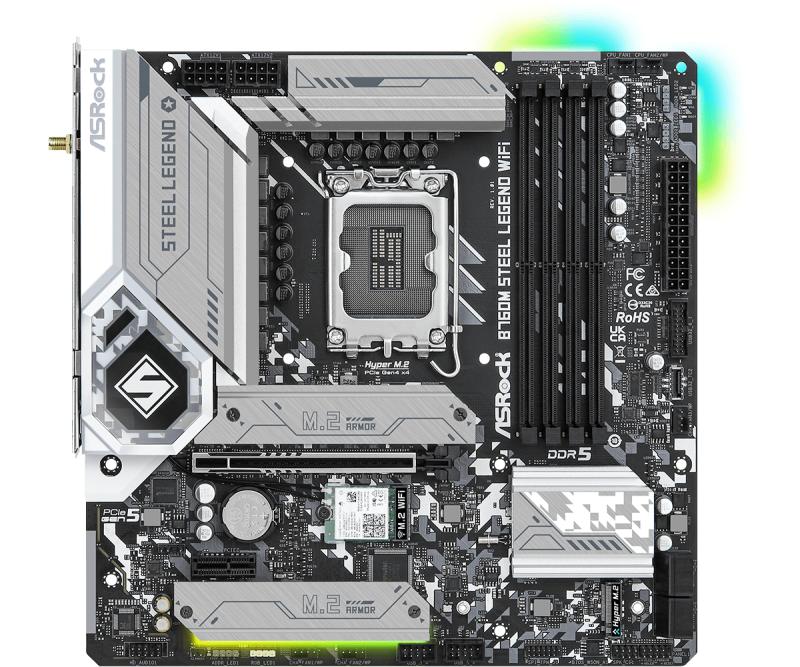

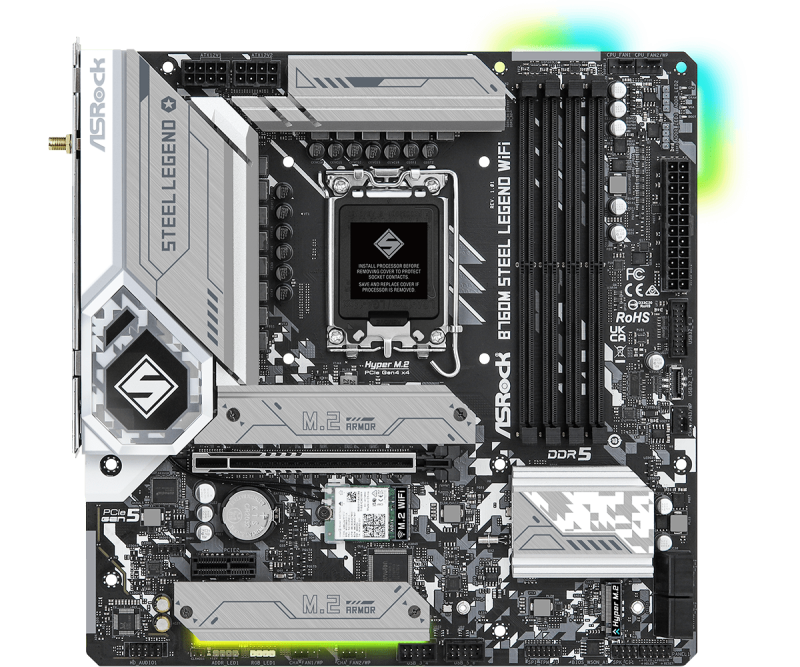

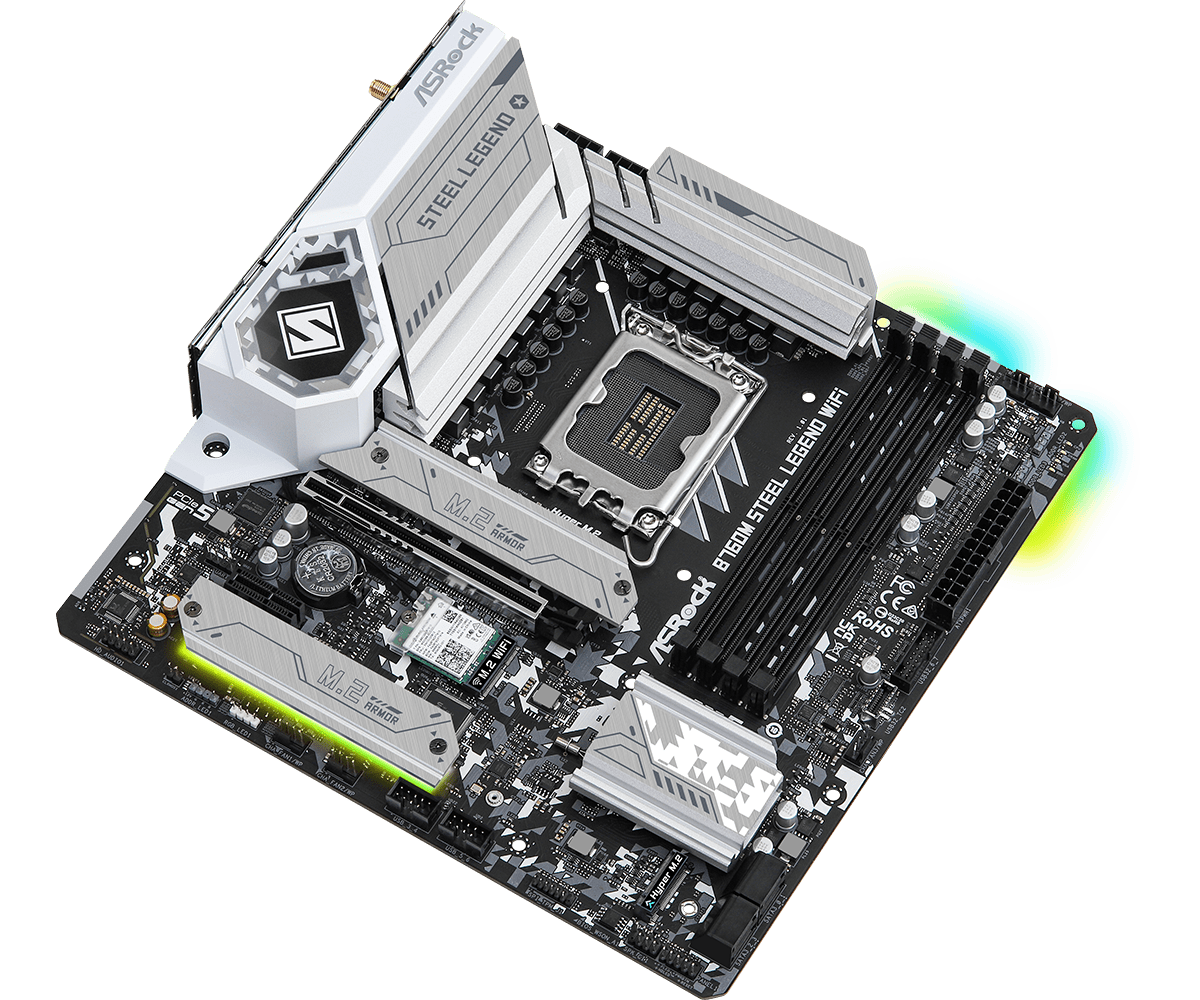

Placa de baza Asrock B760M STEEL LEGEND LGA1700, 4x DDR5
Producator:
Asrock
Disponibilitate:
Stoc epuizat
1.147,00lei
Stoc epuizat
Placa de baza Asrock B760M STEEL LEGEND LGA1700, 4x DDR5, frecventa maxima 7200MHz, 1x DisplayPort, 1x HDMI, 1x PCIe x16, 1x PCIe x1, 3x M.2, 4x SATA3 6Gbs, LAN 2.5Gbps, WIFI, Bluetooth 5.3, microATX
| Producator | ASROCK |
|---|---|
| Garantie | 36 |
| PCI | 0 |
| Serial-or-Paralel | No/No |
| Video-Connection | HDMI/DP |
| Wi-Fi | Yes |
| Onboard-CPU | No |
| Memory channels | Dual-channel |
| HDMI | Da |
| Thunderbolt | Nu |
| Audio output channels | 7.1 channels |
| Line-in | Yes |
| PCI Express x16 (Gen 5.x) slots | 1 |
| Audio chip | Realtek ALC897 |
| Supported storage drive types | HDD & SSD |
| Number of M.2 (M) slots | 1 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| Microphone in | Yes |
| HDMI ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| Maximum internal memory | 128 GB |
| Ethernet LAN | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| VGA (D-Sub) ports quantity | 0 |
| DVI-D ports quantity | 0 |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Unbuffered memory | Yes |
| Supported storage drive interfaces | M.2, SATA III |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 0 |
| Number of SATA III connectors | 4 |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| PS/2 ports quantity | 1 |
| Motherboard form factor | micro ATX |
| BIOS type | UEFI AMI |
| Processor socket | LGA 1700 |
| Maximum number of SMP processors | 1 |
| Supported memory types | DDR5-SDRAM |
| TPM connector | Yes |
| RGB LED pin header | Yes |
| Motherboard chipset family | Intel |
| ECC сompatibility | Non-ECC |
| Motherboard chipset | Intel B760 |
| BIOS memory size | 128 Mbit |
| PCI Express x1 (Gen 4.x) slots | 1 |
| LAN controller | Dragon RTL8125BG |
| Model Chipset | B760 |
| Soclu Procesor | Socket 1700 |
| Tip Memorie | DDR5 |
| Tip slot interfata grafica | PCIe 5.0 x16 |
| Chipset audio integrat | Realtek |
| Canale audio | 7.1 |
| Wireless | Da |
| Bluetooth | Da |
| Sloturi M.2 | 3 |
| RJ-45 LAN | 1 |
| Gaming | Nu |
| Format | Micro-ATX (mATX) |
| Numar sloturi memorie | 4 |
| Memorie maxima | 128 GB |
| USB Type-C | Da |
| Compatible processor series | Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9 |
| PCI Express x4 (Gen 1.x) slots | 1 |
Nu există recenzii încă.
