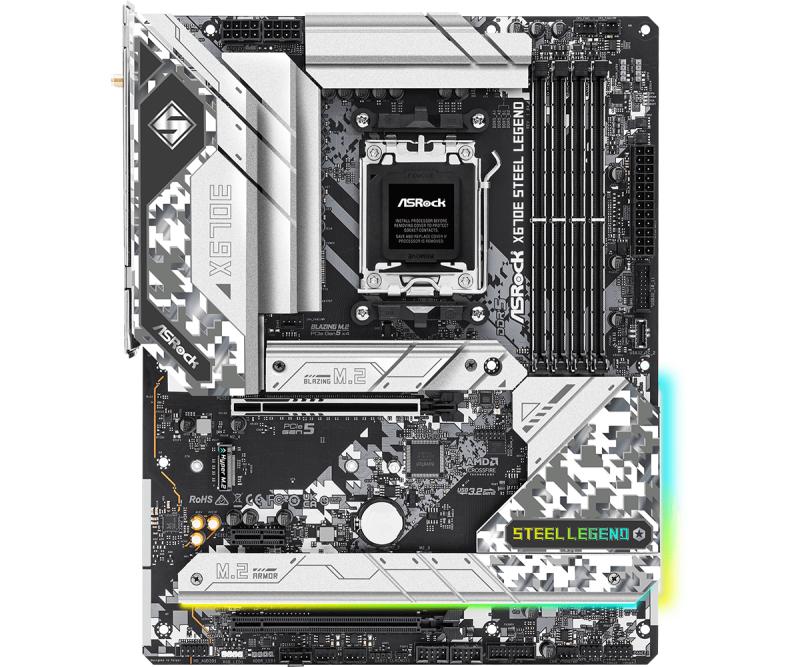

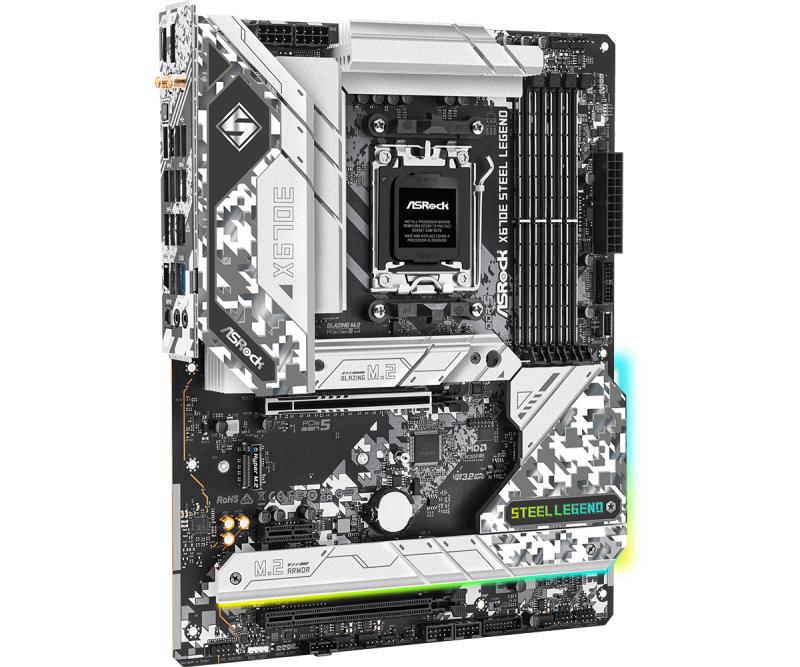

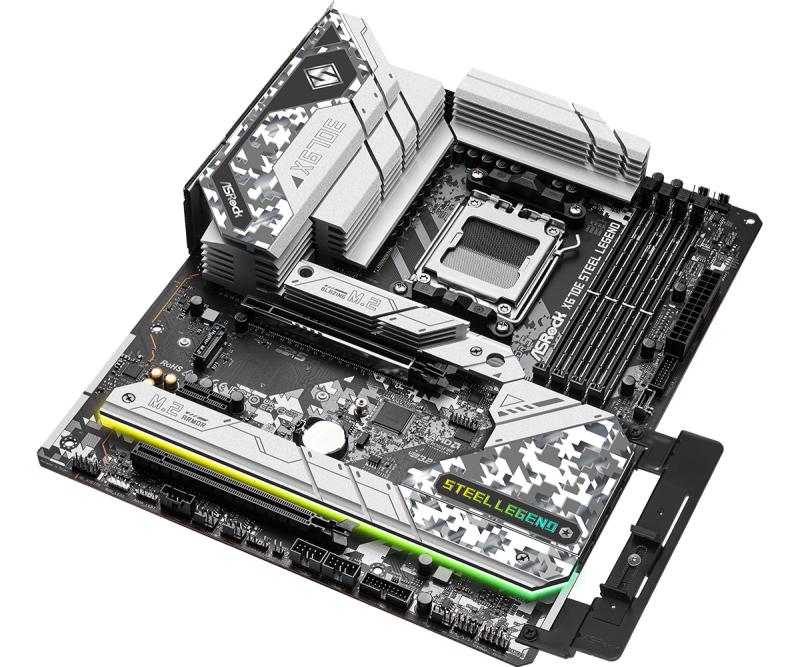

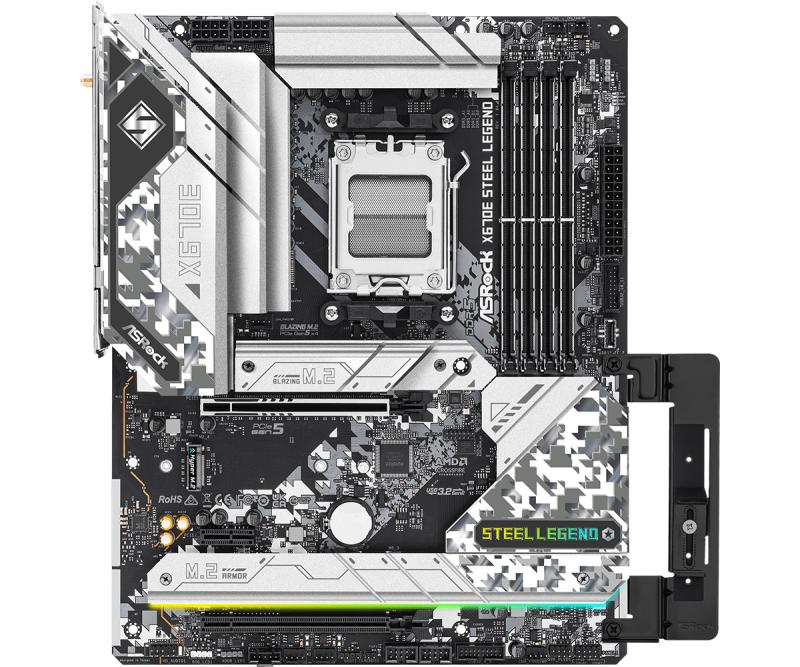

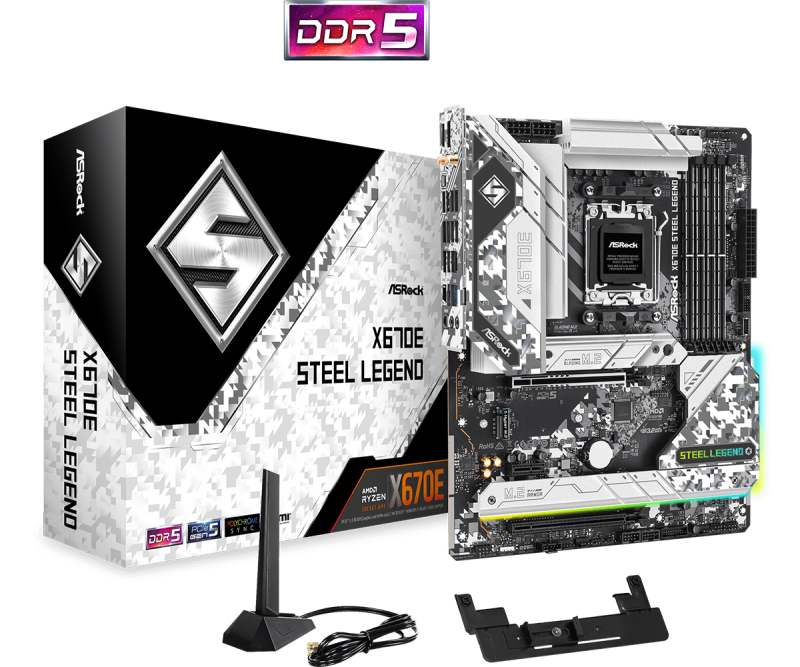

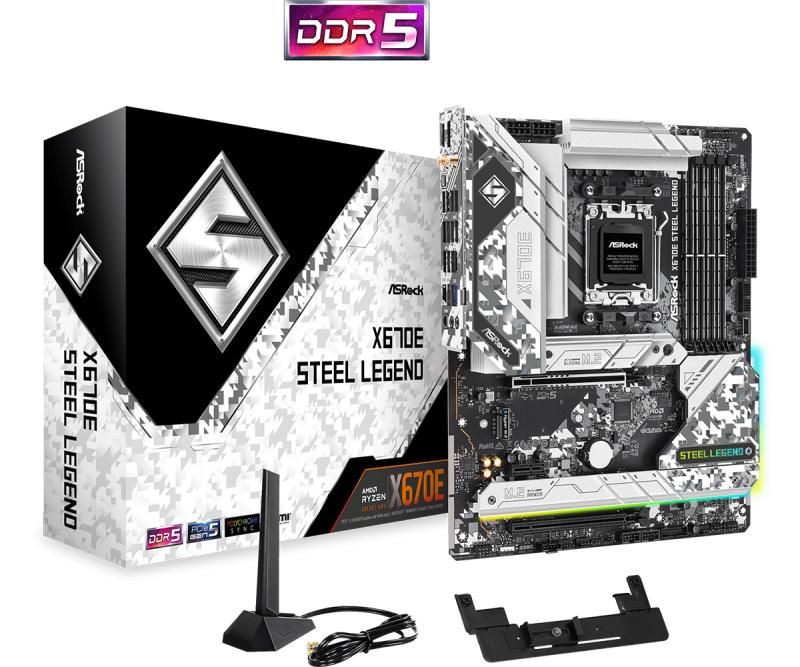

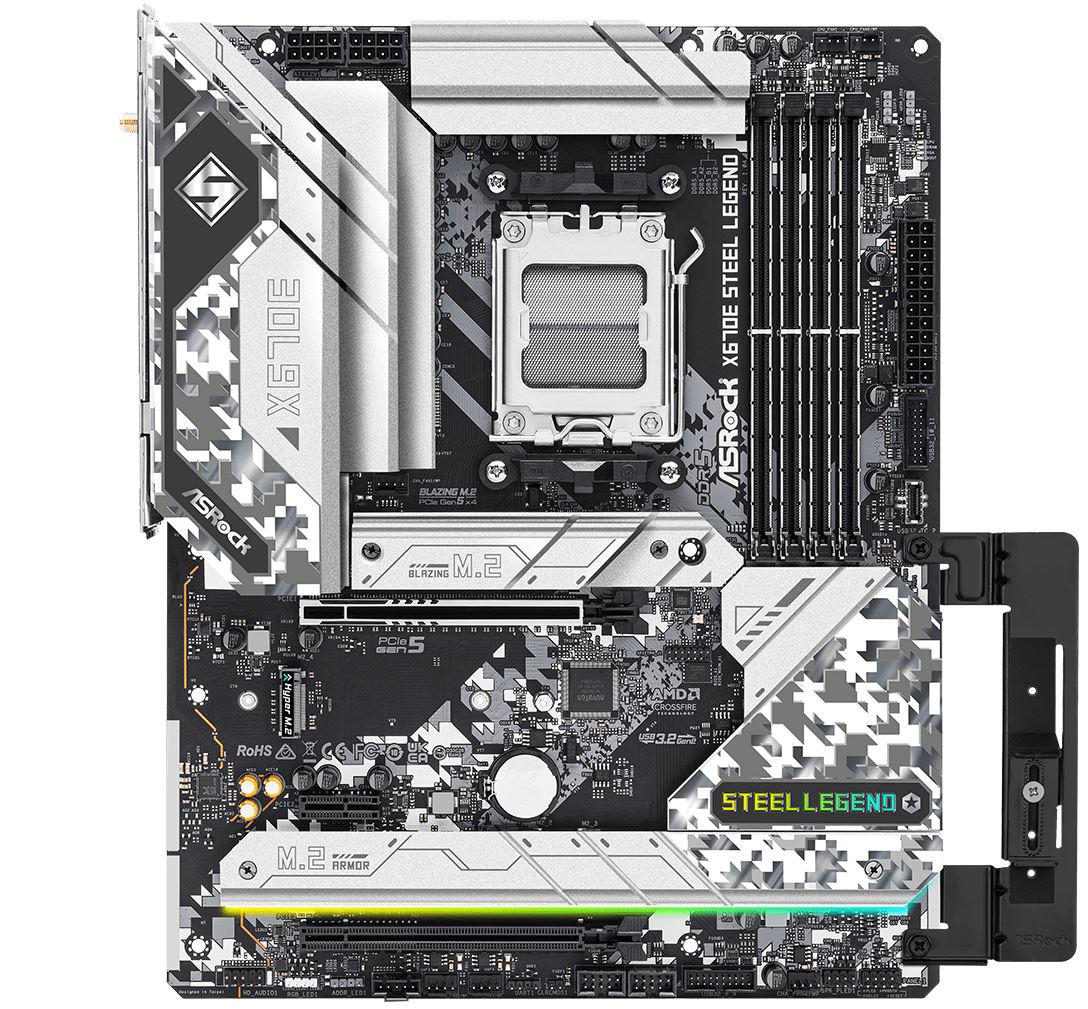

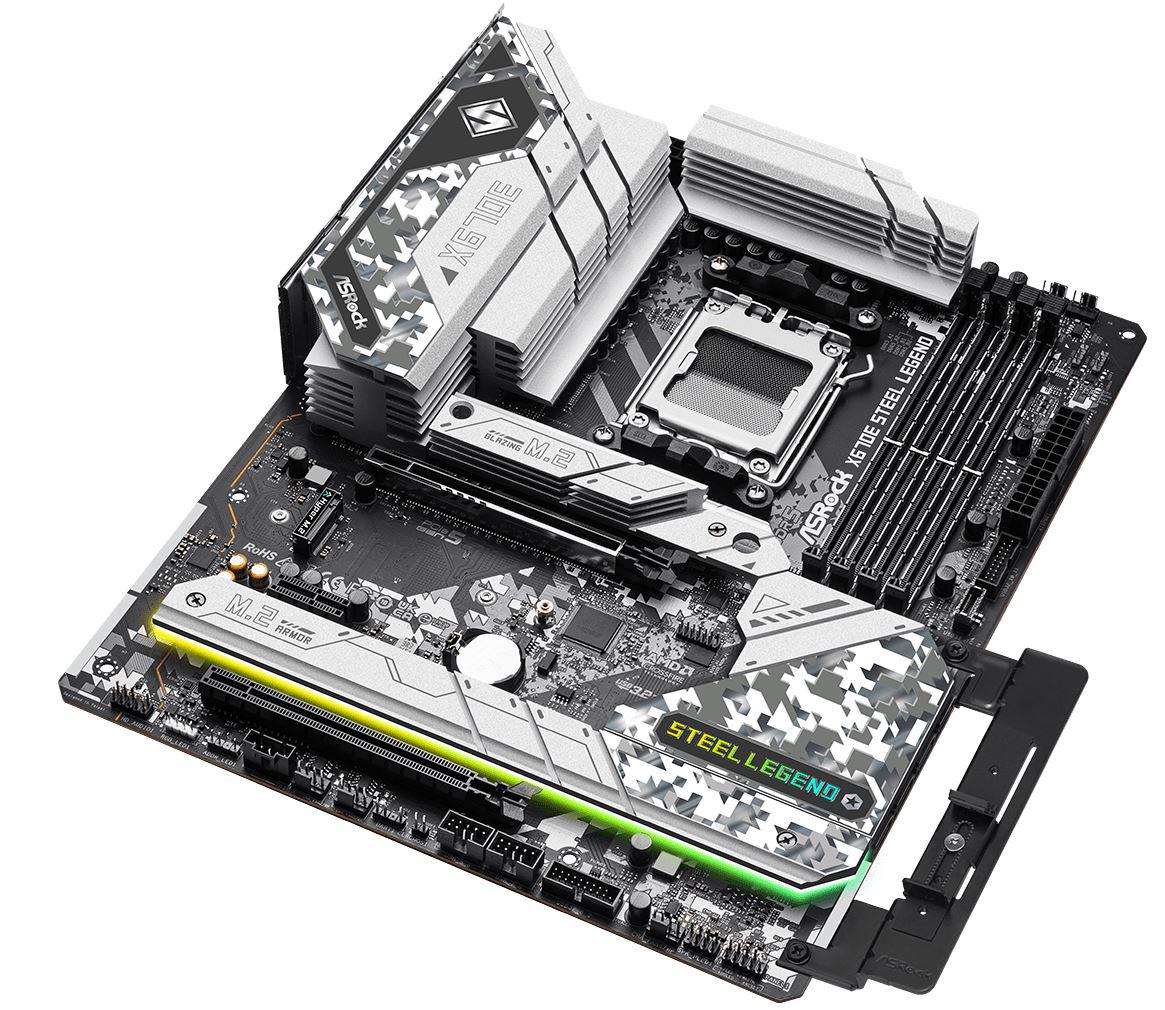

Placa de baza AsRock Socket AM5, X670E Steel Legend
Stoc epuizat
2.363,99lei
Stoc epuizat

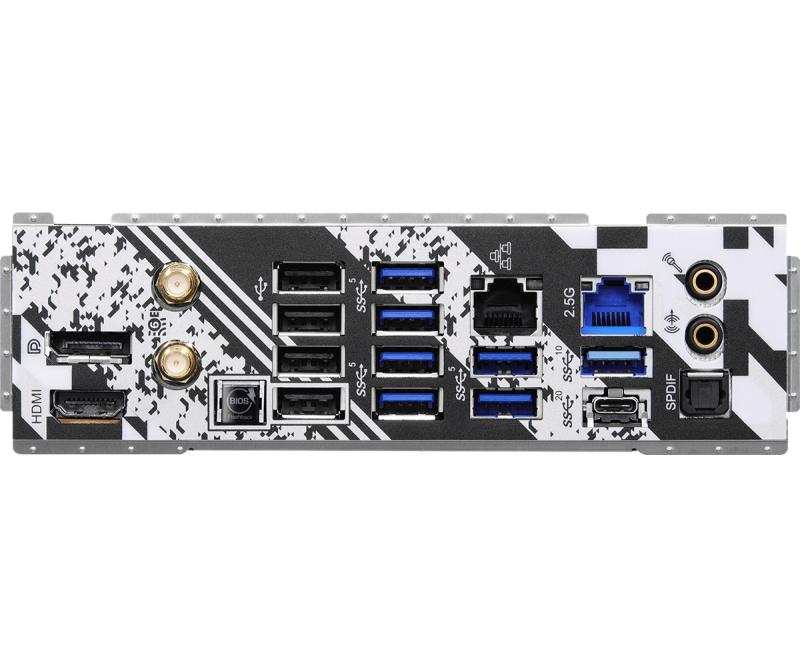

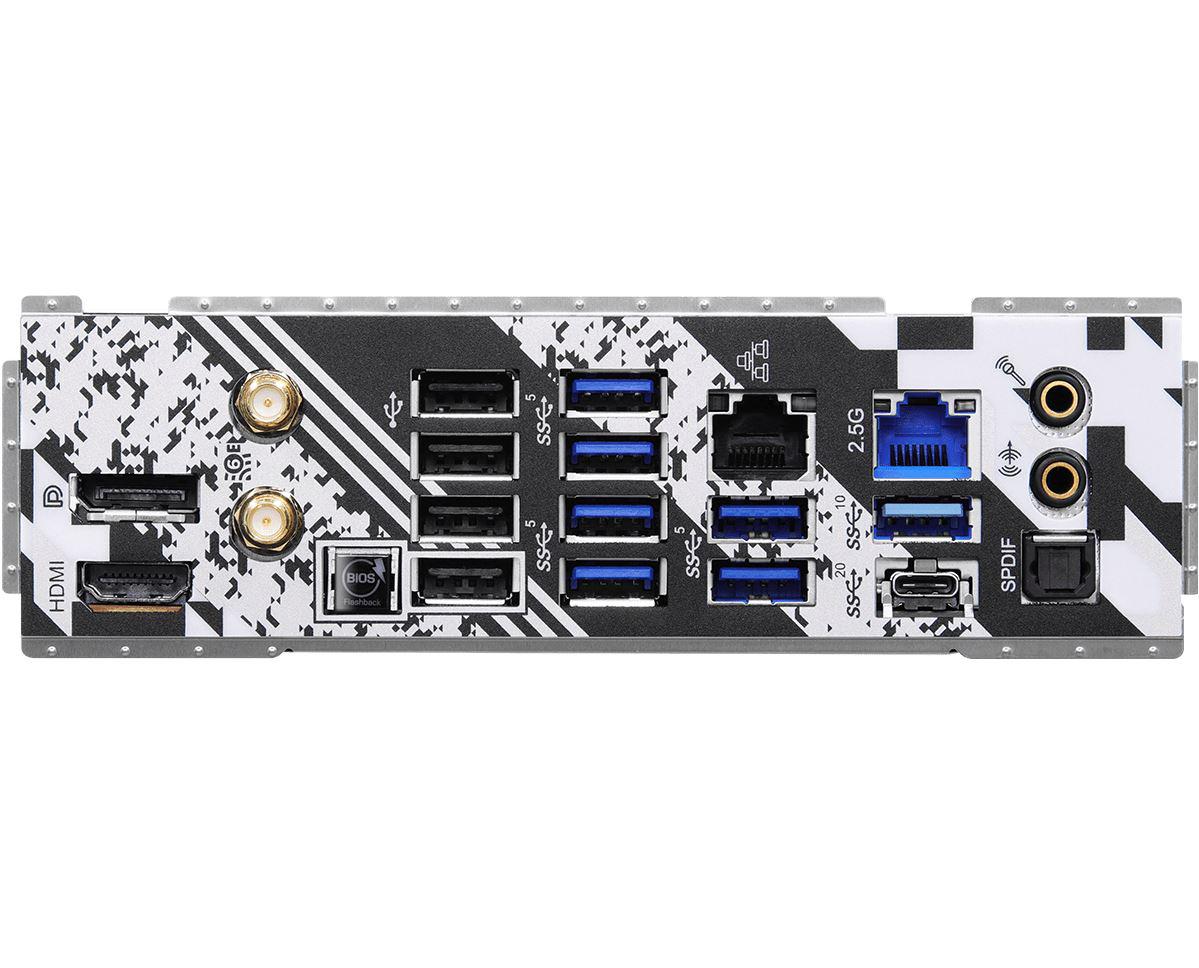

Placa de baza AsRock Socket AM5, X670E Steel Legend Supports AMD Ryzen™ 7000 Series Processors 16+2+1 Phase Power Design, SPS 4 x DDR5 DIMMs, supports up to 6600+(OC) 1 PCIe 5.0 x16, 1 PCIe 3.0 x16, 1 PCIe 3.0 x1 Graphics Output Options: 1 HDMI, 1 DisplayPort 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec), Nahimic Audio 1 Blazing M.2(PCIe Gen5x4), 3 Hyper M.2 (PCIe Gen4x4), 4 SATA3 1 USB 3.2 Gen2 Type-A (Rear), 10 USB 3.2 Gen1 (6 Rear, 4 Front), 8 USB 2.0 (4 Rear, 4 Front) Realtek 2.5G LAN, Realtek 1G LAN 802.11ax Wi-Fi 6E + Bluetooth
| Producator | ASROCK |
|---|---|
| Garantie | 36 |
| PCI | 0 |
| Serial-or-Paralel | No/No |
| Video-Connection | HDMI/DP |
| Wi-Fi | Yes |
| Onboard-CPU | No |
| Memory channels | Dual-channel |
| RAID support | Yes |
| HDMI | Da |
| Thunderbolt | Nu |
| PCI Express x16 (Gen 3.x) slots | 1 |
| Audio output channels | 7.1 channels |
| PCI Express x1 (Gen 3.x) slots | 1 |
| Line-in | Yes |
| PCI Express x16 (Gen 5.x) slots | 1 |
| Supported storage drive types | HDD & SSD |
| Cooling type | Passive |
| USB4 Gen 2x2 ports quantity | 1 |
| DisplayPorts quantity | 1 |
| HDMI ports quantity | 1 |
| Headphone outputs | 1 |
| S/PDIF out port | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| Maximum internal memory | 128 GB |
| Ethernet LAN | Yes |
| DVI-D ports quantity | 0 |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Unbuffered memory | Yes |
| Supported storage drive interfaces | M.2, SATA III |
| USB 2.0 connectors | 2 |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| EPS power connector (8-pin) | Yes |
| Motherboard chipset family | AMD |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| Supported memory types | DDR5-SDRAM |
| ECC сompatibility | ECC & Non-ECC |
| Front panel connector | Yes |
| RGB LED pin header | Yes |
| Motherboard form factor | ATX |
| S/PDIF out connector | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| RAID levels | 0, 1, 10 |
| Processor socket | Socket AM5 |
| Number of chassis fan connectors | 4 |
| Motherboard chipset | AMD X670 |
| Number of M.2 (M) slots | 4 |
| Compatible processor series | AMD Ryzen 7000 Series |
| Parallel processing technology support | Crossfire |
| Audio chip | Realtek ALC1220 |
| Audio connector | Yes |
| Model Chipset | X670E |
| Format | ATX |
| Soclu Procesor | Socket AM5 |
| Tip Memorie | DDR5 |
| Tip slot interfata grafica | PCIe 5.0 x16 |
| Chipset audio integrat | Realtek |
| Canale audio | 7.1 |
| Wireless | Da |
| Bluetooth | Da |
| Sloturi M.2 | 4 |
| RJ-45 LAN | 2 |
| Gaming | Nu |
| Numar sloturi memorie | 4 |
| Memorie maxima | 128 GB |
| USB Type-C | Da |
| Supported memory clock speeds | 6600 MHz |
| LAN controller | Dragon RTL8125BG, Realtek RTL8111 |
