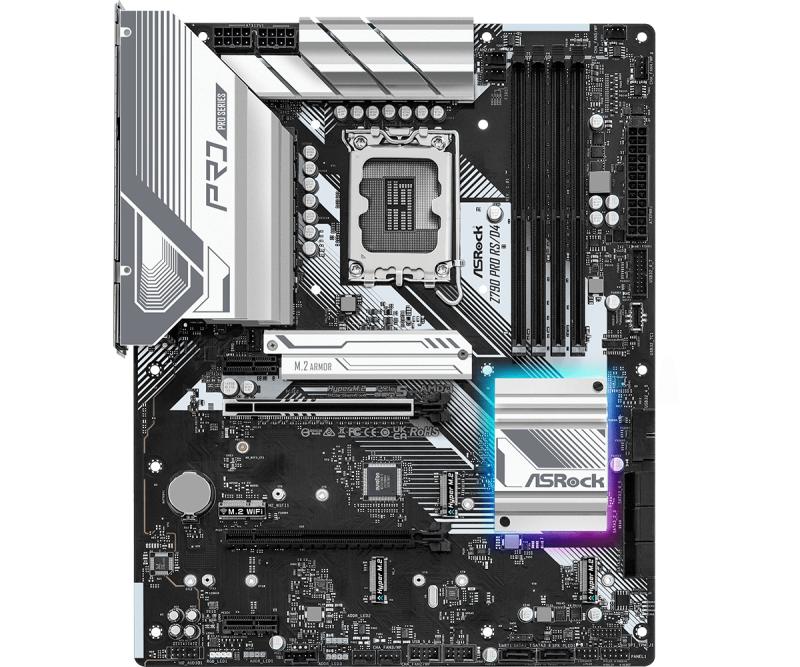

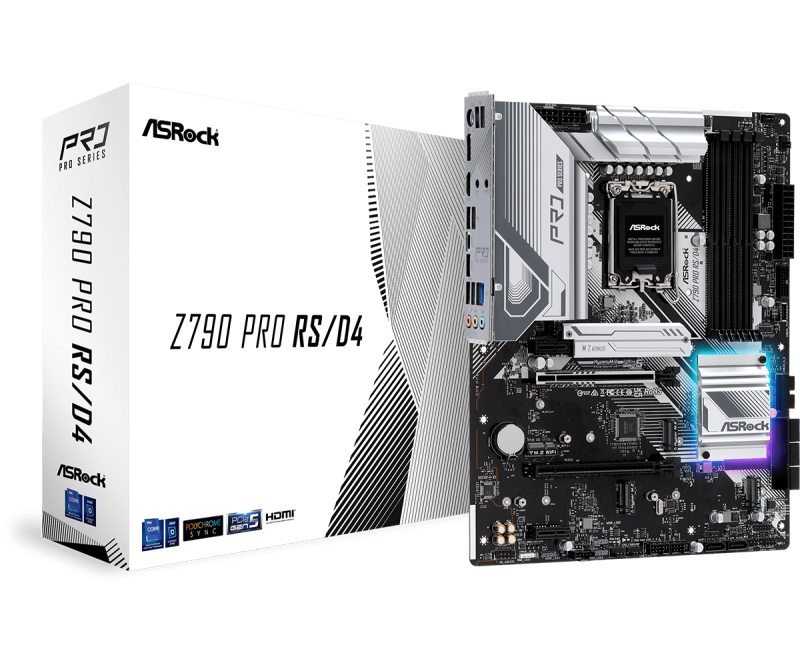

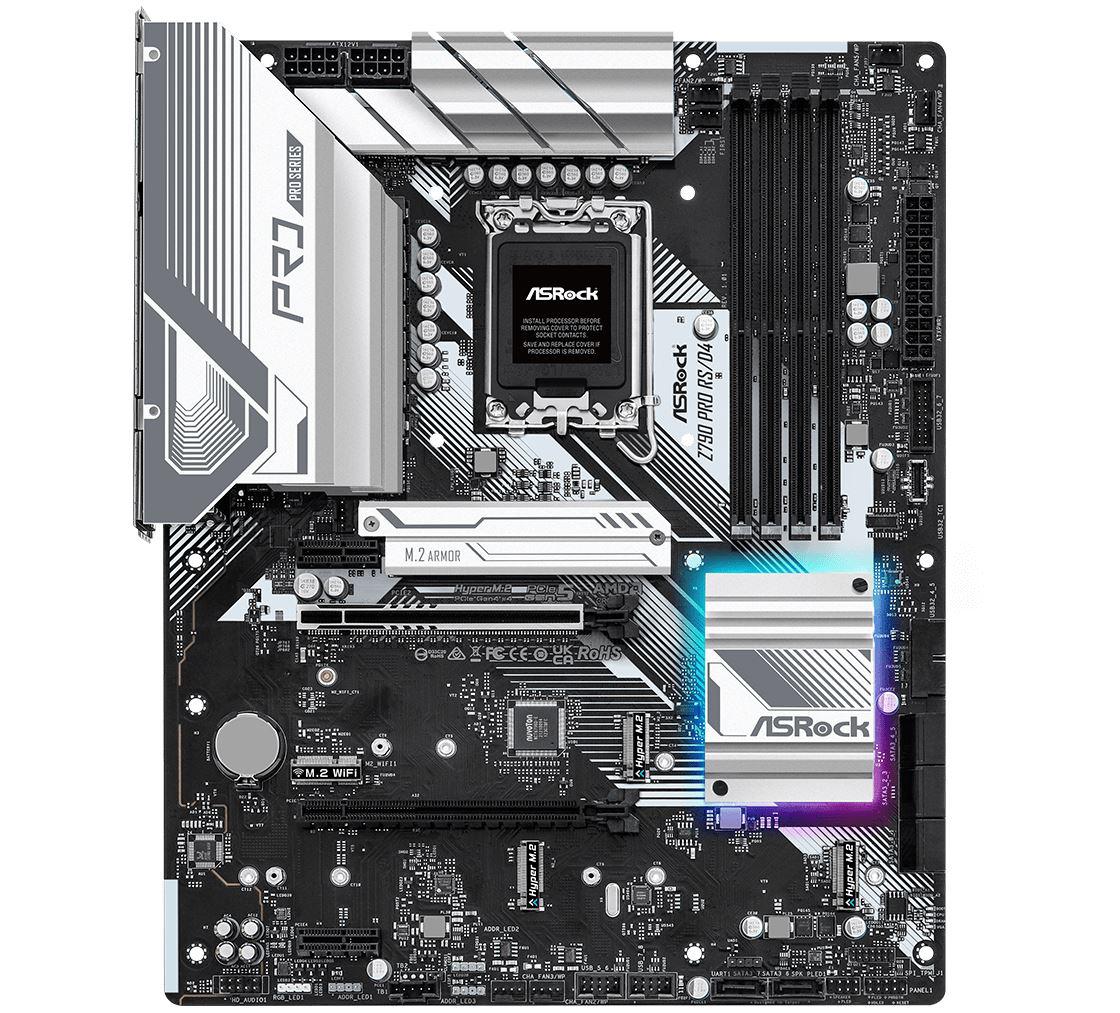

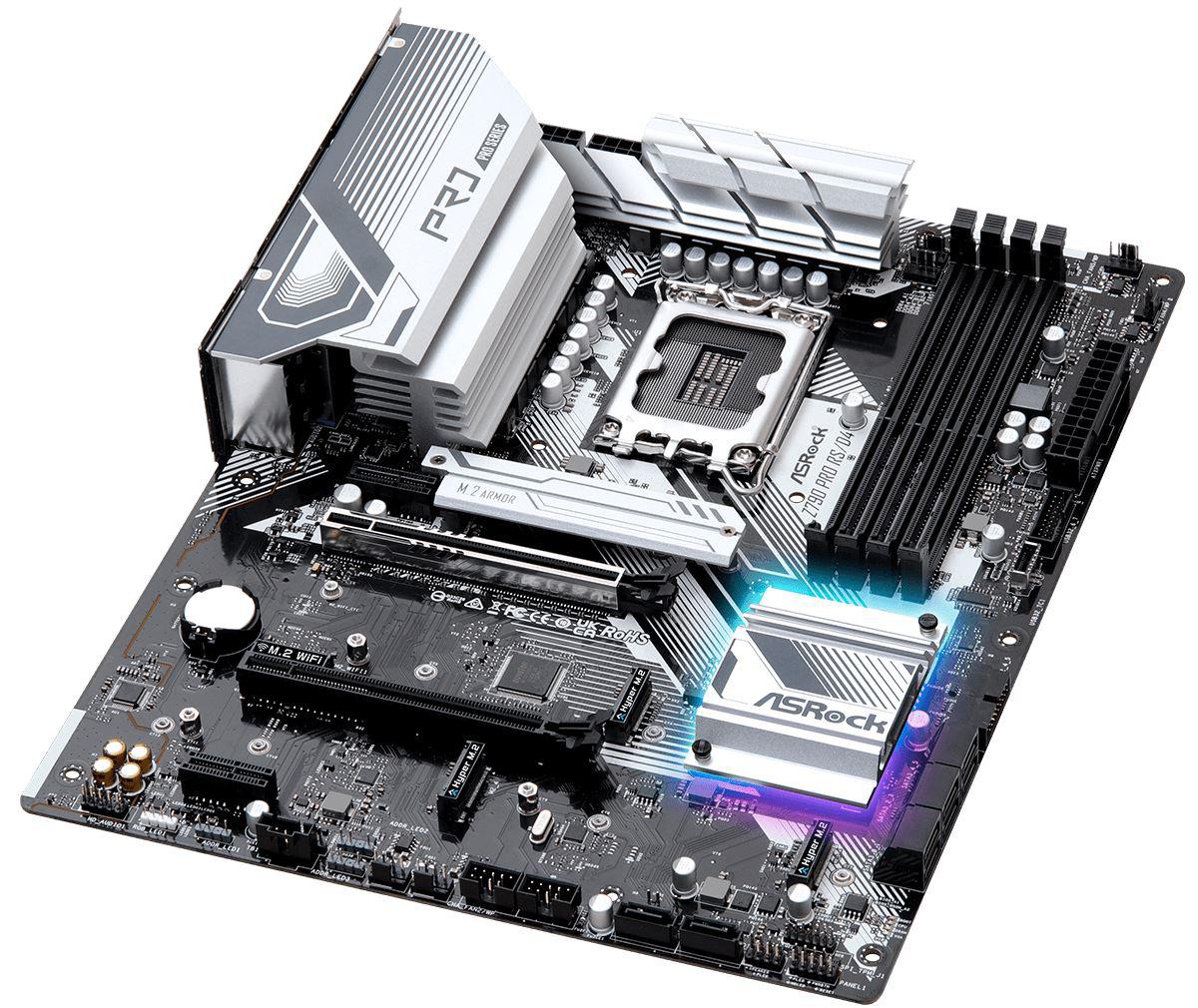

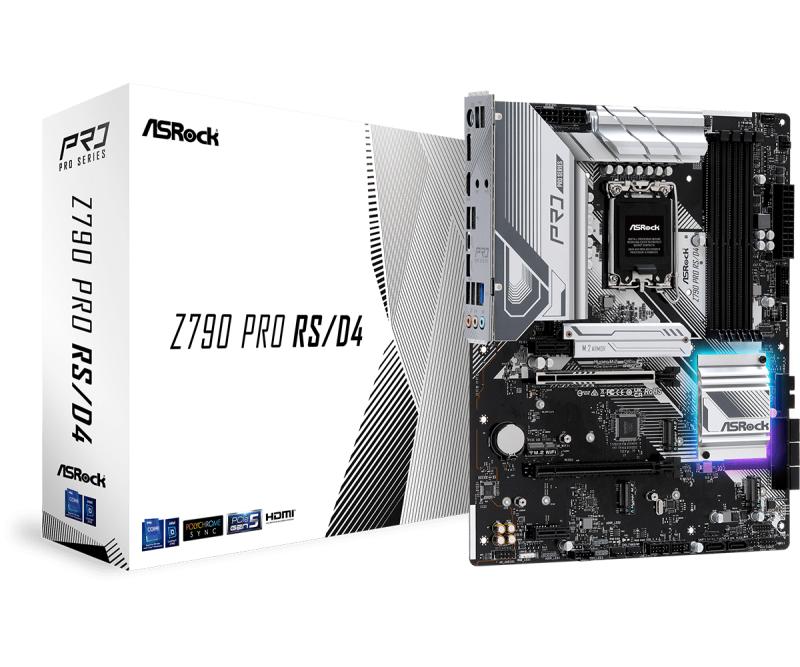

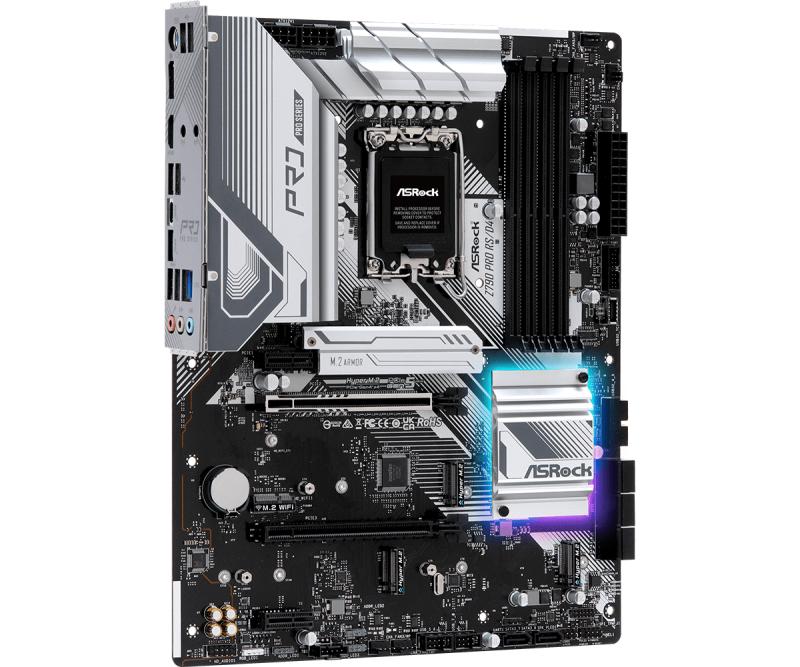

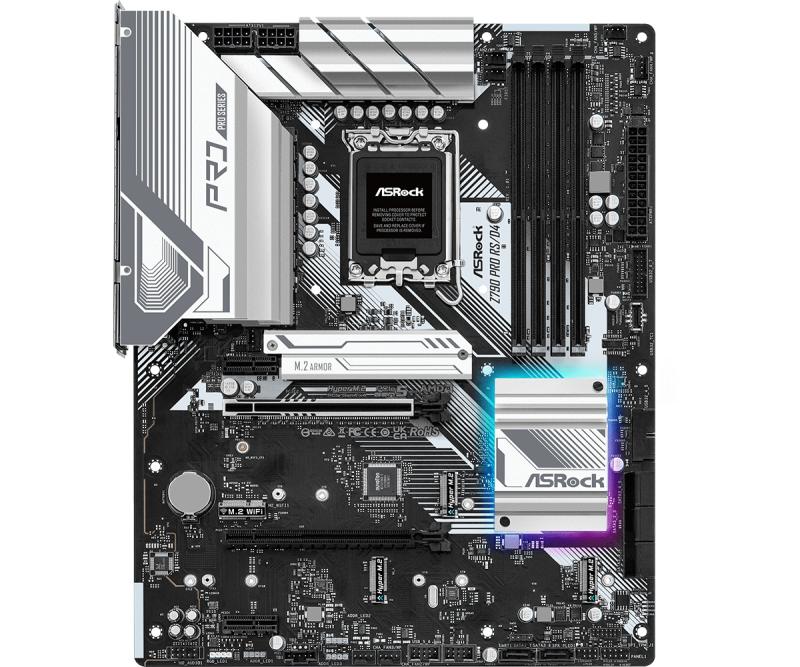

Placa de baza Asrock Z790 PRO RS/D4 LGA 1700
Stoc epuizat
1.504,99lei
Stoc epuizat

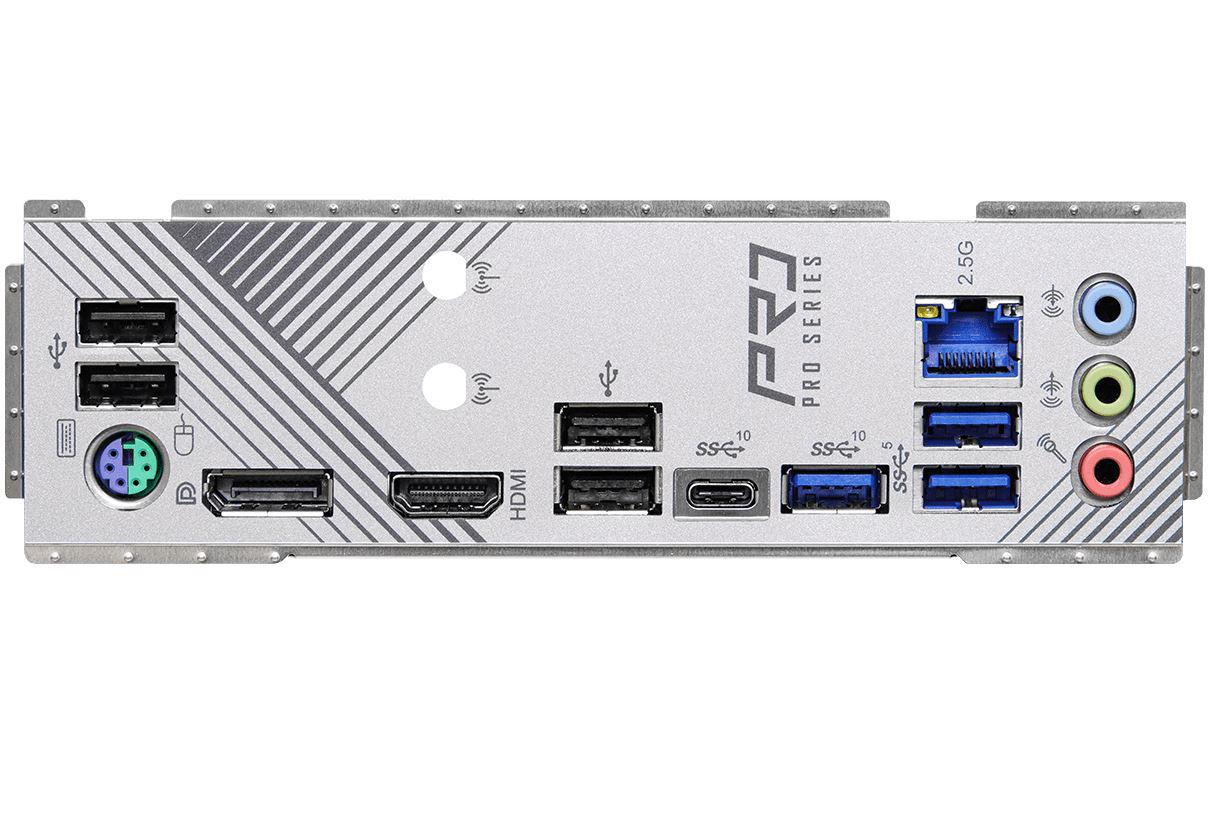

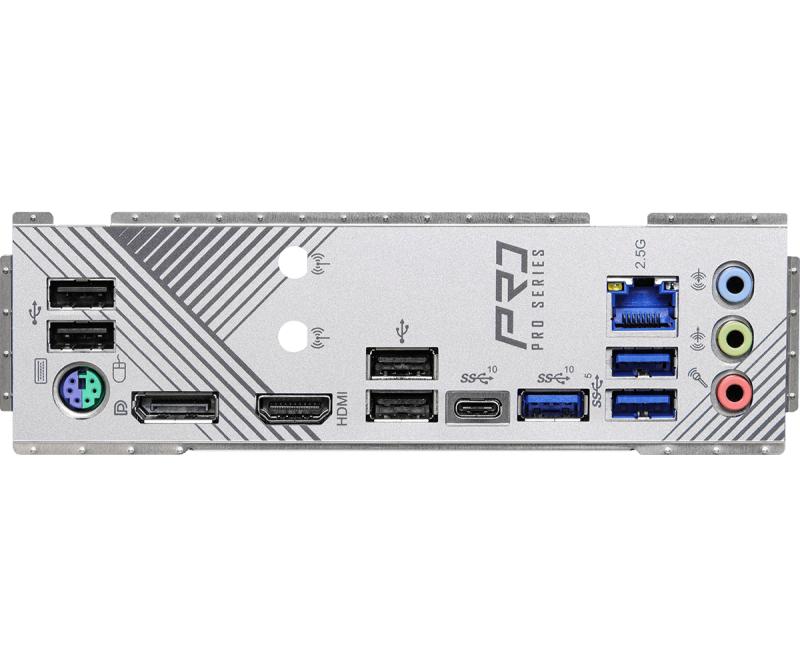

Placa de baza Asrock Z790 PRO RS/D4 LGA 1700 Z790 Pro RS/D4 Supports 13th Gen & 12th Gen Intel® Core™ Processors 14+1+1 Phase Power Design, Dr.MOS for VCore+GT 4 x DDR4 DIMMs, supports up to 5333+(OC) 1 PCIe 5.0 x16, 1 PCIe 4.0 x16, 2 PCIe 3.0 x1, 1 M.2 Key-E for WiFi Graphics Output Options: 1 HDMI, 1 DisplayPort, eDP 7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio 4 Hyper M.2 (PCIe Gen4x4), 8 SATA3 1 USB 3.2 Gen2x2 Type-C (Front), 1 USB 3.2 Gen2 Type-C (Rear), 1 USB 3.2 Gen2 Type-A (Rear), 6 USB 3.2 Gen1 (2 Rear, 4 Front), 8 USB 2.0 (4 Rear, 4 Front) Realtek 2.5G LAN
| Producator | ASROCK |
|---|---|
| Garantie | 36 |
| PCI | 0 |
| Serial-or-Paralel | No/No |
| Video-Connection | HDMI/DP |
| Wi-Fi | No |
| Onboard-CPU | No |
| Memory channels | Dual-channel |
| RAID support | Yes |
| HDMI | Da |
| Thunderbolt | Nu |
| PCI Express x1 (Gen 3.x) slots | 2 |
| Audio output channels | 7.1 channels |
| PCI Express x16 (Gen 5.x) slots | 1 |
| Audio chip | Realtek ALC897 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Supported storage drive types | HDD & SSD |
| Supported memory types | DDR4-SDRAM |
| Number of M.2 (M) slots | 1 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| Microphone in | Yes |
| HDMI ports quantity | 1 |
| Headphone outputs | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| Maximum internal memory | 128 GB |
| Ethernet LAN | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| VGA (D-Sub) ports quantity | 0 |
| DVI-D ports quantity | 0 |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Unbuffered memory | Yes |
| Supported storage drive interfaces | M.2, SATA III |
| USB 2.0 connectors | 2 |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| PS/2 ports quantity | 1 |
| BIOS type | UEFI AMI |
| Processor socket | LGA 1700 |
| Maximum number of SMP processors | 1 |
| ECC сompatibility | ECC & Non-ECC |
| RAID levels | 0, 1, 5, 10 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| TPM connector | Yes |
| RGB LED pin header | Yes |
| Motherboard form factor | ATX |
| Motherboard chipset family | Intel |
| BIOS memory size | 128 Mbit |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Thunderbolt headers | 1 |
| Motherboard chipset | Intel Z790 |
| Number of SATA III connectors | 8 |
| LAN controller | Dragon RTL8125BG |
| Model Chipset | Z790 |
| Format | ATX |
| Soclu Procesor | Socket 1700 |
| Tip slot interfata grafica | PCIe 5.0 x16 |
| Chipset audio integrat | Realtek |
| Canale audio | 7.1 |
| Wireless | Nu |
| Bluetooth | Nu |
| Sloturi M.2 | 1 |
| RJ-45 LAN | 1 |
| Gaming | Nu |
| Tip Memorie | DDR4 |
| Numar sloturi memorie | 4 |
| Memorie maxima | 128 GB |
| USB Type-C | Da |
| Compatible processor series | Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9 |
