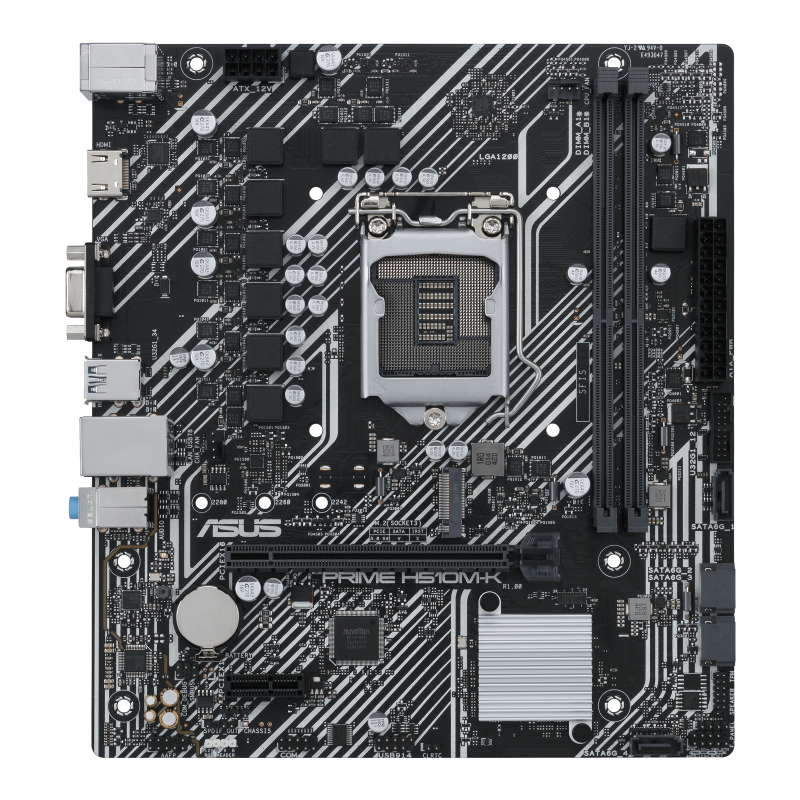

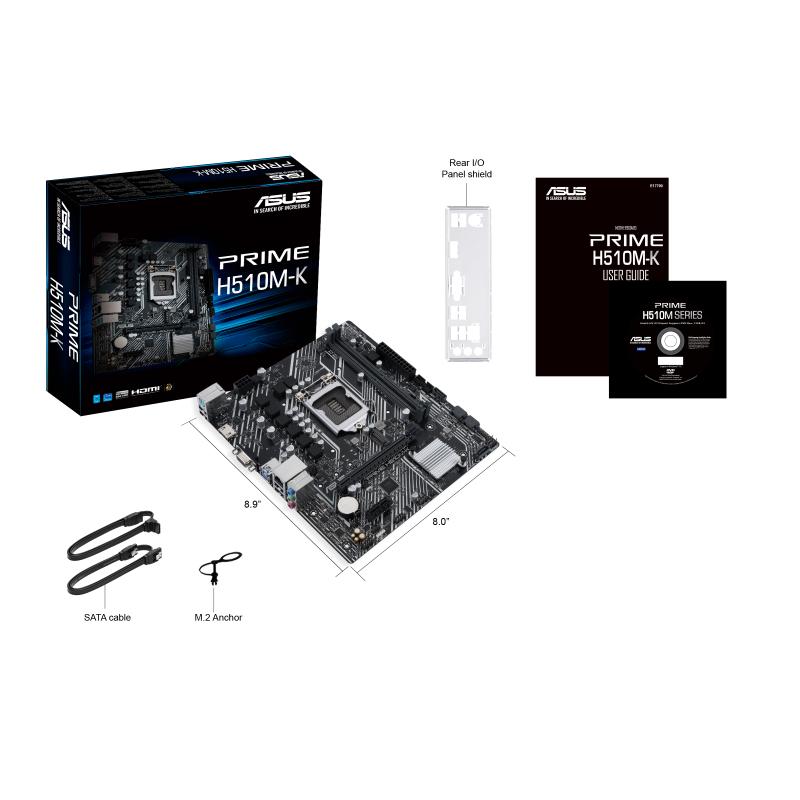

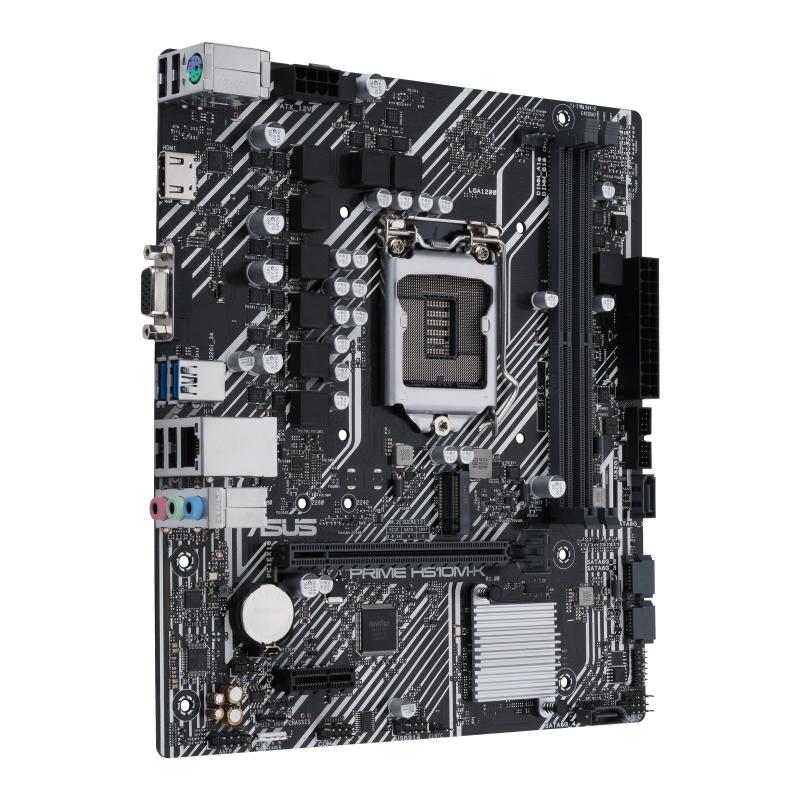

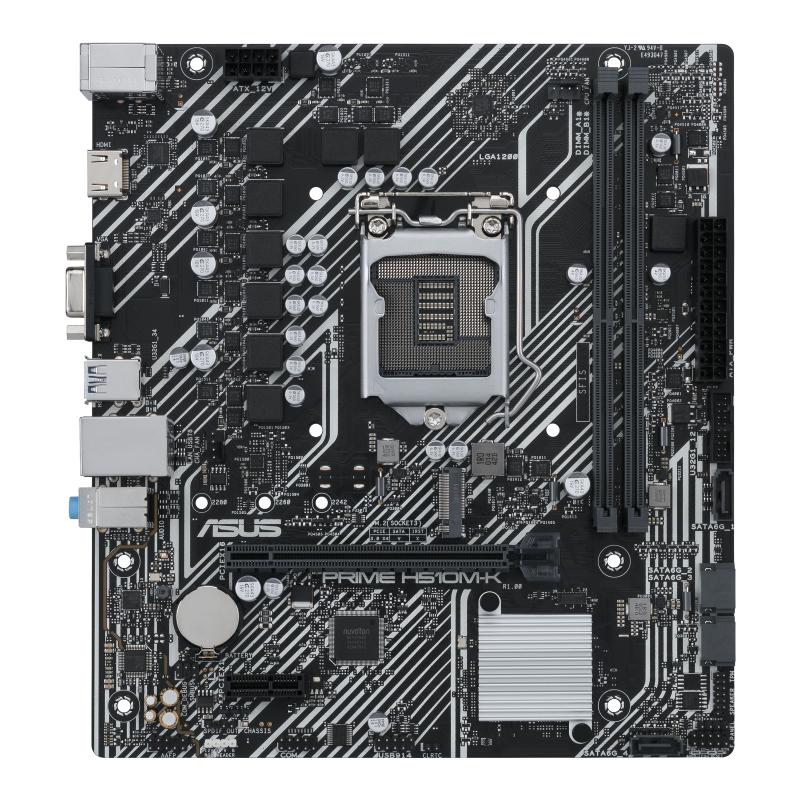

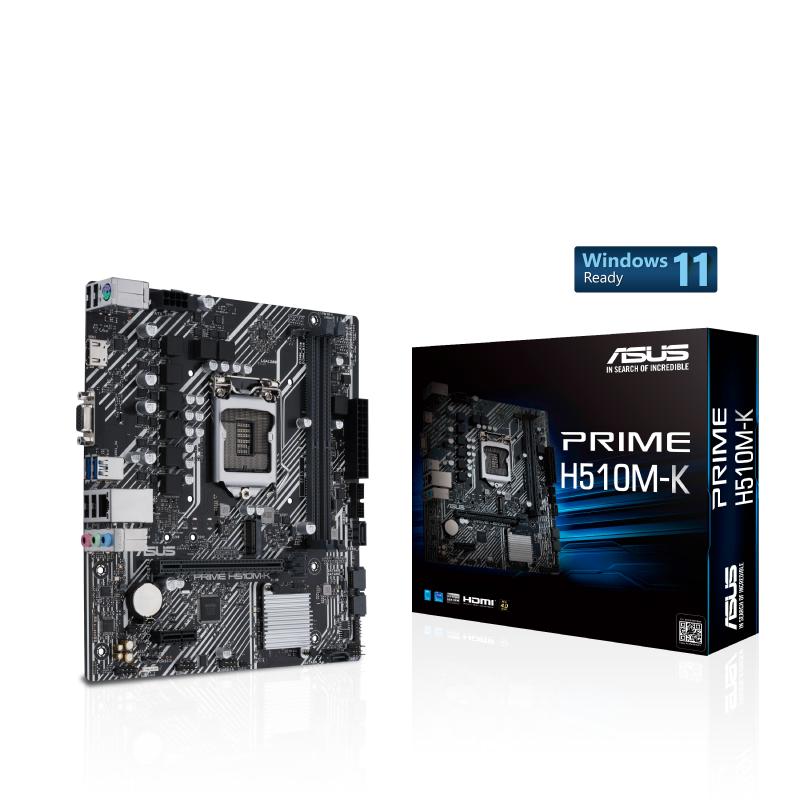

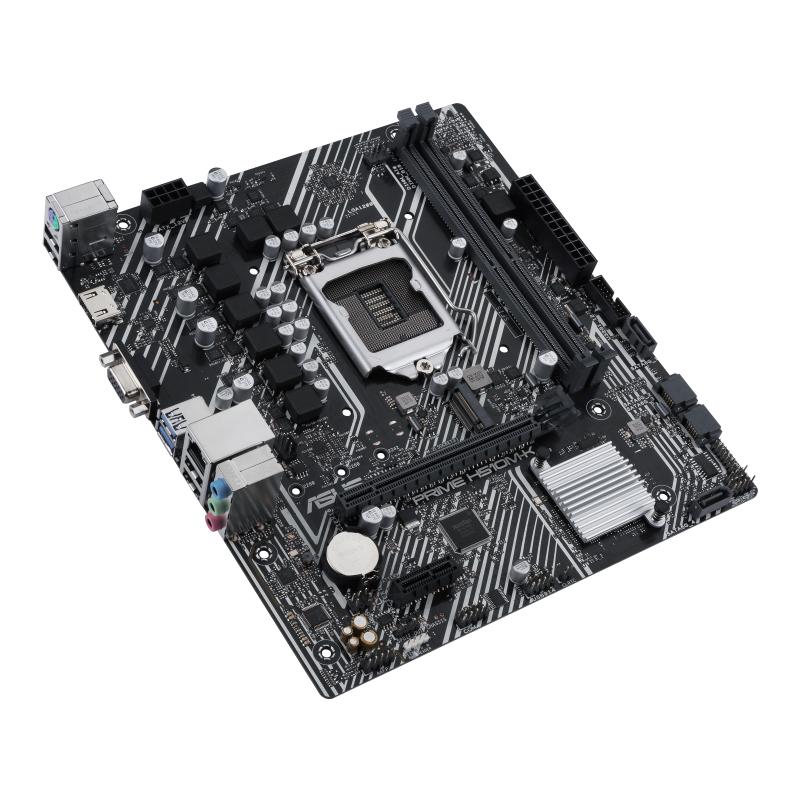

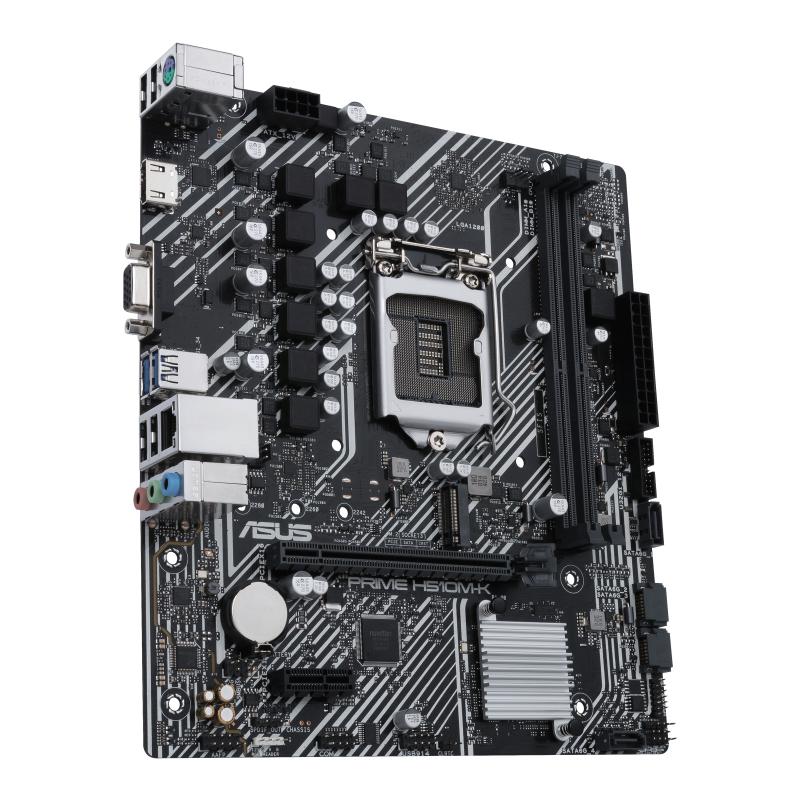

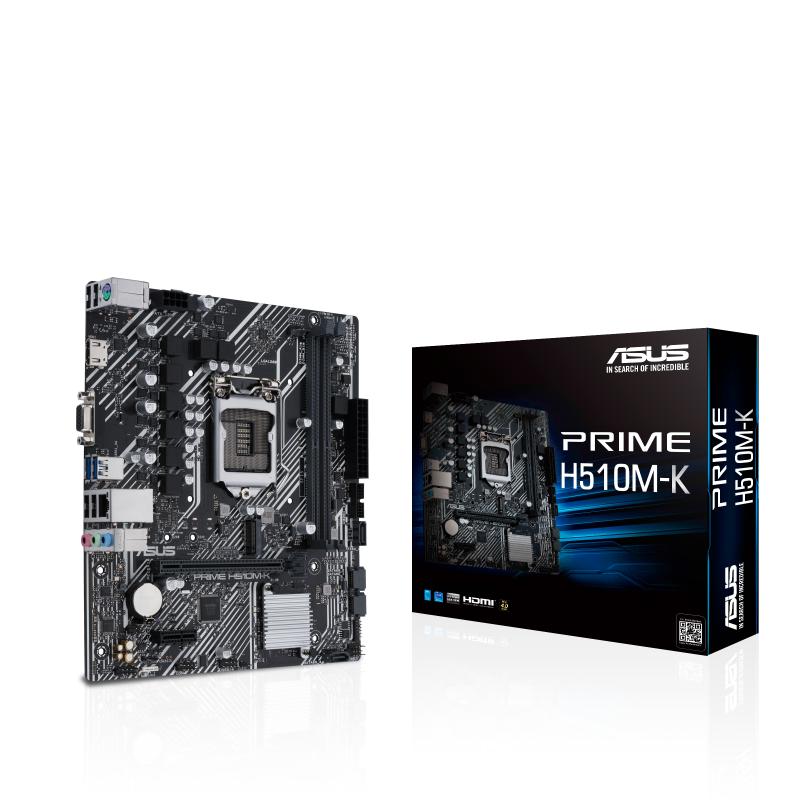

Placa de baza Asus PRIME H510M-K, LGA 1200
Stoc epuizat
576,99lei
Stoc epuizat
Placile de baza ASUS din seria Prime sunt proiectate in mod expert pentru a elibera intregul potential al procesoarelor Intel® din generatiile 11 si 10. Dispunand de un design robust din punct de vedere energetic, solutii de racire complete si optiuni inteligente de reglaj, PRIME H510M-K ofera utilizatorilor zilnici si constructorilor de PC-uri DIY o gama de optiuni de reglare a performantelor prin intermediul unor functii software si firmware intuitive.Placa de baza Prime H510 include instrumente flexibile pentru a regla fiecare aspect al sistemului tau, permitand ajustarea performantelor pentru a se potrivi perfect cu modul in care lucrezi, pentru a maximiza productivitatea.
| Producator | ASUS |
|---|---|
| Garantie | 36 |
| PCI | 0 |
| Serial-or-Paralel | No/No |

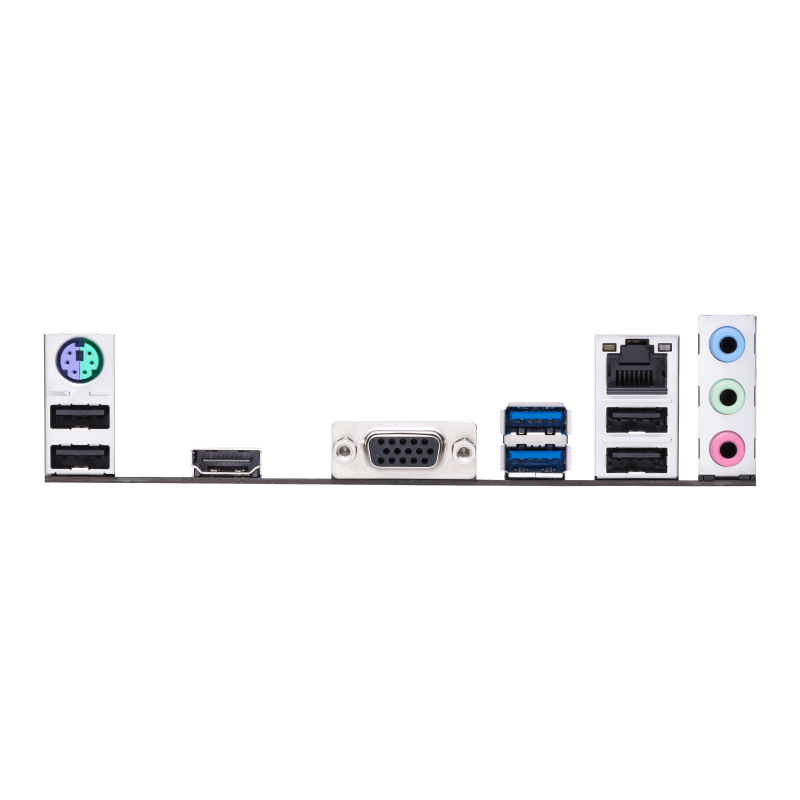

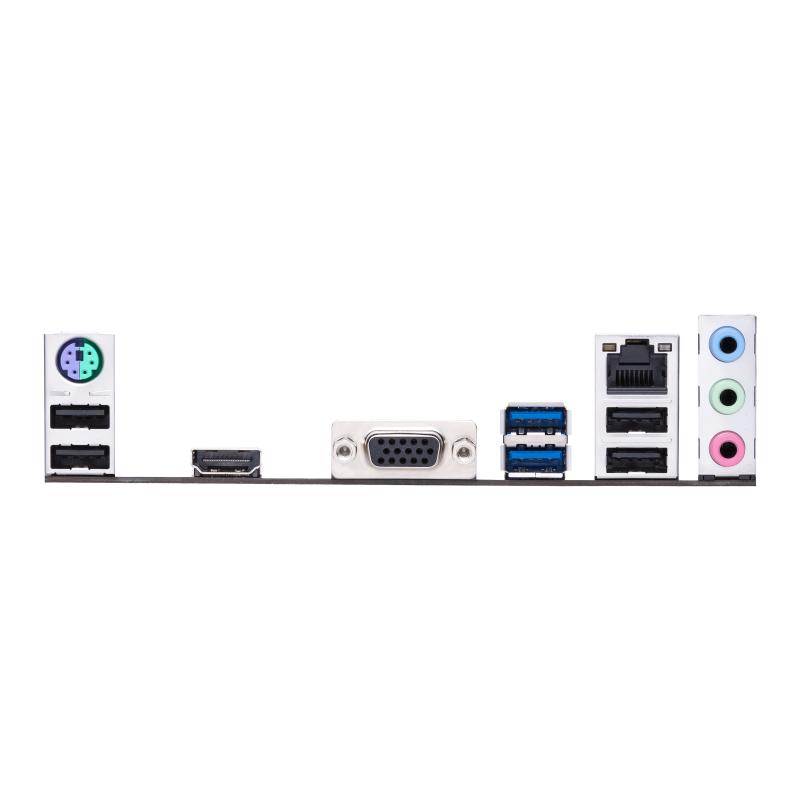

| Video-Connection | HDMI/DP |
| Wi-Fi | No |
| CPU încorporat | Yes |
| Memory channels | Dual-channel |
| Wake-on-LAN ready | Yes |
| HDMI | Da |
| Thunderbolt | Nu |
| Audio output channels | 7.1 channels |
| PCI Express x1 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Number of memory slots | 2 |
| Supported storage drive types | HDD & SSD |
| Supported memory types | DDR4-SDRAM |
| LAN controller | Intel® I219-V |
| Number of M.2 (M) slots | 1 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI version | 1.4/2.0 |
| Maximum resolution | 3840 x 2160 pixels |
| Microphone in | Yes |
| HDMI ports quantity | 1 |
| Ethernet LAN | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| Maximum internal memory | 64 GB |
| Parallel processing technology support | Not supported |
| Drivers included | Yes |
| DVI-D ports quantity | 0 |
| Memory slots type | DIMM |
| Unbuffered memory | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 0 |
| Number of SATA III connectors | 4 |
| Number of Parallel ATA connectors | 0 |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| EPS power connector (8-pin) | Yes |
| PS/2 ports quantity | 1 |
| Motherboard form factor | micro ATX |
| BIOS type | UEFI AMI |
| Clear CMOS jumper | Yes |
| TPM connector | Yes |
| 12V power connector | Yes |
| RGB LED pin header | Yes |
| Motherboard chipset family | Intel |
| ECC сompatibility | Non-ECC |
| S/PDIF out connector | Yes |
| Number of COM connectors | 1 |
| BIOS memory size | 128 Mbit |
| Headphone outputs | 3 |
| USB 2.0 connectors | 1 |
| Processor socket | LGA 1200 (Socket H5) |
| Supported processor sockets | LGA 1200 (Socket H5) |
| Supported storage drive interfaces | M.2, PCI Express 3.0, SATA III |
| Number of storage drives supported | 5 |
| Number of chassis fan connectors | 1 |
| Supported memory clock speeds | 2133,2400,2666,2800,2933,3200 MHz |
| Model Chipset | H510 |
| Soclu Procesor | Socket 1200 |
| Numar sloturi memorie | 2 |
| Memorie maxima | 64 GB |
| Chipset audio integrat | Realtek |
| Canale audio | 7.1 |
| Wireless | Nu |
| Bluetooth | Nu |
| Sloturi M.2 | 1 |
| RJ-45 LAN | 1 |
| Gaming | Nu |
| Format | Micro-ATX (mATX) |
| Tip Memorie | DDR4 |
| Tip slot interfata grafica | PCIe 4.0 x16 |
| USB Type-C | Da |
| Motherboard chipset | Intel H510 |
| Audio chip | Realtek ALC887 / Realtek ALC897 |
