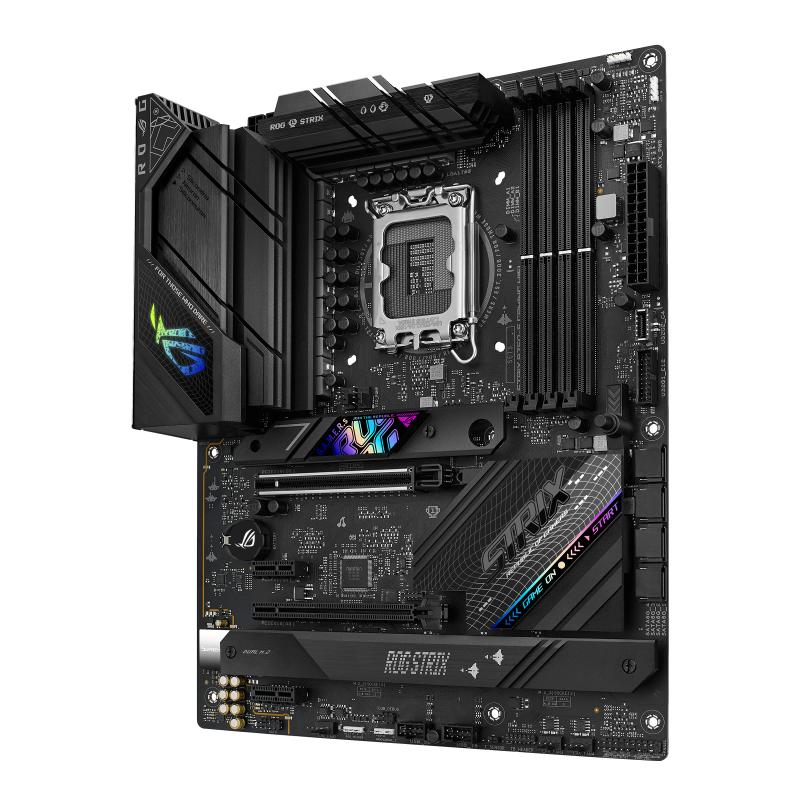

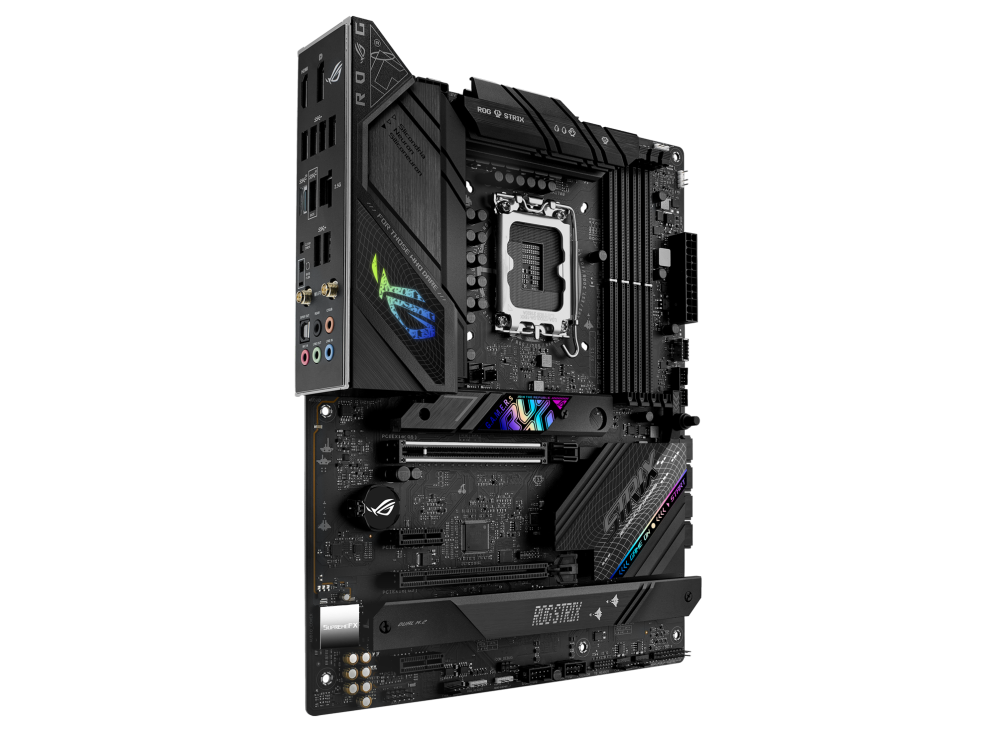

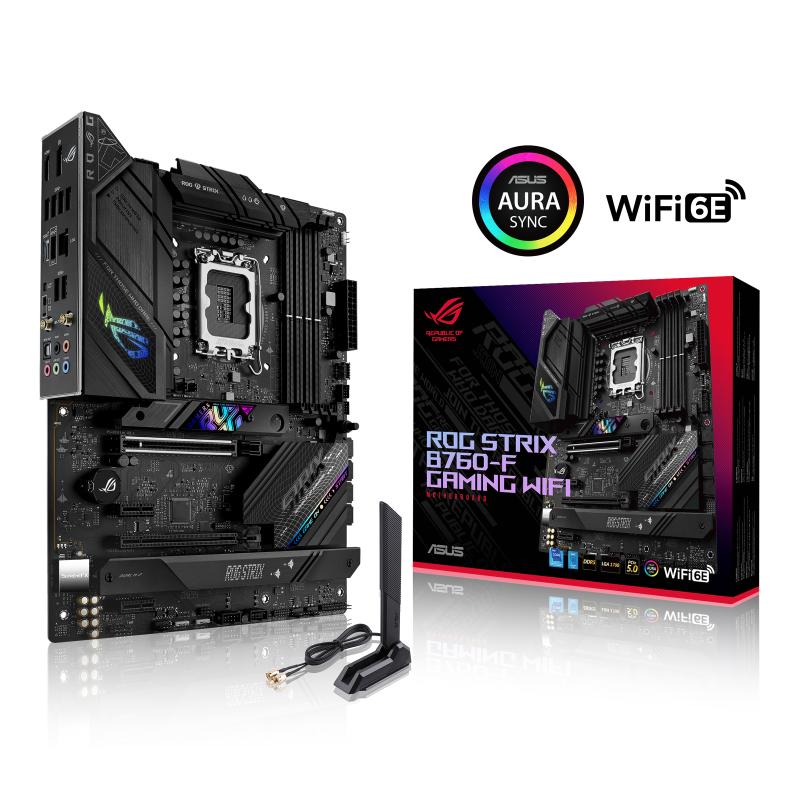

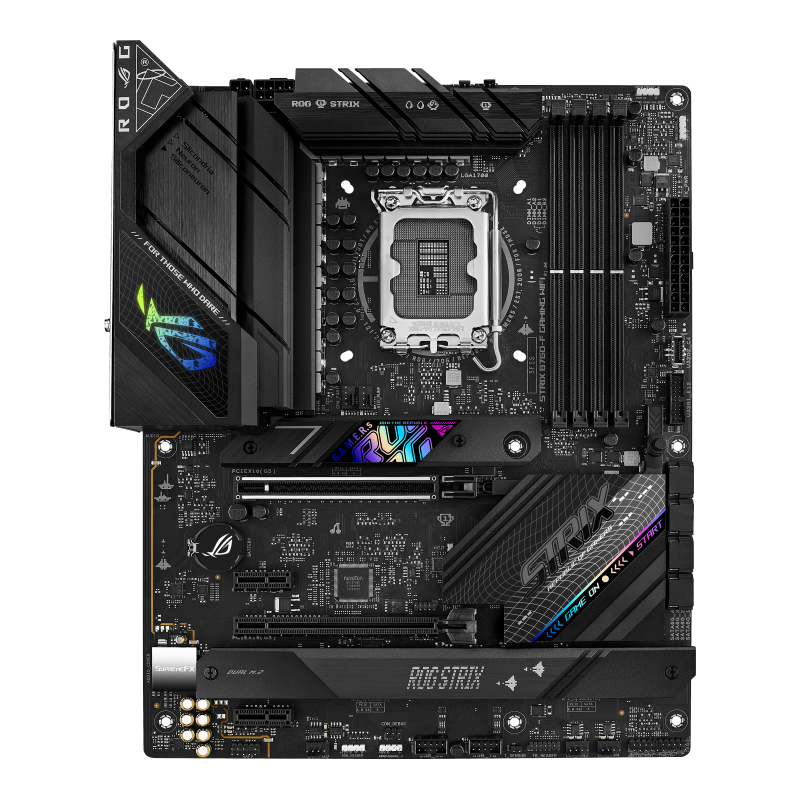

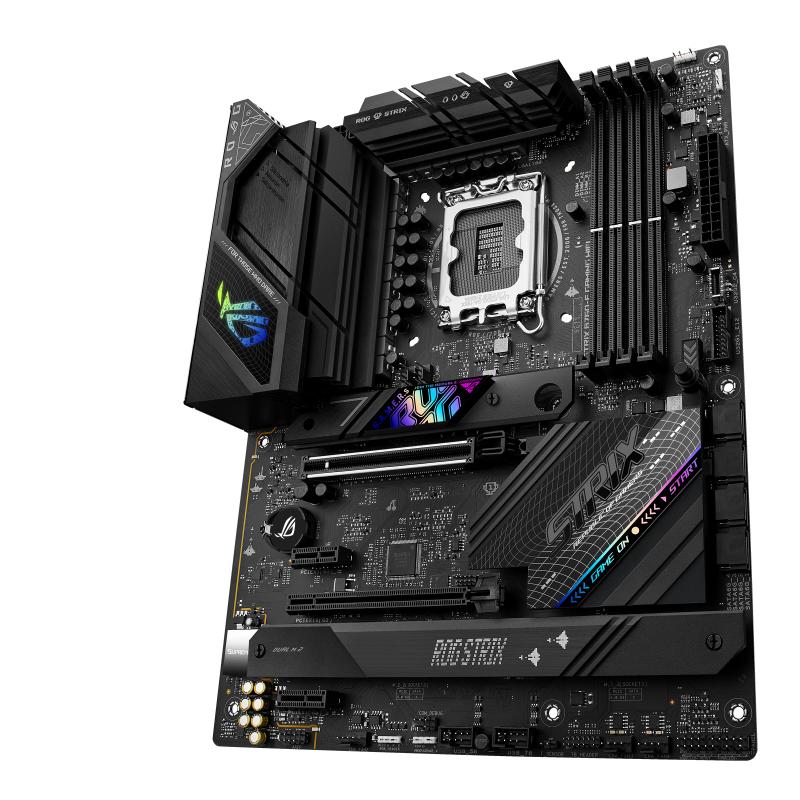

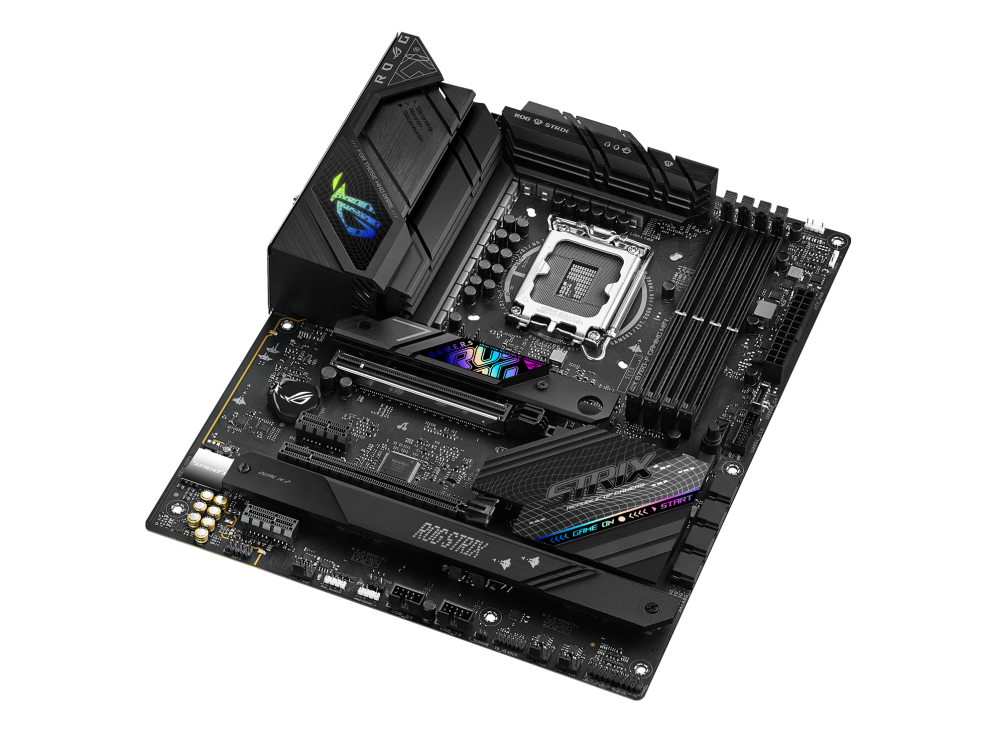

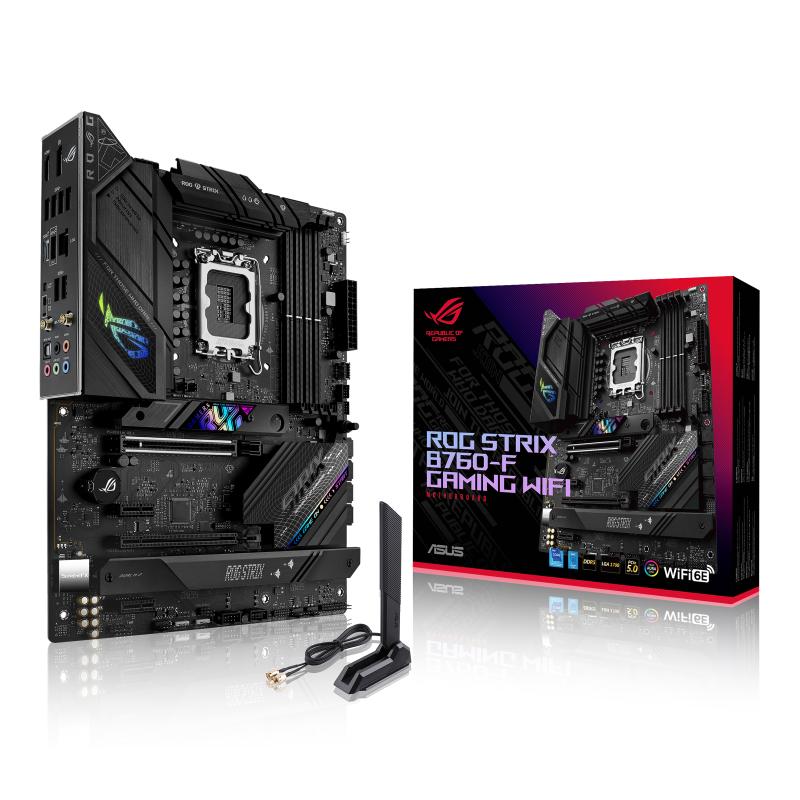

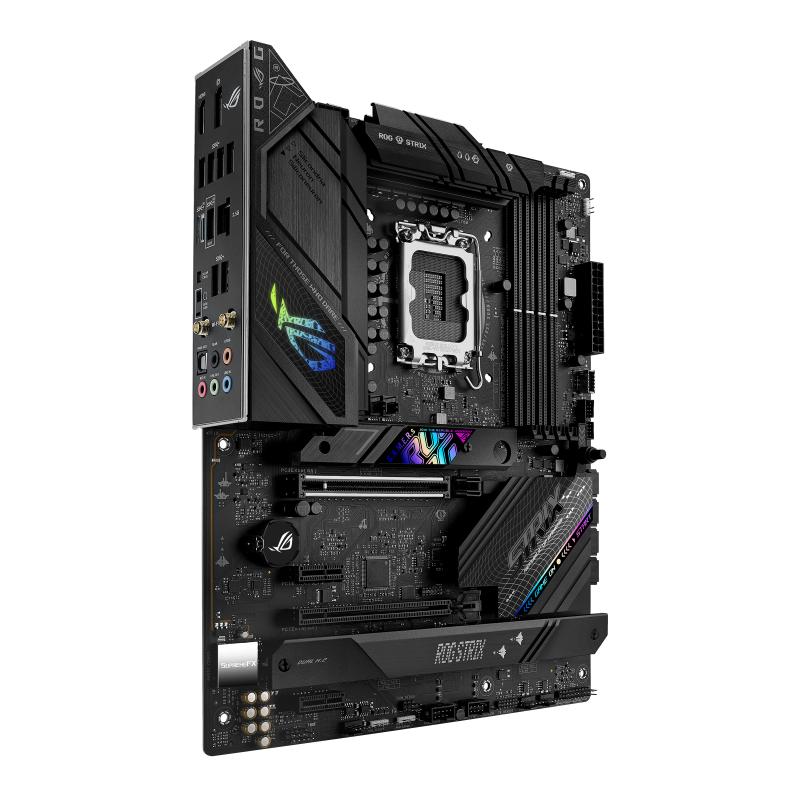

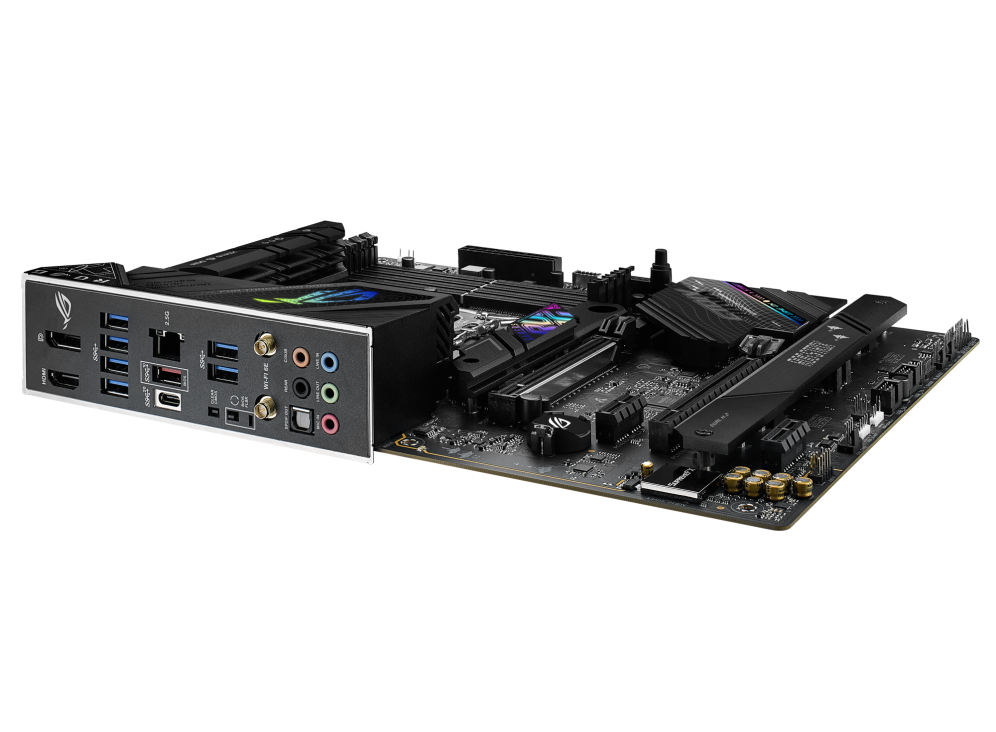

Placa de baza ASUS ROG STRIX B760-F WIFI LGA1700
Stoc epuizat
1.977,99lei
Stoc epuizat
Placa de baza ASUS ROG STRIX B760-F WIFI LGA1700 CPU Intel® Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. Chipset Intel® B760 Chipset Memory 4 x DIMM, Max. 128GB, DDR5 7800(OC)/7000(OC)/6800(OC)/6600(OC)/6400 (OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 MHz Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem II * Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list. * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. Graphics 1 x DisplayPort** 1 x HDMI® port*** * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. **Supports max. 8K@60Hz as specified in DisplayPort 1.4. ***Supports 4K@60Hz as specified in HDMI 2.1. Expansion Slots Intel® 13th & 12th Gen Processors* 1 x PCIe 5.0×16 slot (supports x16 mode)** Intel® B760 Chipset** 1 x PCIe 3.0 x16 slot (supports x4 mode)*** 2 x PCIe 3.0 x1 slots * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/). – To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
| PCI | 0 |
|---|---|
| Serial-or-Paralel | No/No |
| Video-Connection | HDMI/DP |
| Wi-Fi | Yes |
| USB3 | 4-8 |
| Onboard-CPU | No |
| PCI-Ex1 | 2 |
| Memory channels | Dual-channel |
| RAID support | Yes |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| HDMI | Da |
| PCI Express x1 (Gen 3.x) slots | 2 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| Audio output channels | 7.1 channels |
| Line-in | Yes |
| PCI Express x16 (Gen 5.x) slots | 1 |
| On-board graphics card | No |
| Supported storage drive types | HDD & SSD |
| Cooling type | Passive |
| Parallel processing technology support | Not supported |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Unbuffered memory | Yes |
| Supported storage drive interfaces | M.2, SATA III |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 4 |
| Number of SATA II connectors | 0 |
| Number of SATA connectors | 0 |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| EPS power connector (8-pin) | Yes |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| mSATA ports quantity | 0 |
| Processor socket | LGA 1700 |
| Maximum number of SMP processors | 1 |
| Supported processor sockets | LGA 1700 |
| Supported memory types | DDR5-SDRAM |
| Number of HDDs supported | 4 |
| RAID levels | 0, 1, 5, 10 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Front panel connector | Yes |
| 12V power connector | Yes |
| RGB LED pin header | Yes |
| WiFi-AP antenna jack | 2 |
| Motherboard form factor | ATX |
| Motherboard chipset family | Intel |
| Clear CMOS button | Yes |
| ECC сompatibility | Non-ECC |
| Motherboard chipset | Intel B760 |
| Thunderbolt headers | 1 |
| USB4 Gen 2x2 ports quantity | 0 |
| USB4 Gen 3x2 ports quantity | 0 |
| PS/2 ports quantity | 0 |
| Audio chip | Realtek ALC4080 |
| PCI Express x1 slots | 0 |
| PCI Express x1 (Gen 2.x) slots | 0 |
| PCI Express x1 (Gen 4.x) slots | 0 |
| PCI Express x4 slots | 0 |
| PCI Express x4 (Gen 1.x) slots | 0 |
| PCI Express x4 (Gen 2.x) slots | 0 |
| PCI Express x4 (Gen 4.x) slots | 0 |
| PCI Express x8 slots | 0 |
| PCI Express x8 (Gen 1.x) slots | 0 |
| PCI Express x16 (Gen 2.x) slots | 0 |
| PCI Express x16 (Gen 3.x) @ dual x8/x8 mode slots | 0 |
| PCI slots | 0 |
| Mini PCI Express (Gen 1.x) slots | 0 |
| Mini PCI Express (Gen 2.x) slots | 0 |
| Mini PCI Express slot (full length) | 0 |
| Mini PCI Express slot (half-length) | 0 |
| Back-to-BIOS button | Yes |
| Chassis intrusion connector | Yes |
| Number of chassis fan connectors | 4 |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| Thunderbolt | Da |
| Number of M.2 (M) slots | 3 |
| Number of storage drives supported | 7 |
| Model Chipset | B760 |
| Gaming | Da |
| Format | ATX |
| Soclu Procesor | Socket 1700 |
| Tip Memorie | DDR5 |
| Numar sloturi memorie | 4 |
| Memorie maxima | 192 GB |
| Tip slot interfata grafica | N/A |
| Chipset audio integrat | Realtek |
| Canale audio | 7.1 |
| Wireless | Da |
| Bluetooth | Nu |
| Sloturi M.2 | 3 |
| RJ-45 LAN | 1 |
| USB Type-C | Da |
| USB 3.2 Gen 2x2 connectors | 0 |
| Supported memory clock speeds | 7800,7000,6800,6600,6400,6200,6000,5800,5600,5400,5200,5000,4800 MHz |
| PCI Express x16 (Gen 4.x) slots | 0 |
| MB-Socket | 1700 |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| RAM-Slots | 4 |
| MB-Format | ATX |
| PCI-Ex16 | 2 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| HDMI version | 2.1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| VGA (D-Sub) ports quantity | 0 |
| S/PDIF out port | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 6 |
| Maximum internal memory | 192 GB |
| Mini PCI Express slots | 0 |
| Producator | ASUS |
| Garantie | 36 |
