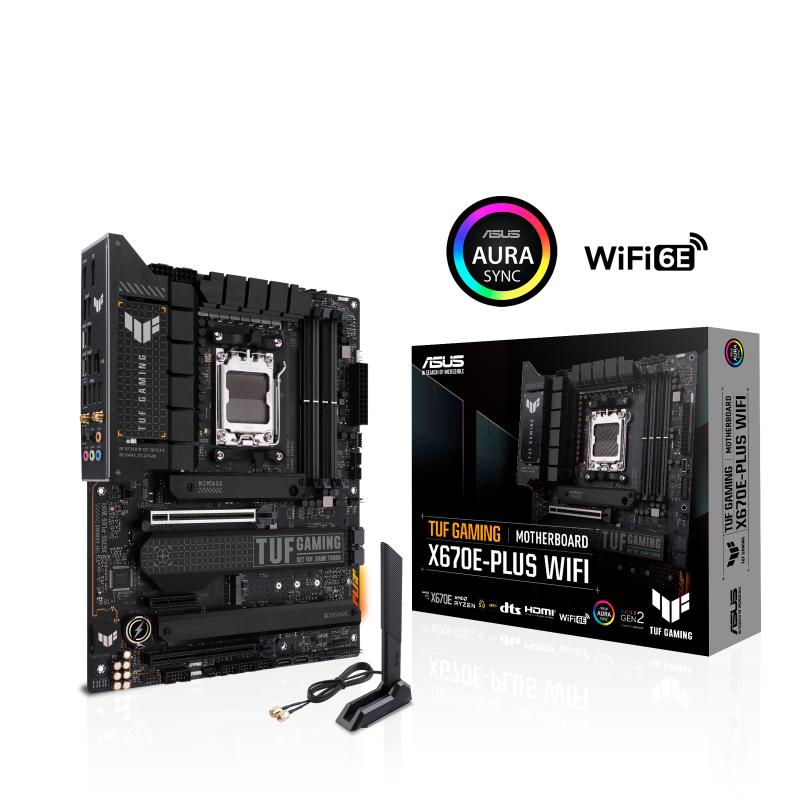

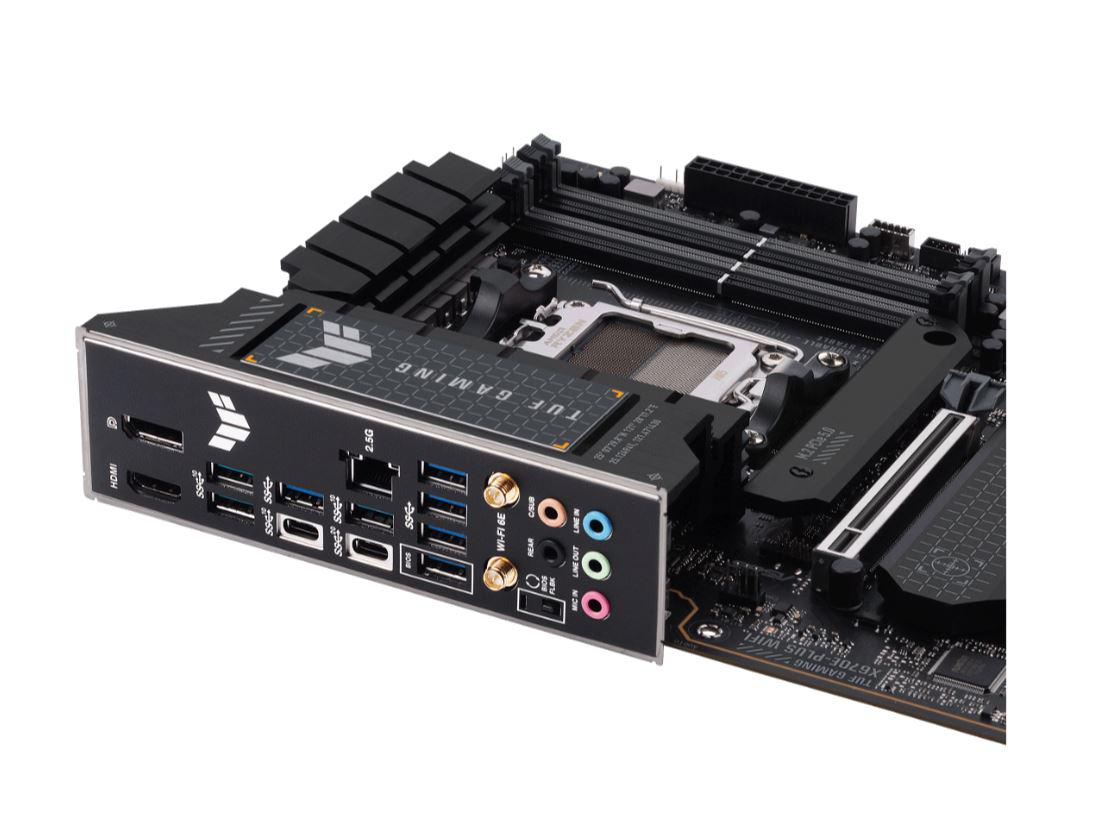

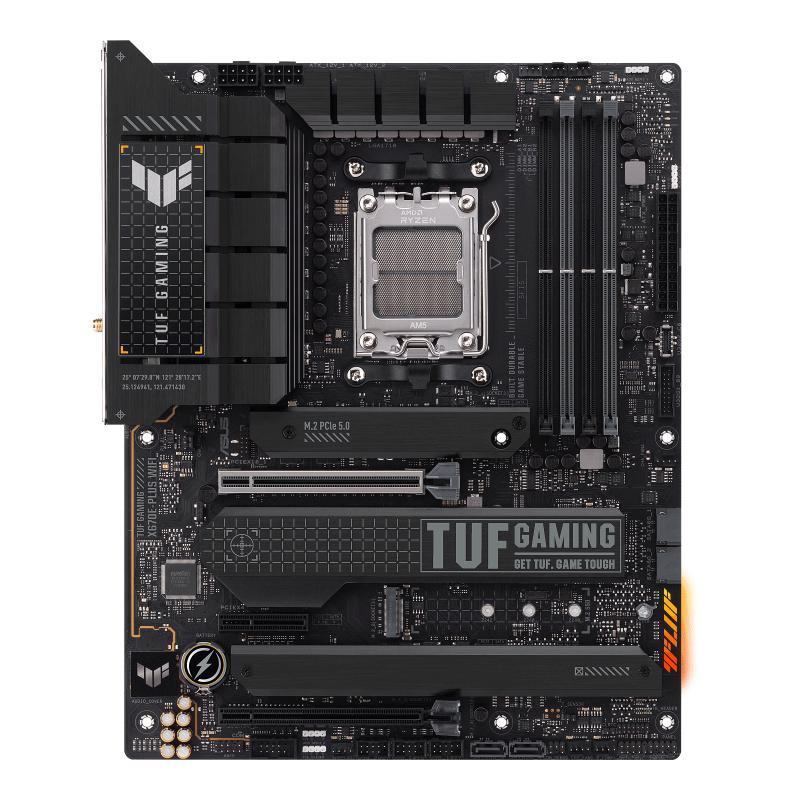

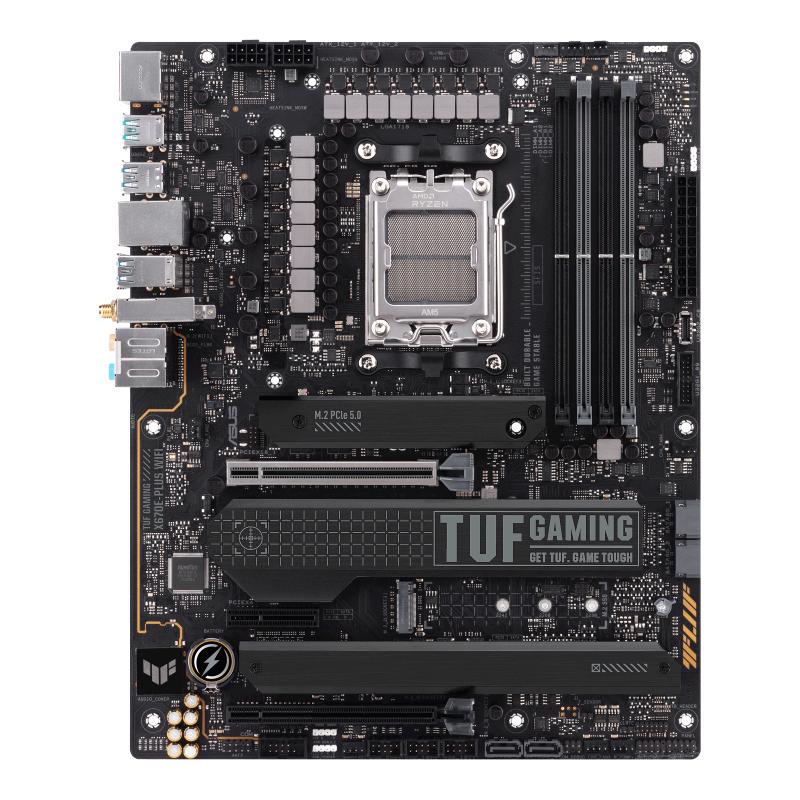

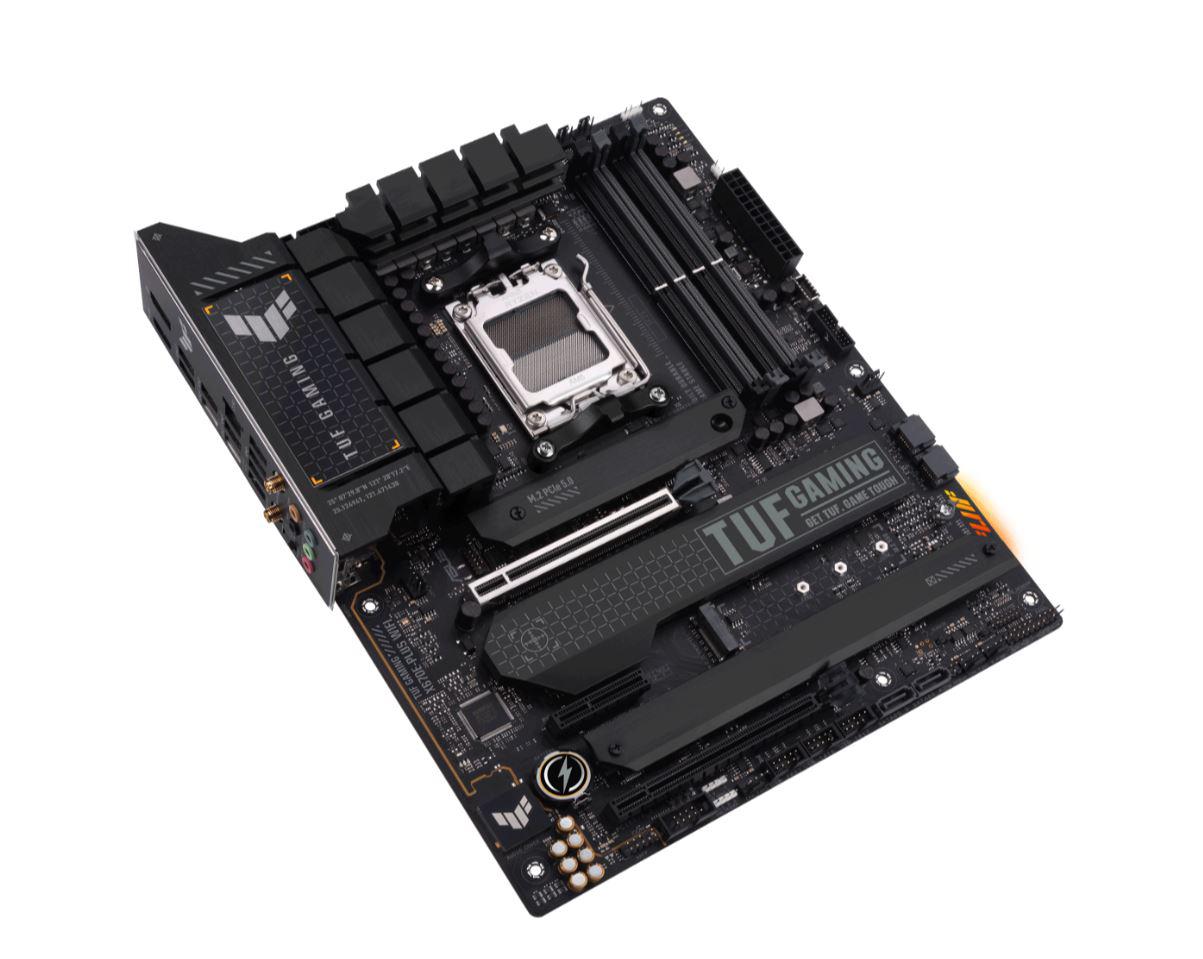

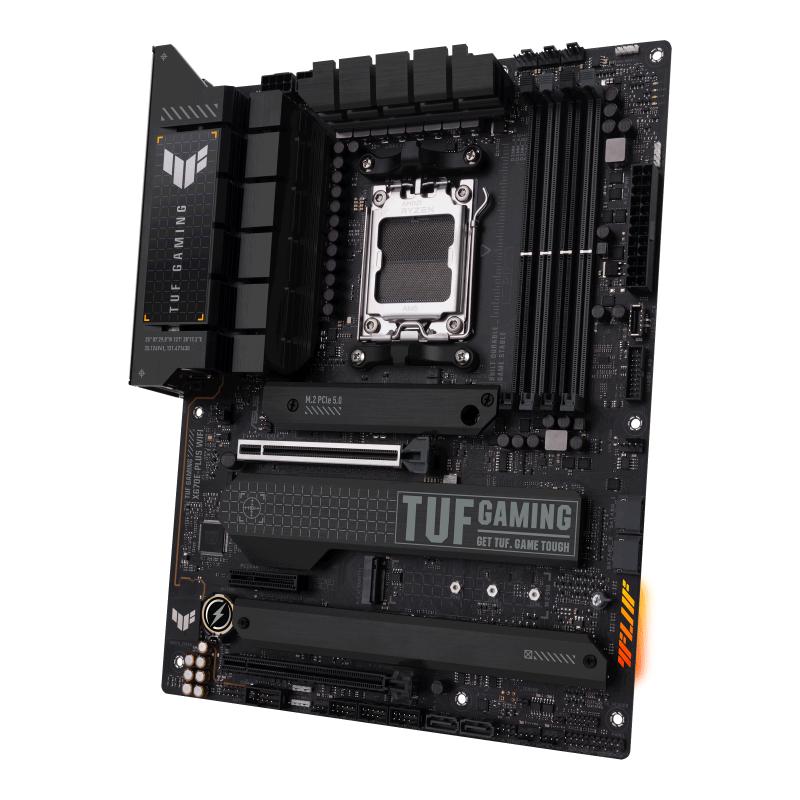

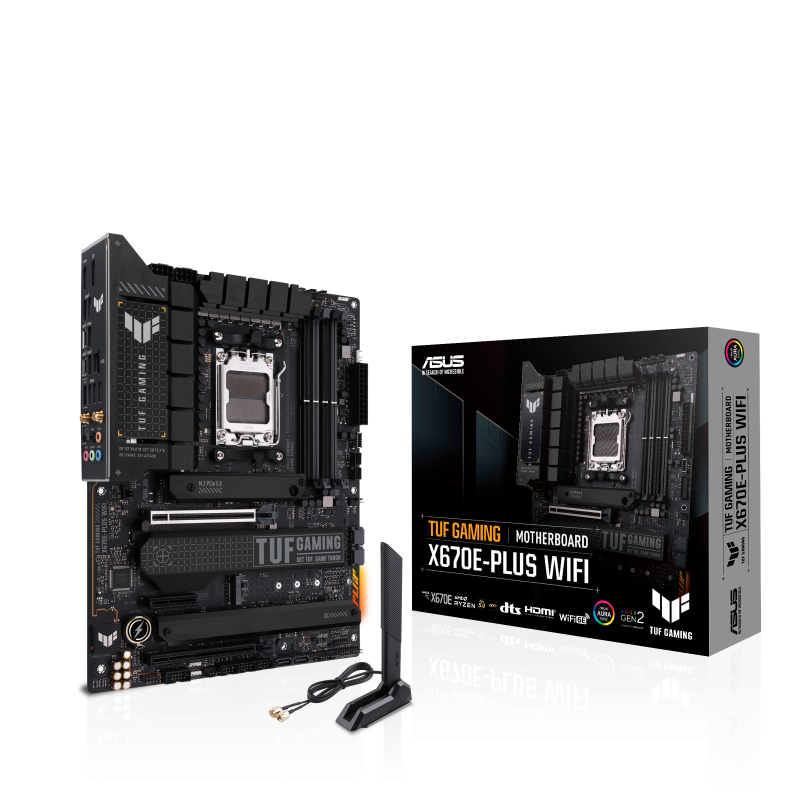

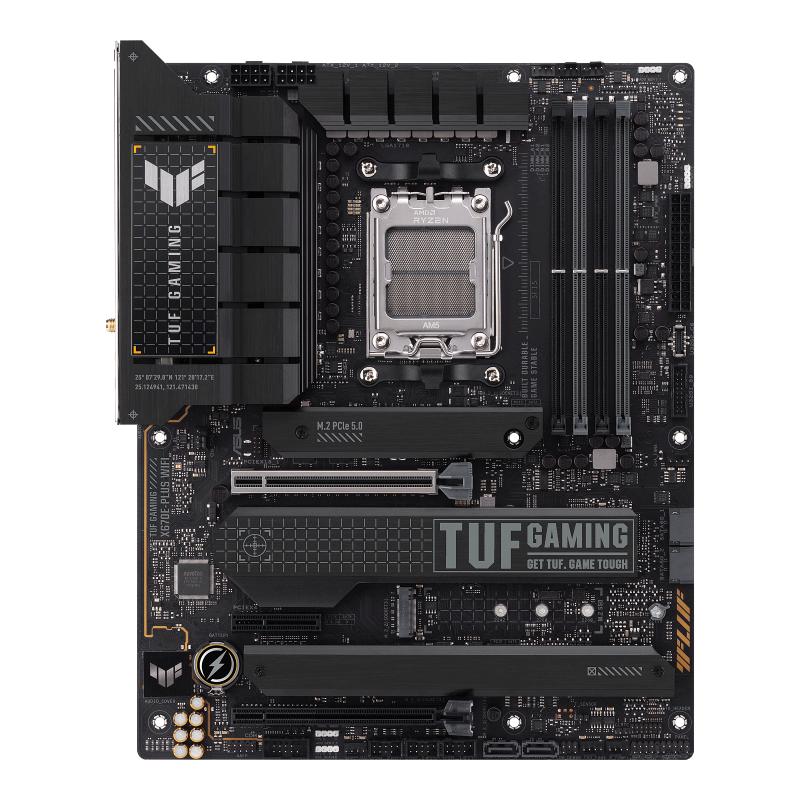

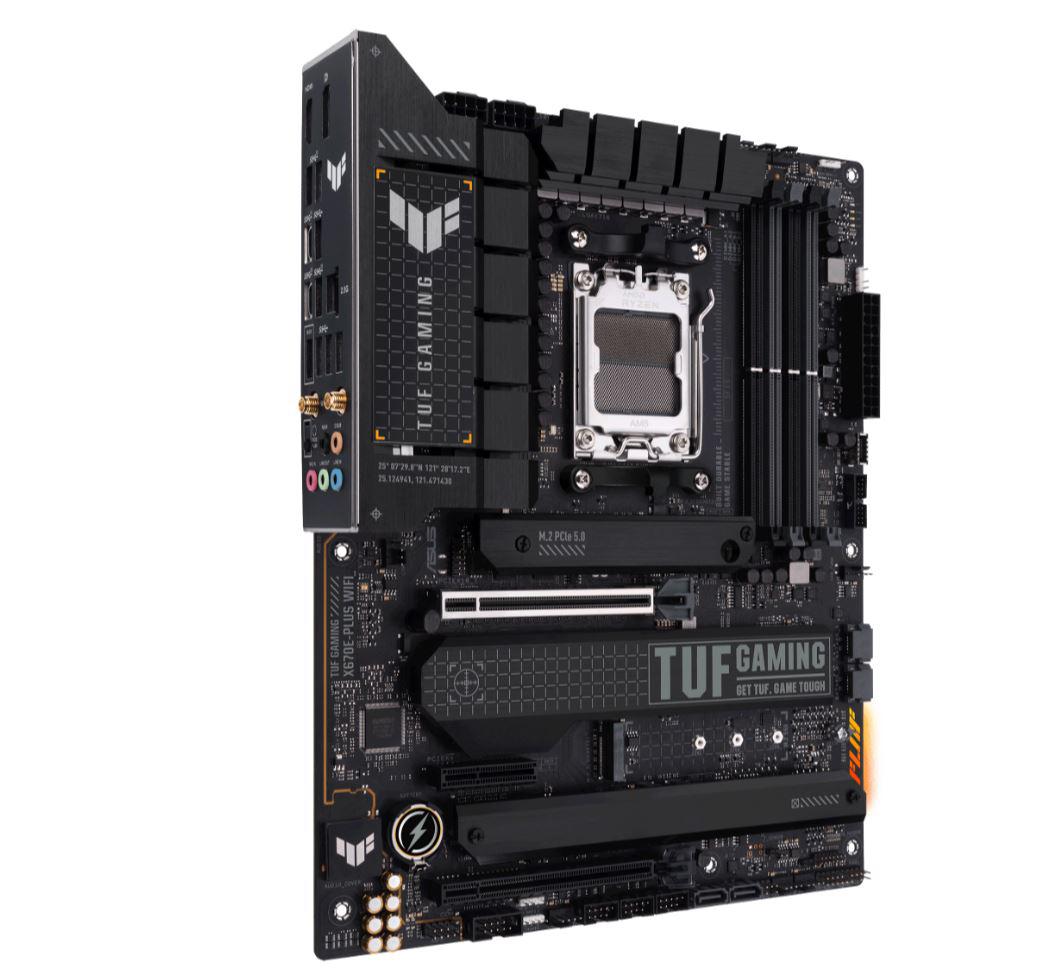

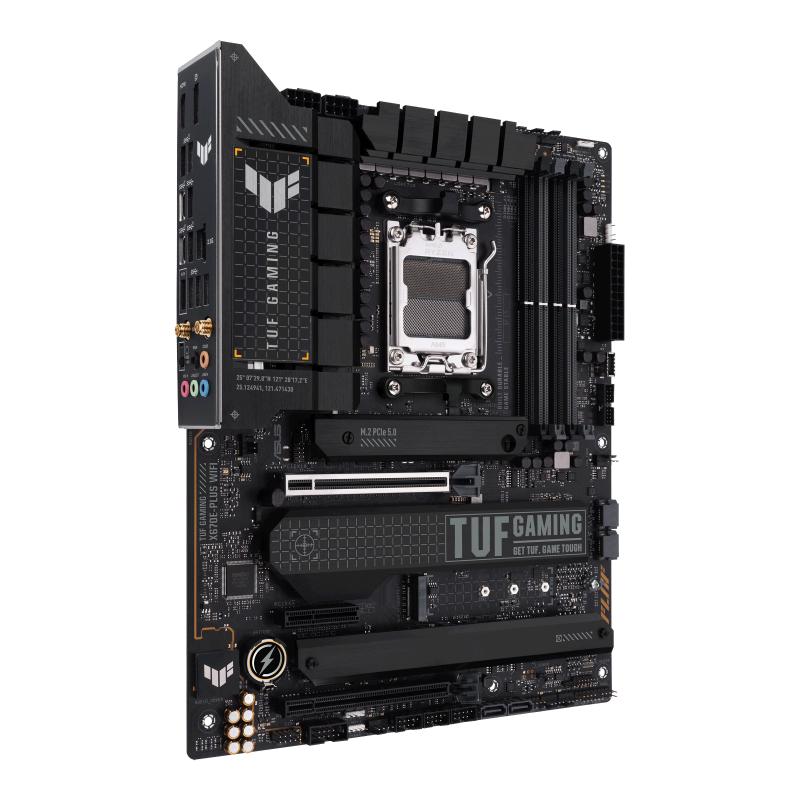

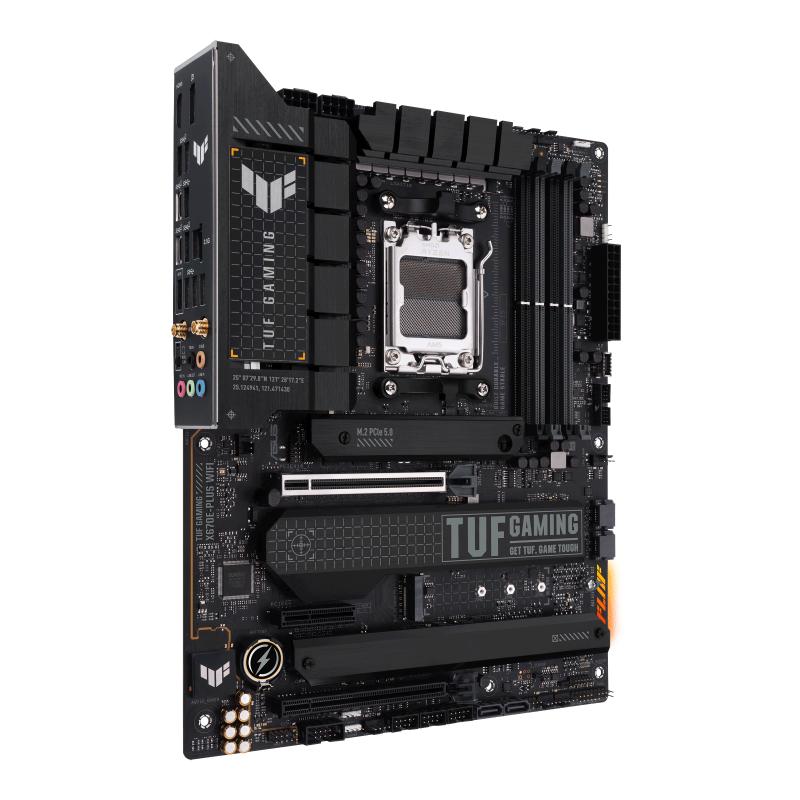

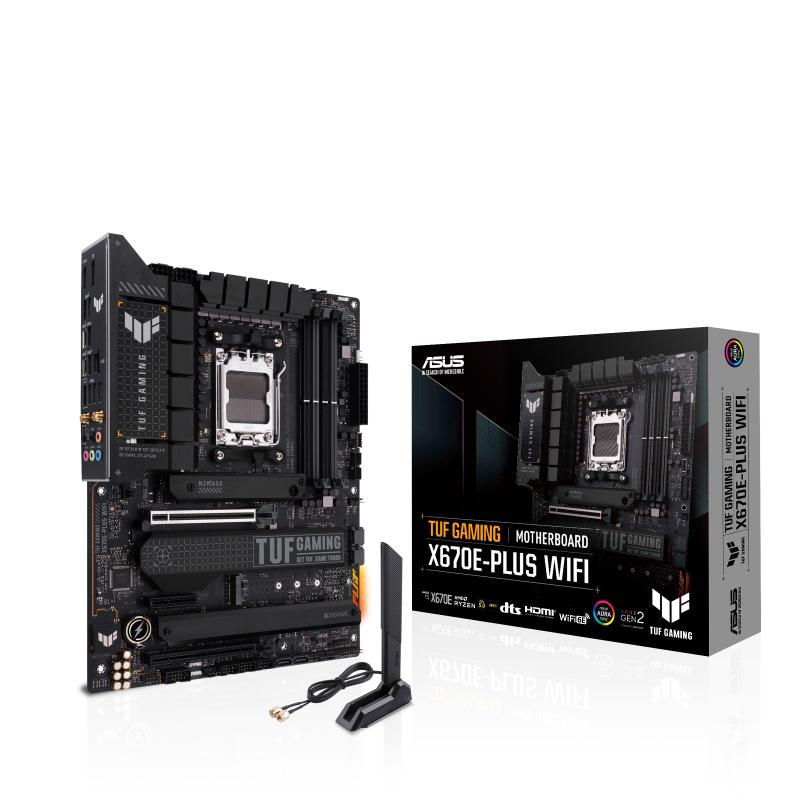

Placa de baza Asus TUF X670E-PLUS WIFI AM5
Producator:
Asus
Disponibilitate:
Stoc epuizat
2.475,99lei
Stoc epuizat
Placa de baza Asus TUF X670E-PLUS WIFI AM5
| PCI | 0 |
|---|---|
| Serial-or-Paralel | No/No |
| Video-Connection | HDMI/DP |
| Wi-Fi | Yes |
| Onboard-CPU | No |
| Memory channels | Dual-channel |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| RAID support | Yes |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| HDMI | Da |
| Thunderbolt | Nu |
| Audio output channels | 7.1 channels |
| Line-in | Yes |
| PCI Express x16 (Gen 5.x) slots | 1 |
| On-board graphics card | No |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Supported storage drive types | HDD & SSD |
| Parallel processing technology support | Not supported |
| Drivers included | Yes |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Unbuffered memory | Yes |
| Supported storage drive interfaces | M.2, SATA III |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 4 |
| Number of SATA II connectors | 0 |
| Number of SATA connectors | 0 |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| EPS power connector (8-pin) | Yes |
| Motherboard chipset family | AMD |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| mSATA ports quantity | 0 |
| Supported memory types | DDR5-SDRAM |
| ECC сompatibility | ECC & Non-ECC |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Front panel connector | Yes |
| 12V power connector | Yes |
| RGB LED pin header | Yes |
| Motherboard form factor | ATX |
| USB 2.0 connectors | 3 |
| Number of COM connectors | 1 |
| Thunderbolt headers | 1 |
| USB4 Gen 2x2 ports quantity | 0 |
| USB4 Gen 3x2 ports quantity | 0 |
| PS/2 ports quantity | 0 |
| PCI Express x1 slots | 0 |
| PCI Express x1 (Gen 2.x) slots | 0 |
| PCI Express x1 (Gen 3.x) slots | 0 |
| PCI Express x1 (Gen 4.x) slots | 0 |
| PCI Express x4 (Gen 1.x) slots | 0 |
| PCI Express x4 (Gen 2.x) slots | 0 |
| PCI Express x4 (Gen 4.x) slots | 0 |
| PCI Express x8 slots | 0 |
| PCI Express x8 (Gen 1.x) slots | 0 |
| PCI Express x16 (Gen 2.x) slots | 0 |
| PCI Express x16 (Gen 3.x) slots | 0 |
| PCI Express x16 (Gen 3.x) @ dual x8/x8 mode slots | 0 |
| PCI slots | 0 |
| PCI-X slots | 0 |
| Mini PCI Express (Gen 1.x) slots | 0 |
| Mini PCI Express (Gen 2.x) slots | 0 |
| Mini PCI Express slot (full length) | 0 |
| Mini PCI Express slot (half-length) | 0 |
| RAID levels | 0, 1, 10 |
| Processor socket | Socket AM5 |
| Supported processor sockets | Socket AM5 |
| Number of chassis fan connectors | 4 |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| Motherboard chipset | AMD X670 |
| PCI Express x4 slots | 1 |
| Number of M.2 (M) slots | 4 |
| Compatible processor series | AMD Ryzen 7000 Series |
| Model Chipset | X670E |
| Gaming | Da |
| Format | ATX |
| Soclu Procesor | Socket AM5 |
| Tip Memorie | DDR5 |
| Memorie maxima | 192 GB |
| Tip slot interfata grafica | PCIe 5.0 x16 |
| Chipset audio integrat | Realtek |
| Canale audio | 7.1 |
| Wireless | Da |
| Bluetooth | Da |
| Sloturi M.2 | 4 |
| RJ-45 LAN | 1 |
| Numar sloturi memorie | 4 |
| USB Type-C | Da |
| USB 3.2 Gen 2x2 connectors | 0 |
| PCI Express OCuLink connectors (NVMe support) | 0 |
| Supported memory clock speeds | 4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200,7600,7800,8000 MHz |
| Producator | ASUS |
| Garantie | 36 |
