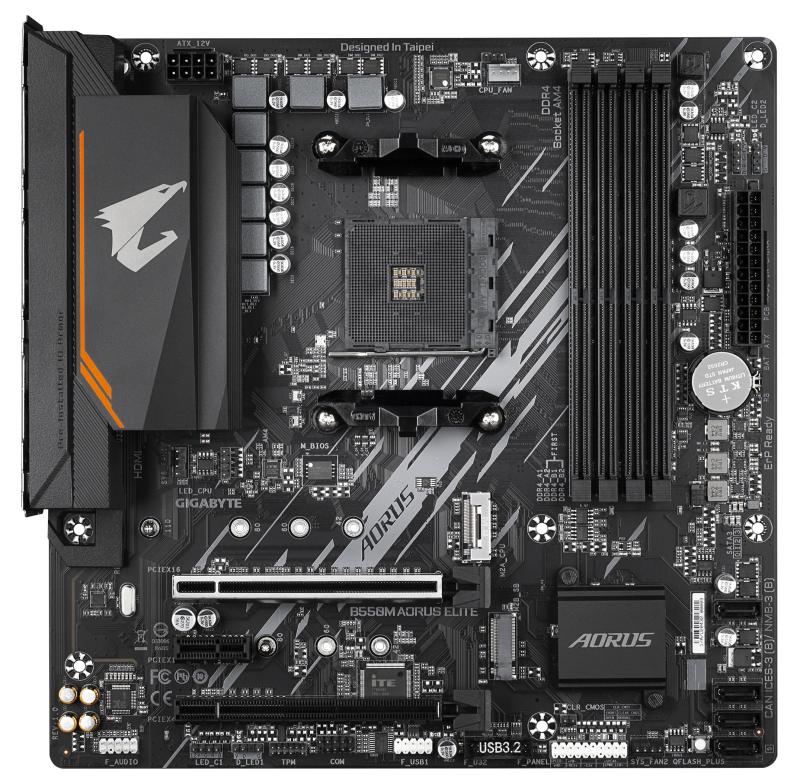

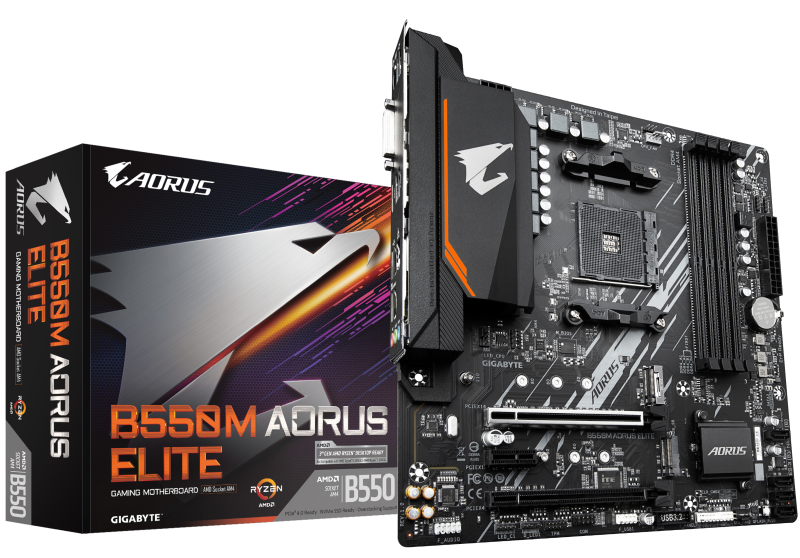

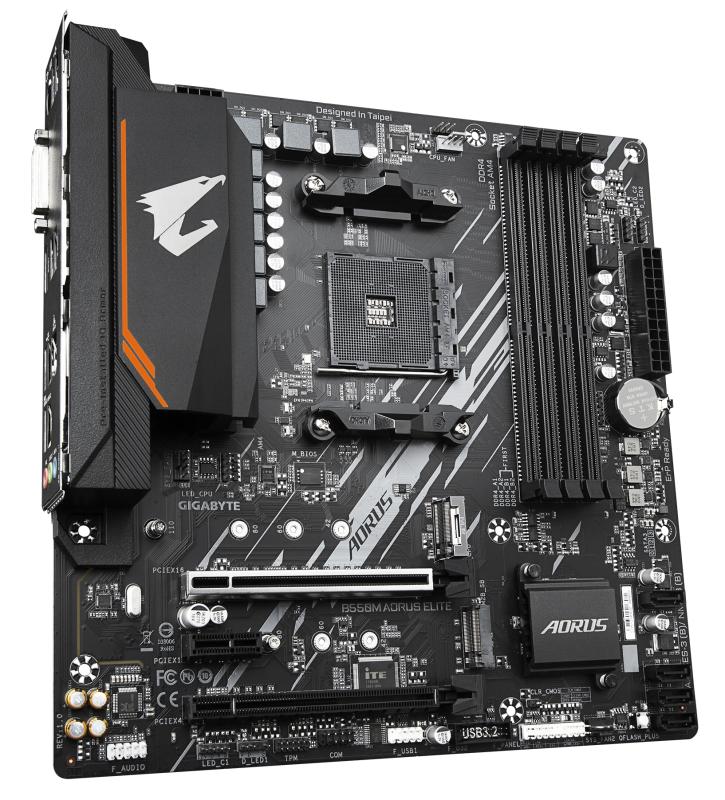

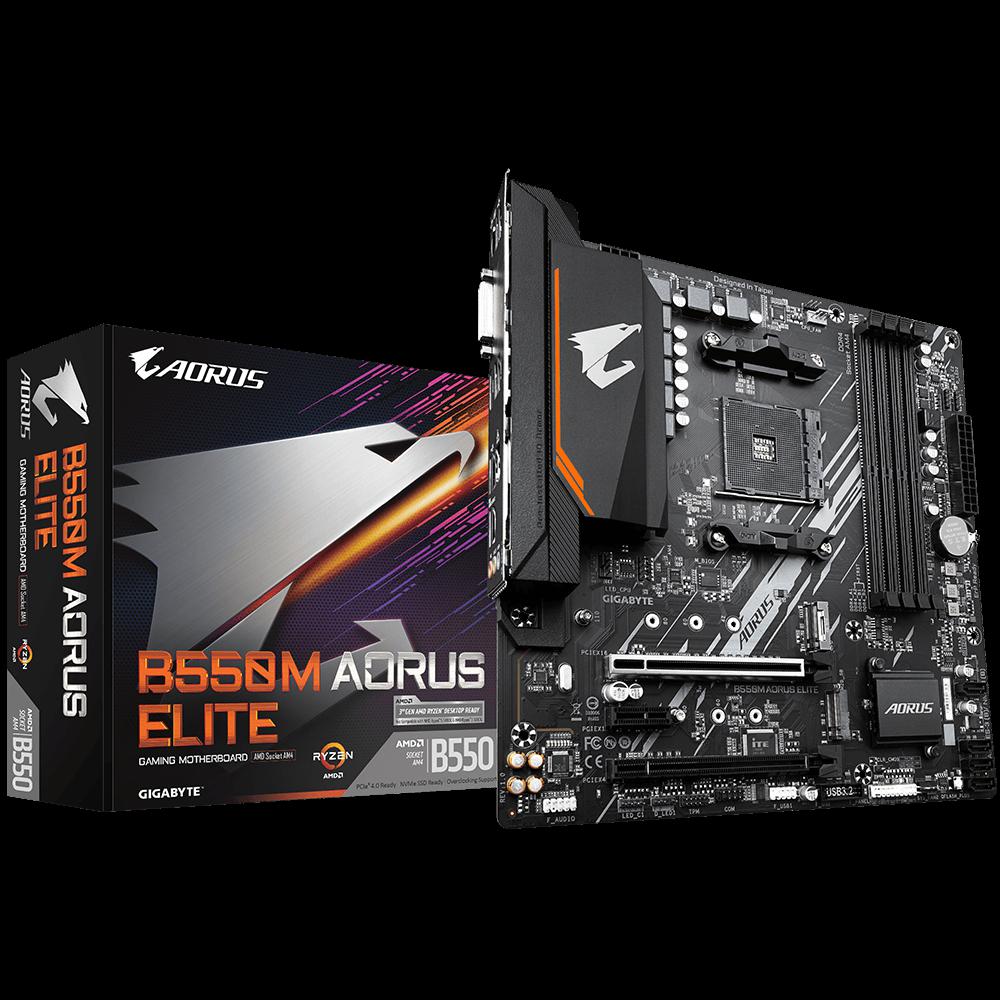

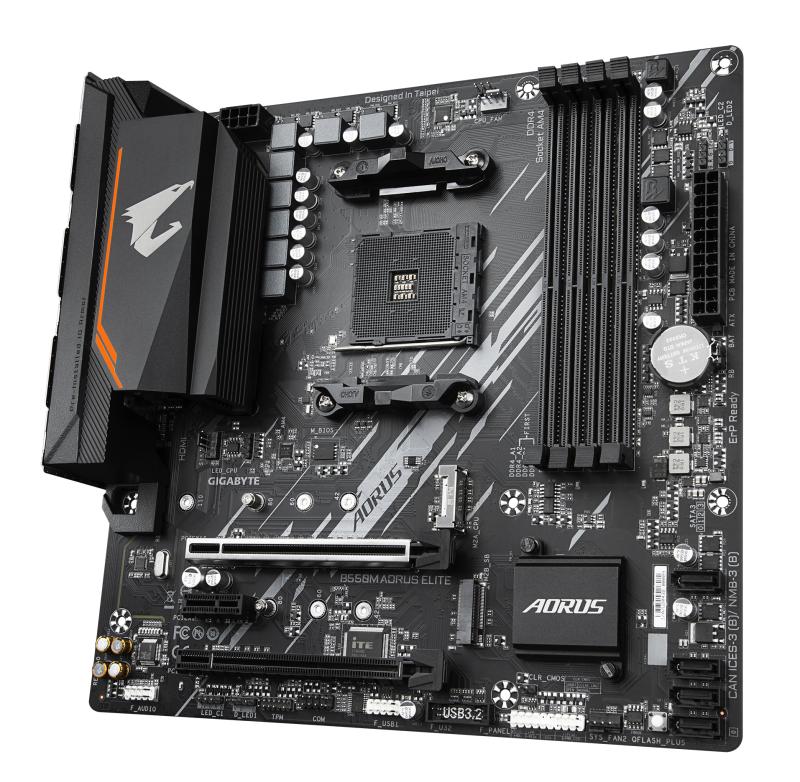

Placa de baza Gigabyte B550M AORUS ELITE, Socket AM4
Stoc epuizat
661,99lei
Stoc epuizat
Pentru a sprijini pe deplin cele mai recente procesoare AMD Ryzen ™ de la cel de-al 3-lea gen, placile de baza B550 sunt echipate cu solutia de putere finala, care este adevarata, digitala si cu mai multe faze. Dupa nenumarate experimente si testari, GIGABYTE prezinta placile de baza B550 imbatabile pentru entuziasti.
| Producator | GIGABYTE |
|---|---|
| Garantie | 36 |
| PCI | 0 |
| Serial-or-Paralel | No/No |
| Video-Connection | DVI/HDMI |
| Wi-Fi | No |
| CPU încorporat | No |
| Memory channels | Dual-channel |
| Cooling type | Active |
| Batteries included | Yes |
| HDMI | Da |
| Thunderbolt | Nu |
| Audio output channels | 7.1 channels |
| PCI Express x1 (Gen 3.x) slots | 1 |
| PCI Express x16 slots | 1 |
| Motherboard chipset | AMD B550 |
| Supported storage drive types | HDD & SSD |
| Supported memory types | DDR4-SDRAM |
| Number of M.2 (M) slots | 2 |
| Processor socket | Socket AM4 |
| DVI-D ports quantity | 1 |
| HDMI version | 2.1 |
| HDCP | Yes |
| Microphone in | Yes |
| HDMI ports quantity | 1 |
| Headphone outputs | 1 |
| Digital audio optical out | 1 |
| Maximum internal memory | 128 GB |
| Ethernet LAN | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| PCI Express x1 slots | 1 |
| Maximum resolution | 4096 x 2160 pixels |
| Parallel processing technology support | Not supported |
| VGA (D-Sub) ports quantity | 0 |
| DirectX version | 12.0 |
| Drivers included | Yes |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Unbuffered memory | Yes |
| Supported storage drive interfaces | M.2, SATA III |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 0 |
| Number of SATA III connectors | 4 |
| Number of SATA II connectors | 0 |
| Number of Parallel ATA connectors | 0 |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 2 |
| PS/2 ports quantity | 1 |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | AMD |
| Audio chip | Realtek ALC887 |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| Clear CMOS jumper | Yes |
| Maximum number of SMP processors | 1 |
| ECC сompatibility | ECC & Non-ECC |
| Number of HDDs supported | 4 |
| Discrete graphics support | Yes |
| Total number of SATA connectors | 4 |
| Front panel connector | Yes |
| TPM connector | Yes |
| 12V power connector | Yes |
| RGB LED pin header | Yes |
| ACPI version | 5.0 |
| Clear CMOS button | Yes |
| Desktop Management Interface (DMI) version | 2.7 |
| System Management BIOS (SMBIOS) version | 2.7 |
| Battery weight | 3 g |
| Lithium weight per battery | 0.07 g |
| Number of battery cells | 1 |
| Number of storage drives supported | 6 |
| Serial port headers | 1 |
| RAID levels | 0, 1, 10 |
| eSATA ports quantity | 0 |
| Firewire (IEEE 1394) ports | 0 |
| PCI Express x4 slots | 1 |
| USB 2.0 connectors | 1 |
| Supported processor sockets | Socket AM4 |
| Maximum internal memory supported by processor | 128 GB |
| Supported memory clock speeds | 4733 MHz |
| Number of displays supported | 2 |
| Power fan connector | Yes |
| Model Chipset | B550 |
| Gaming | Da |
| Chipset audio integrat | Realtek |
| Canale audio | 7.1 |
| Wireless | Nu |
| Bluetooth | Nu |
| Sloturi M.2 | 2 |
| RJ-45 LAN | 1 |
| Format | Micro-ATX (mATX) |
| Soclu Procesor | Socket AM4 |
| Tip Memorie | DDR4 |
| Numar sloturi memorie | 4 |
| Memorie maxima | 128 GB |
| Tip slot interfata grafica | PCIe 4.0 x16 |
| USB Type-C | Da |
| Compatible processor series | AMD Ryzen 3000 Series, AMD Ryzen Threadripper 3000 Series, AMD Ryzen Threadripper PRO 3000 WX-Series |
| PC health monitoring | CPU, Fan, LED, Power supply, Temperature, Voltage |
| Supported memory module capacities | 1GB, 2GB, 4GB, 16GB, 32GB |
| Serial ports quantity | 1 |
Nu există recenzii încă.
