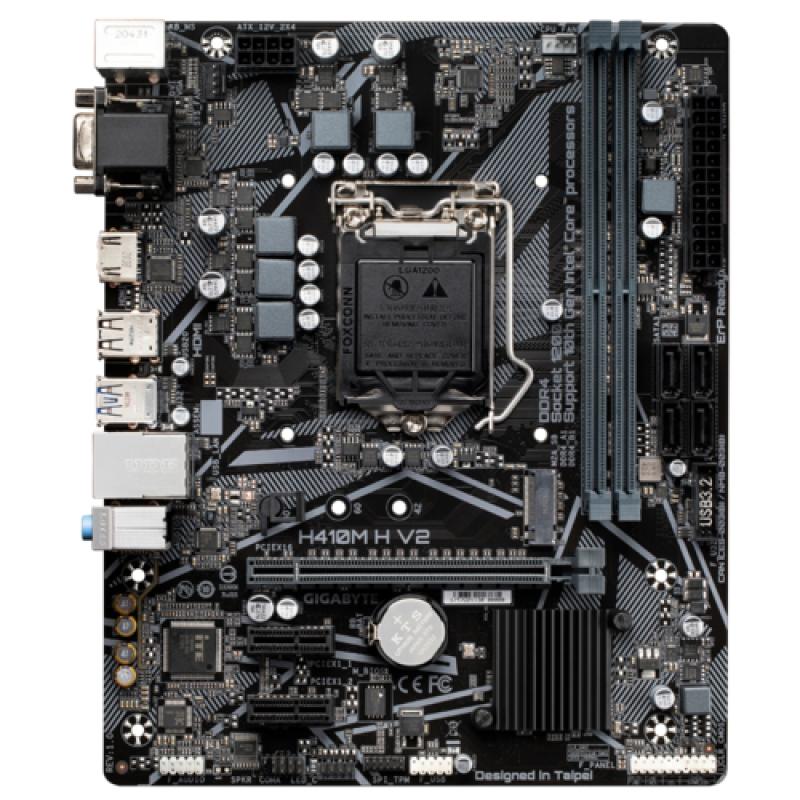

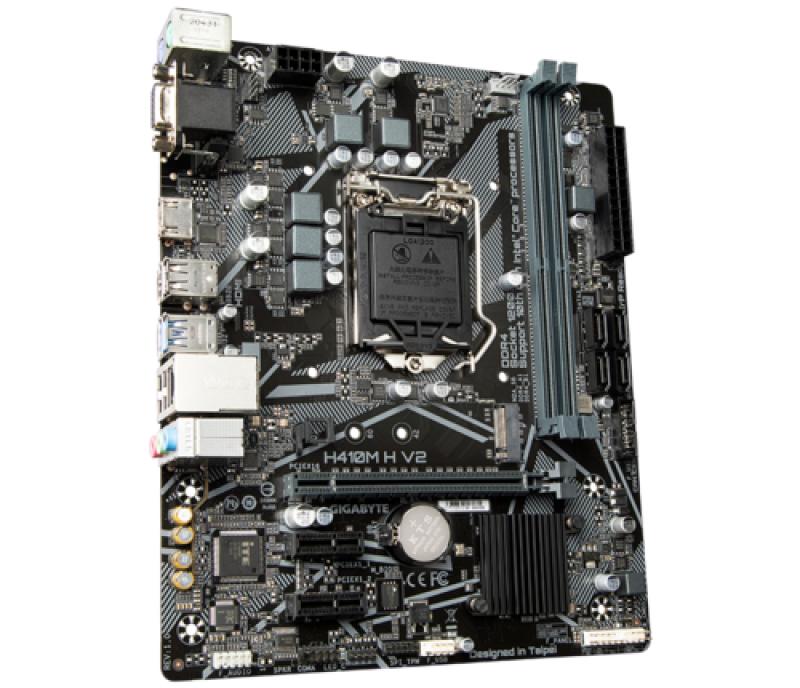

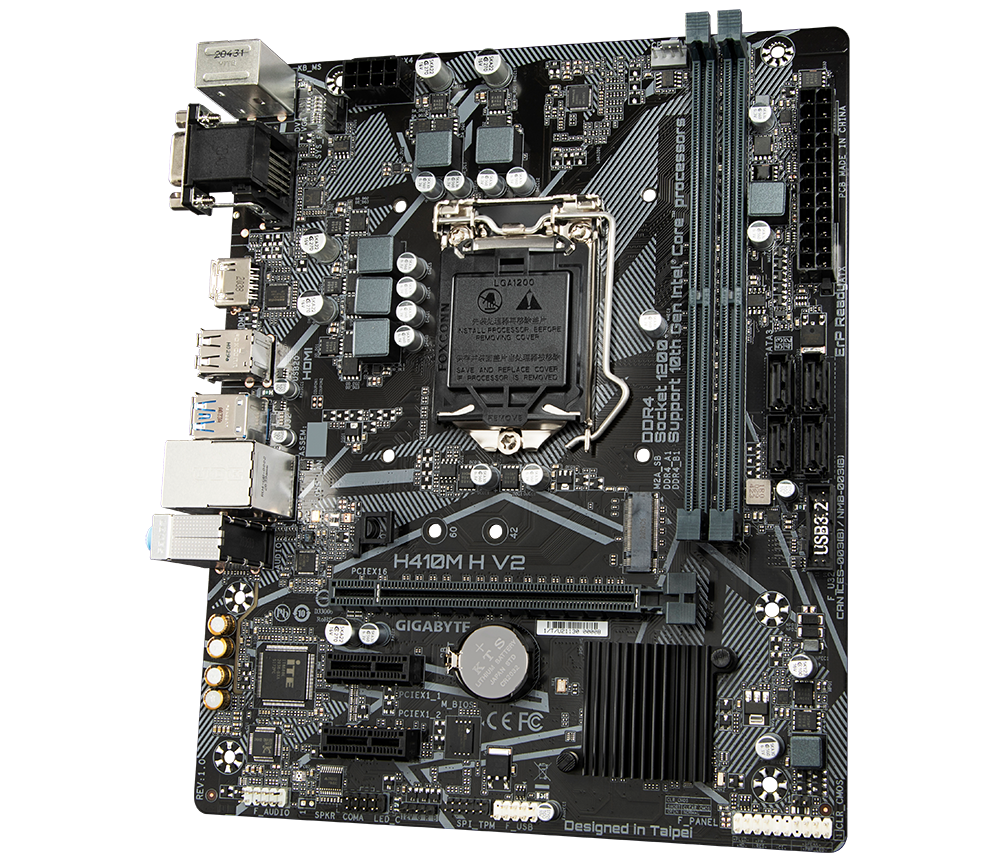

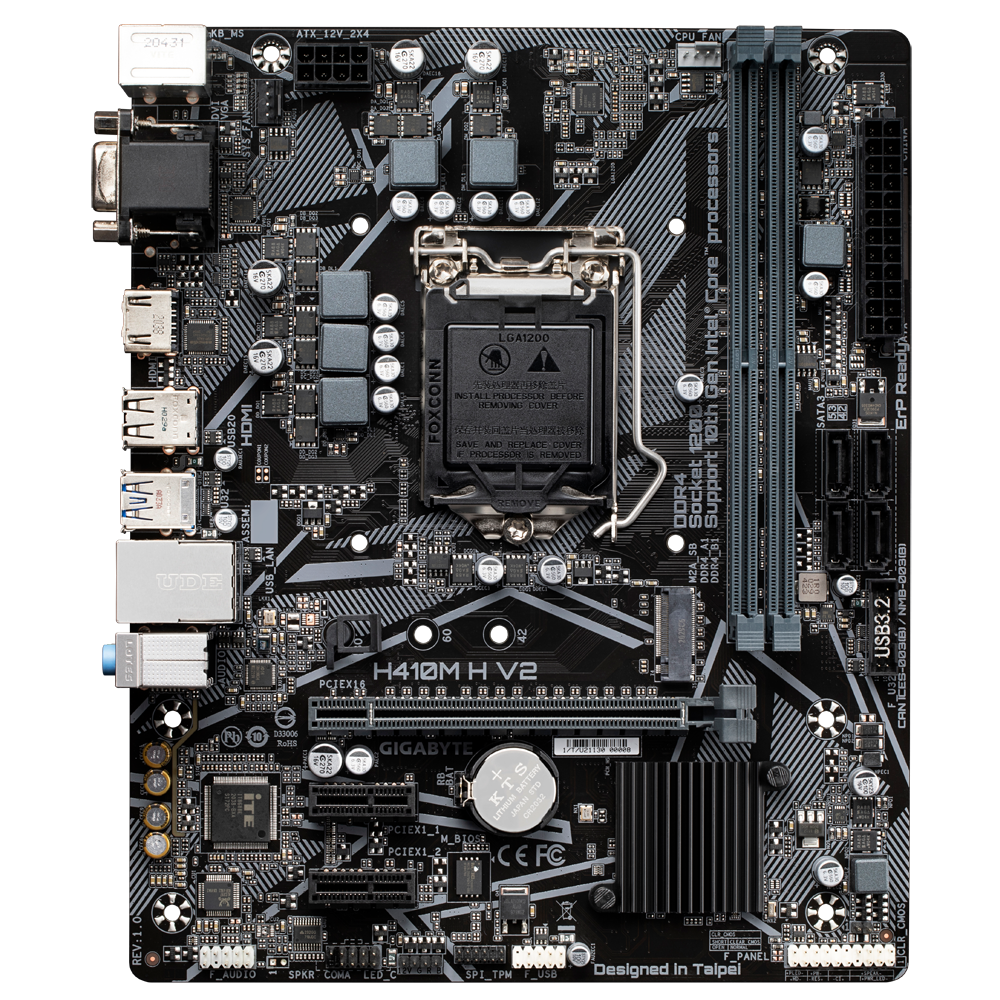

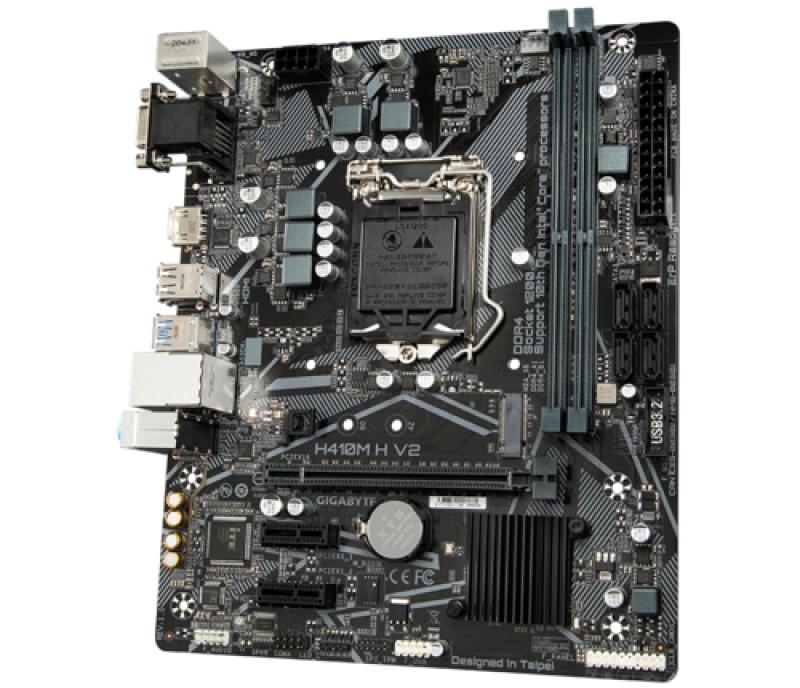

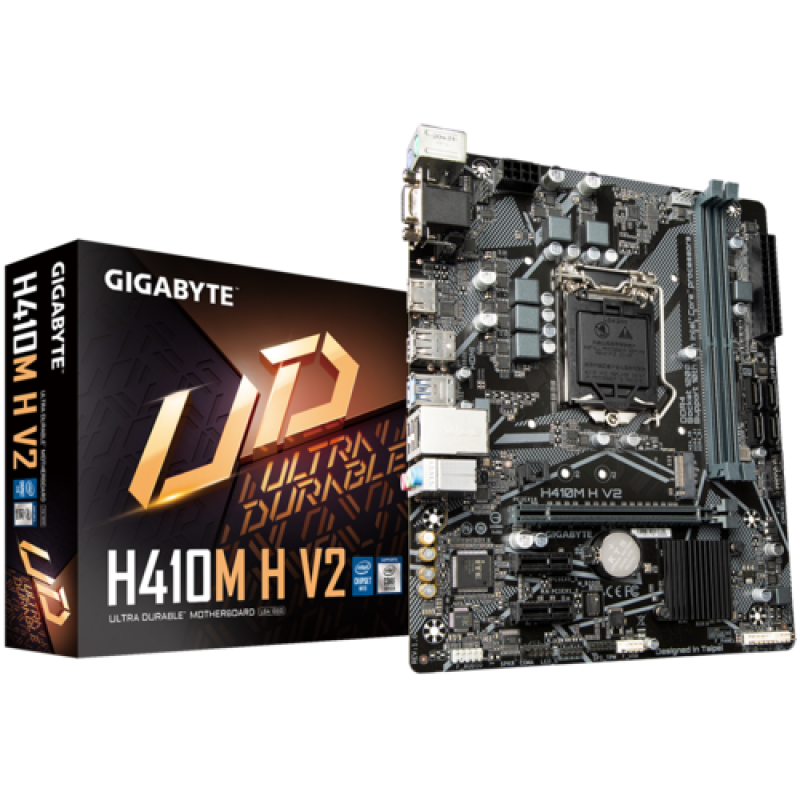

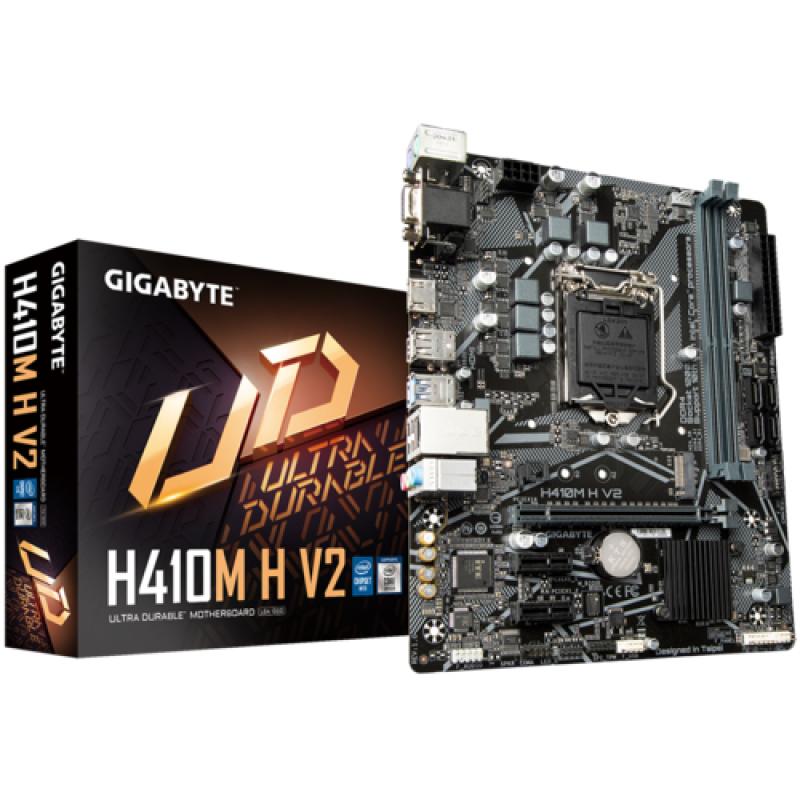

Placa de baza Gigabyte H410M H V2, LGA 1200
andreea. stoc rez. sunati pentru detalii
490,99lei
andreea. stoc rez. sunati pentru detalii
Placa de baza Gigabyte H410M H V2 LGA 1200 CPU Support for 10th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1200 package L3 cache varies with CPU (Please refer “CPU Support List” for more information.) Chipset Intel® H470 Express Chipset Memory Intel® Core™ i9/i7 processors: Support for DDR4 2933/2666/2400/2133 MHz memory modules Intel® Core™ i5/i3/Pentium®/Celeron® processors: Support for DDR4 2666/2400/2133 MHz memory modules 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (Please refer “Memory Support List” for more information.) Onboard Graphics Integrated Graphics Processor-Intel® HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz 1 x HDMI ports, supporting a maximum resolution of 4096×2160@30 Hz * Support for HDMI 1.4 version and HDCP 2.3. Maximum shared memory of 512 MB Audio Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE’s website for details on configuring the audio software. LAN Intel® GbE LAN chip (1 Gbit/100 Mbit)
| Producator | GIGABYTE |
|---|---|
| Garantie | 36 |
| PCI | 0 |
| Serial-or-Paralel | No/No |
| Video-Connection | VGA/HDMI |
| Wi-Fi | No |
| Onboard-CPU | No |
| Memory channels | Dual-channel |
| RAID support | Yes |
| Batteries included | Yes |
| HDMI | Da |
| Thunderbolt | Nu |
| PCI Express x16 (Gen 3.x) slots | 1 |
| Audio output channels | 7.1 channels |
| Number of memory slots | 2 |
| Supported storage drive types | HDD & SSD |
| Supported memory types | DDR4-SDRAM |
| Number of M.2 (M) slots | 1 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| Ethernet LAN | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| Maximum internal memory | 64 GB |
| DirectX version | 12.0 |
| DVI-D ports quantity | 0 |
| Memory slots type | DIMM |
| Unbuffered memory | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 0 |
| Number of SATA III connectors | 4 |
| Number of SATA II connectors | 0 |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| EPS power connector (8-pin) | Yes |
| PS/2 ports quantity | 1 |
| Motherboard form factor | micro ATX |
| BIOS memory size | 256 Mbit |
| ECC сompatibility | ECC & Non-ECC |
| Number of HDDs supported | 4 |
| RAID levels | 0, 1, 5, 10 |
| Total number of SATA connectors | 4 |
| Front panel connector | Yes |
| 12V power connector | Yes |
| Motherboard chipset family | Intel |
| ACPI version | 5.0 |
| Clear CMOS button | Yes |
| Battery weight | 3 g |
| Lithium weight per battery | 0.07 g |
| Number of battery cells | 1 |
| USB 2.0 connectors | 1 |
| PC health monitoring | CPU, Fan, Temperature, Voltage |
| Processor socket | LGA 1200 (Socket H5) |
| Supported processor sockets | LGA 1200 (Socket H5) |
| Supported storage drive interfaces | M.2, PCI Express 3.0, SATA III |
| Number of storage drives supported | 5 |
| PCI Express x1 slots | 2 |
| Audio connector | Yes |
| Supported memory module capacities | 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB |
| Power fan connector | Yes |
| Model Chipset | H410 |
| Soclu Procesor | Socket 1200 |
| Numar sloturi memorie | 2 |
| Memorie maxima | 64 GB |
| Tip slot interfata grafica | PCIe 3.0 x16 |
| Chipset audio integrat | Realtek |
| Canale audio | 7.1 |
| Wireless | Nu |
| Bluetooth | Nu |
| Sloturi M.2 | 1 |
| RJ-45 LAN | 1 |
| Gaming | Nu |
| Format | Micro-ATX (mATX) |
| Tip Memorie | DDR4 |
| USB Type-C | Da |
| BIOS type | UEFI |
| Maximum internal memory supported by processor | 64 GB |
| Supported memory clock speeds | 2933 MHz |
| Motherboard chipset | Intel H410 |
