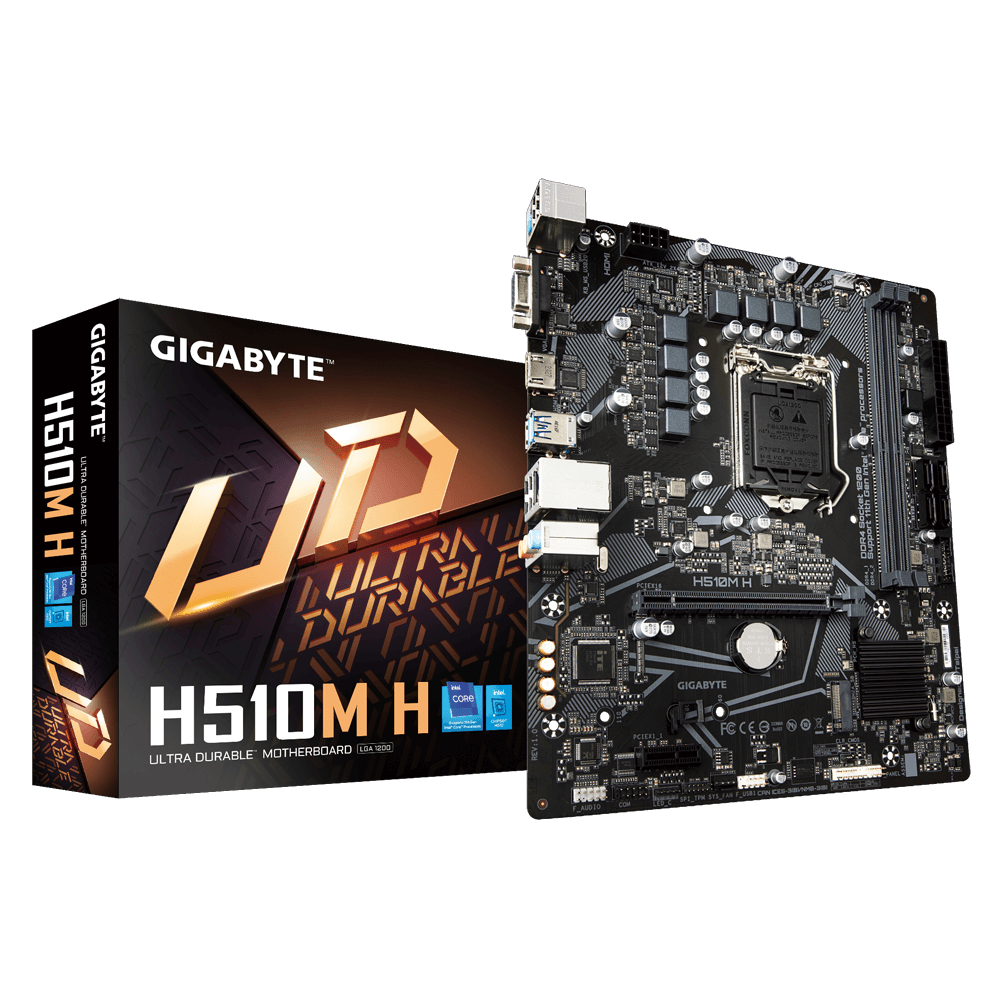

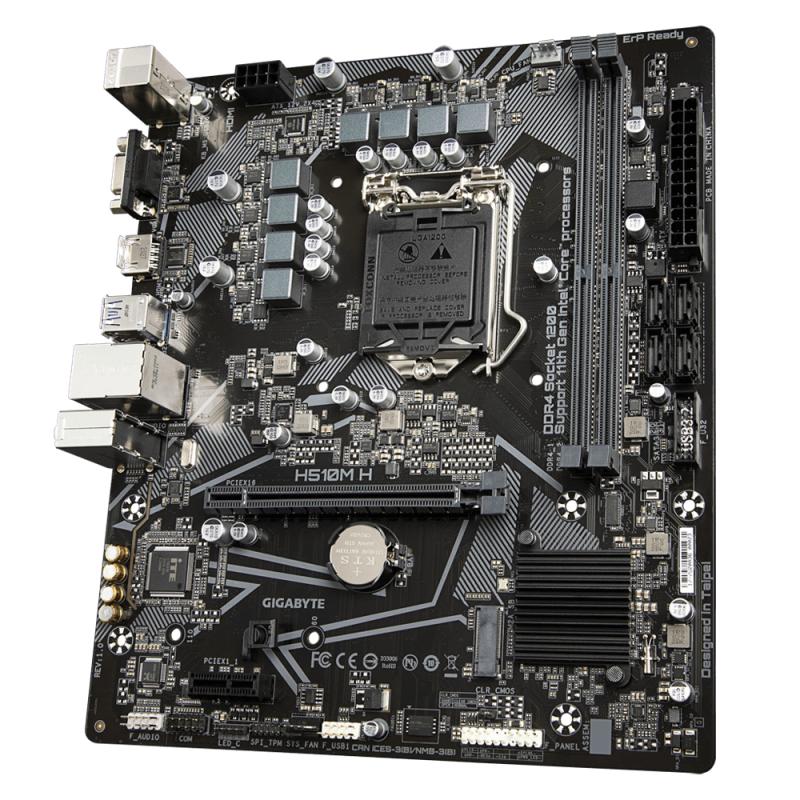

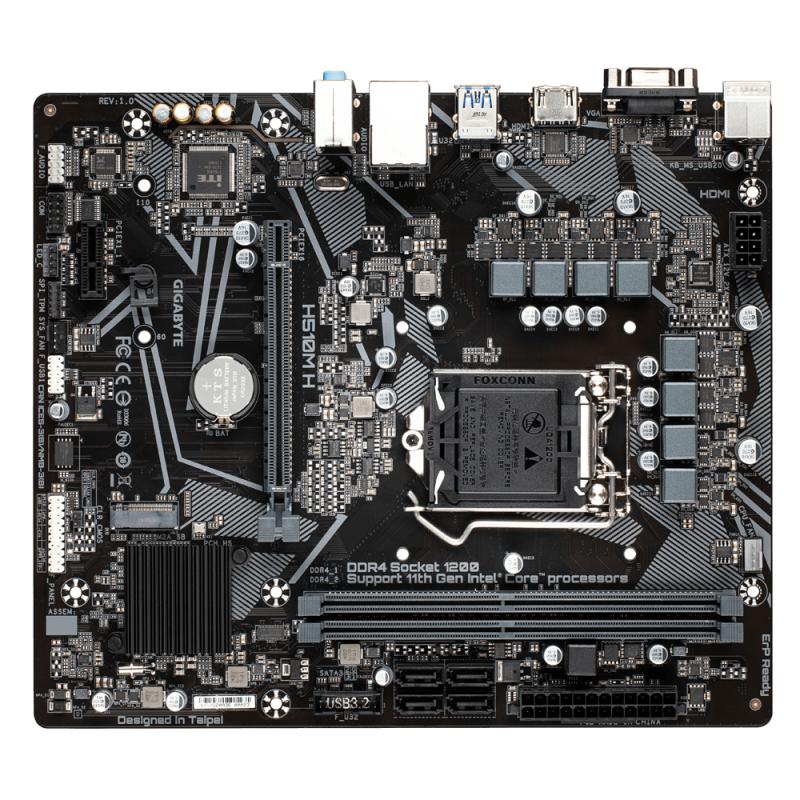

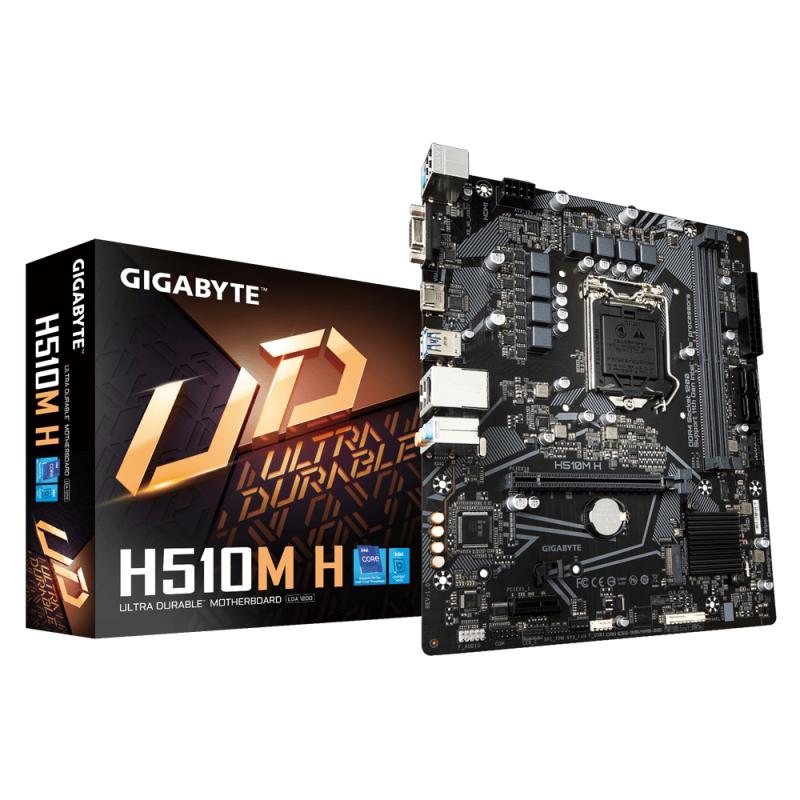

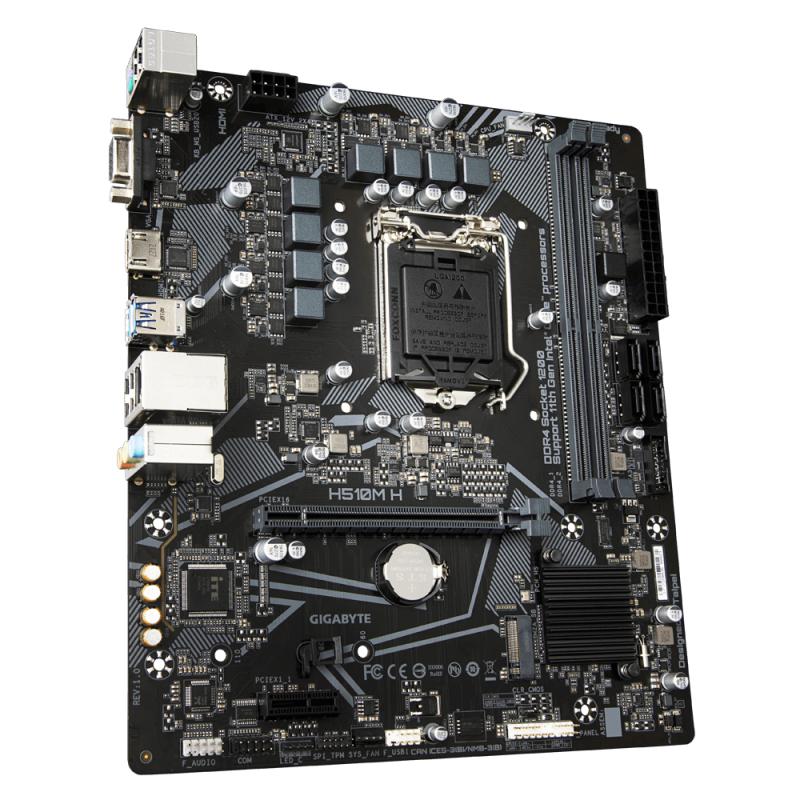

Placa de baza Gigabyte H510M H, LGA 1200
Stoc epuizat
450,99lei
Stoc epuizat
Furnizarea mai curata si mai eficienta a energiei catre procesor, impreuna cu o performanta termica mai buna, asigura stabilitatea la frecvente ridicate ale procesorului si la sarcini mari.
- MOSFET-uri cu RDS(on) scazut in 6+2 faze;
- Condensatoare solide pentru a imbunatati raspunsul tranzitoriu si a minimiza oscilatiile;
- Conector de alimentare a procesorului cu 8 pini cu pin solid.
Capacitatea maxima de memorie a placii de baza H510 este de 64 GB. Dupa ce Intel a actualizat codul de referinta al memoriei, un singur slot poate suporta pana la 32 GB. Prin urmare, cu 2 DIMM populate pe fiecare canal pe ambele canale, capacitatea totala de memorie este de 64 GB, care era disponibila doar pe platformele High End Desktop (HEDT). Pentru utilizatorii care raman mereu in pana de capacitate de memorie, exista acum mai multa latime de banda pentru aplicatiile cu utilizare intensiva a memoriei, cum ar fi randarea si editarea video.
| Producator | GIGABYTE |
|---|---|
| Garantie | 36 |
| PCI | 0 |
| Serial-or-Paralel | No/No |
| Video-Connection | VGA/HDMI |
| Wi-Fi | No |
| CPU încorporat | No |
| Memory channels | Dual-channel |
| HDMI | Da |
| Thunderbolt | Nu |
| Audio output channels | 7.1 channels |
| PCI Express x16 slots | 1 |
| Number of memory slots | 2 |
| Supported storage drive types | HDD & SSD |
| Supported memory types | DDR4-SDRAM |
| Number of M.2 (M) slots | 1 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI version | 1.4 |
| HDCP | Yes |
| Microphone in | Yes |
| HDMI ports quantity | 1 |
| Ethernet LAN | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| Maximum internal memory | 64 GB |
| PCI Express x1 slots | 1 |
| Maximum resolution | 4096 x 2160 pixels |
| Parallel processing technology support | Not supported |
| DVI-D ports quantity | 0 |
| Memory slots type | DIMM |
| Unbuffered memory | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 0 |
| Number of SATA III connectors | 4 |
| Number of Parallel ATA connectors | 0 |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| EPS power connector (8-pin) | Yes |
| PS/2 ports quantity | 1 |
| Motherboard form factor | micro ATX |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| Clear CMOS jumper | Yes |
| ECC сompatibility | ECC & Non-ECC |
| Front panel connector | Yes |
| TPM connector | Yes |
| 12V power connector | Yes |
| RGB LED pin header | Yes |
| Motherboard chipset family | Intel |
| ACPI version | 5.0 |
| Desktop Management Interface (DMI) version | 2.7 |
| System Management BIOS (SMBIOS) version | 2.7 |
| Serial port headers | 1 |
| Headphone outputs | 3 |
| USB 2.0 connectors | 1 |
| Processor socket | LGA 1200 (Socket H5) |
| Supported processor sockets | LGA 1200 (Socket H5) |
| Supported memory clock speeds | 2133,2400,2666,2933,3000,3200 MHz |
| Supported storage drive interfaces | M.2, PCI Express 3.0, SATA III |
| Number of storage drives supported | 5 |
| Number of chassis fan connectors | 1 |
| Motherboard chipset | Intel H510 Express |
| PC health monitoring | Fan, Temperature, Voltage |
| Model Chipset | H510 |
| Gaming | Da |
| Soclu Procesor | Socket 1200 |
| Numar sloturi memorie | 2 |
| Memorie maxima | 64 GB |
| Chipset audio integrat | Realtek |
| Canale audio | 7.1 |
| Wireless | Nu |
| Bluetooth | Nu |
| Sloturi M.2 | 1 |
| RJ-45 LAN | 1 |
| Format | Micro-ATX (mATX) |
| Tip Memorie | DDR4 |
| Tip slot interfata grafica | PCIe 4.0 x16 |
| USB Type-C | Da |
