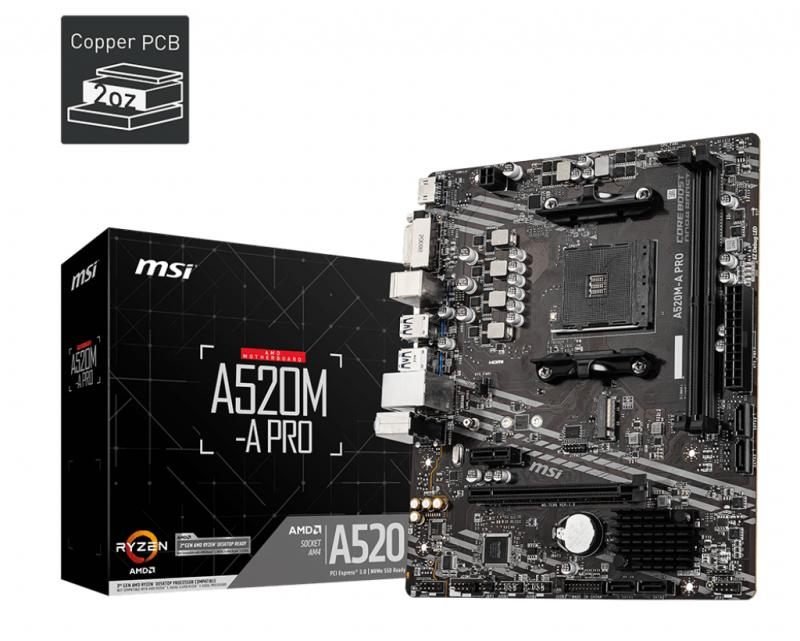

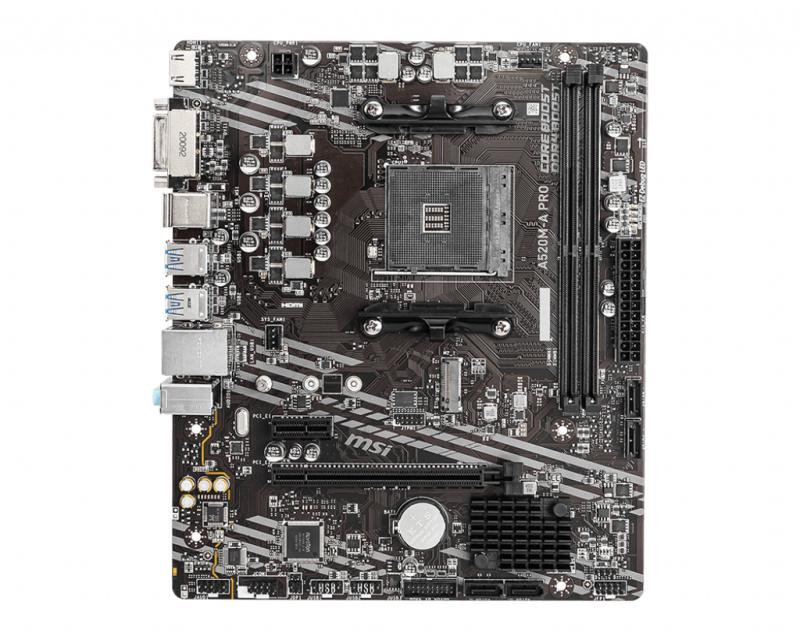

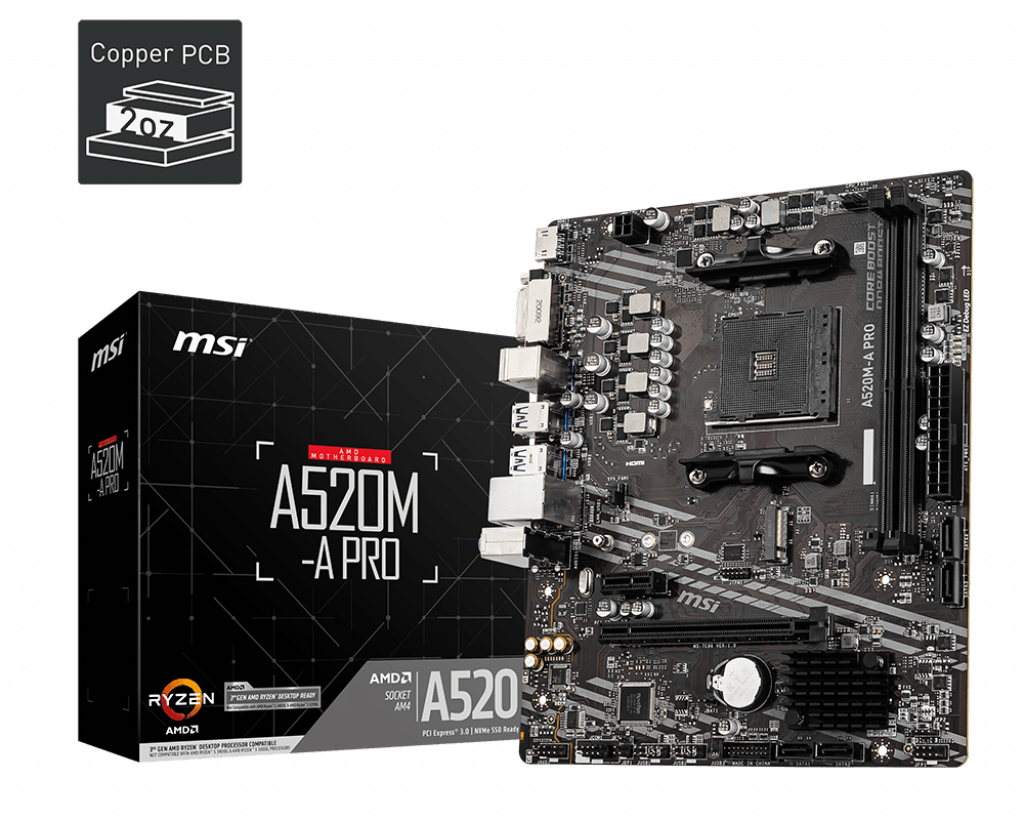

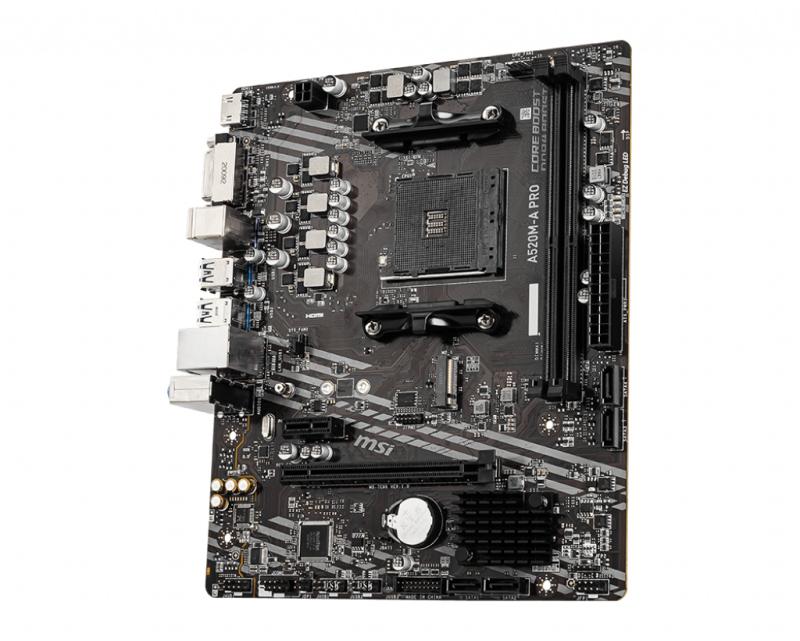

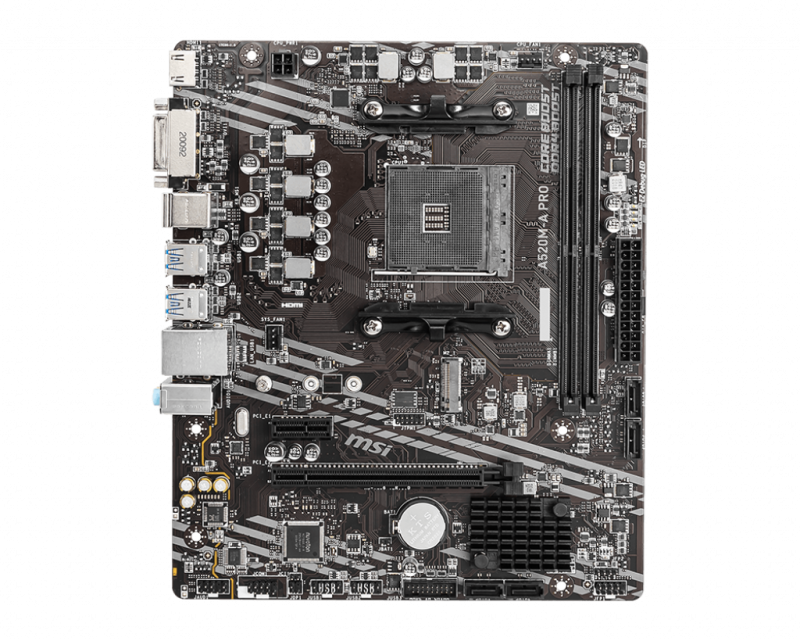

Placa de baza MSI A520M-A PRO, Socket AM4
Stoc epuizat
428,99lei
Stoc epuizat
Seria PRO ajuta utilizatorii sa lucreze mai inteligent, oferind o experienta eficienta si productiva. Dispunand de functionalitate stabila si de asamblare de inalta calitate, placile de baza din seria PRO asigura nu numai fluxuri de lucru profesionale optimizate, dar si mai putine probleme tehnice si longevitate. Placile de baza MSI au un design convenabil si inteligent pentru utilizatorii de DIY, nenumarate instrumente de ajustare si depanare a sistemului sunt la dispozitia dvs. pentru a impinge dispozitivul spre inaltimi noi si pentru a satisface chiar si cel mai solicitant modificator. MSI asigura ca este foarte usor sa instalati propria placa de baza fara nici o problema.
| Producator | MSI |
|---|---|
| Garantie | 36 |
| PCI | 1 |
| Serial-or-Paralel | Yes/No |
| Video-Connection | DVI/HDMI |
| Wi-Fi | No |
| Onboard-CPU | No |
| Memory channels | Dual-channel |
| RAID support | Yes |
| HDMI | Da |
| Thunderbolt | Nu |
| PCI Express x16 (Gen 3.x) slots | 1 |
| Audio output channels | 7.1 channels |
| PCI Express x1 (Gen 3.x) slots | 1 |
| On-board graphics card | No |
| Number of memory slots | 2 |
| Supported storage drive types | HDD & SSD |
| Supported memory types | DDR4-SDRAM |
| LAN controller | Realtek RTL8111H |
| Processor socket | Socket AM4 |
| Number of M.2 (M) slots | 1 |
| DVI-D ports quantity | 1 |
| Microphone in | Yes |
| HDMI ports quantity | 1 |
| Headphone outputs | 1 |
| Ethernet LAN | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| Maximum internal memory | 64 GB |
| Maximum resolution | 4096 x 2160 pixels |
| VGA (D-Sub) ports quantity | 0 |
| Compatible processor series | AMD Ryzen 3000 Series |
| Memory slots type | DIMM |
| Unbuffered memory | Yes |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 0 |
| Number of SATA III connectors | 4 |
| Number of SATA II connectors | 0 |
| Number of SATA connectors | 0 |
| Number of Parallel ATA connectors | 0 |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 2 |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | AMD |
| mSATA ports quantity | 0 |
| Maximum number of SMP processors | 1 |
| ECC сompatibility | ECC & Non-ECC |
| Front panel connector | Yes |
| PS/2 ports quantity | 0 |
| RAID levels | 0, 1, 10 |
| Chassis intrusion connector | Yes |
| eSATA ports quantity | 0 |
| Firewire (IEEE 1394) ports | 0 |
| Audio chip | Realtek ALC892 |
| Number of HDDs supported | 5 |
| Motherboard chipset | AMD A520 |
| Number of displays supported | 2 |
| Supported memory clock speeds | 1866,2133,2400,2667,2800,2933,3000,3066,3200,3466,3600,3733,3866,4000,4133,4266,4400,4600 MHz |
| Supported storage drive interfaces | PCI Express 3.0, SATA |
| Number of mounting holes | 8 |
| Model Chipset | A520 |
| Numar sloturi memorie | 2 |
| Memorie maxima | 64 GB |
| Tip slot interfata grafica | PCIe 3.0 x16 |
| Chipset audio integrat | Realtek |
| Canale audio | 8.0 |
| Wireless | Nu |
| Bluetooth | Nu |
| Sloturi M.2 | 1 |
| RJ-45 LAN | 1 |
| Gaming | Nu |
| Format | Micro-ATX (mATX) |
| Soclu Procesor | Socket AM4 |
| Tip Memorie | DDR4 |
| USB Type-C | Da |
