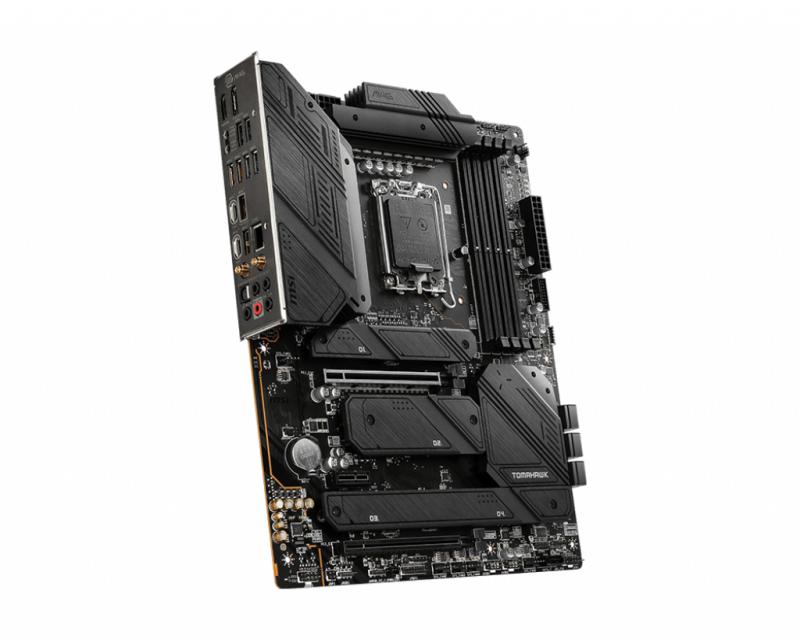

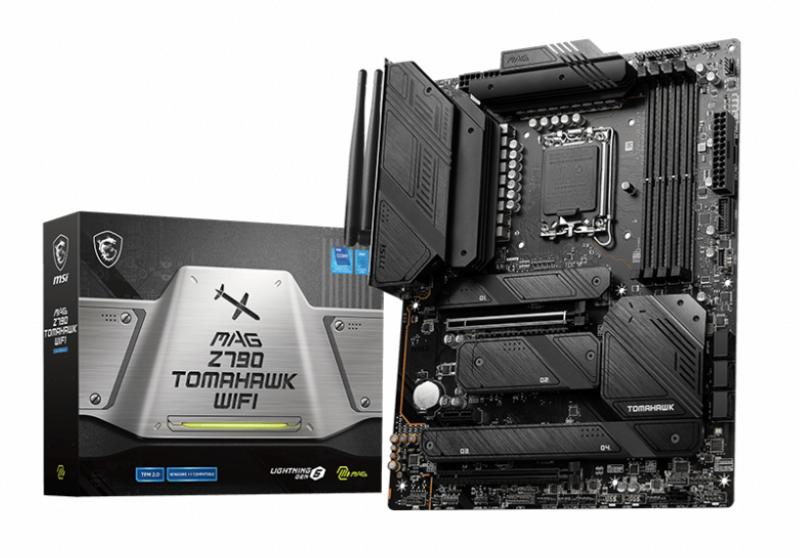

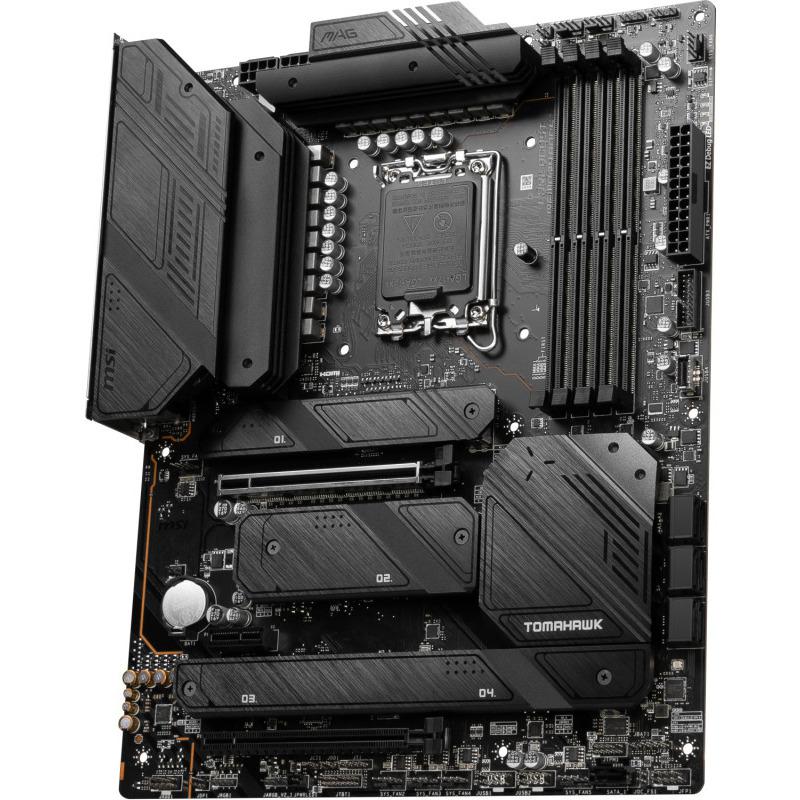

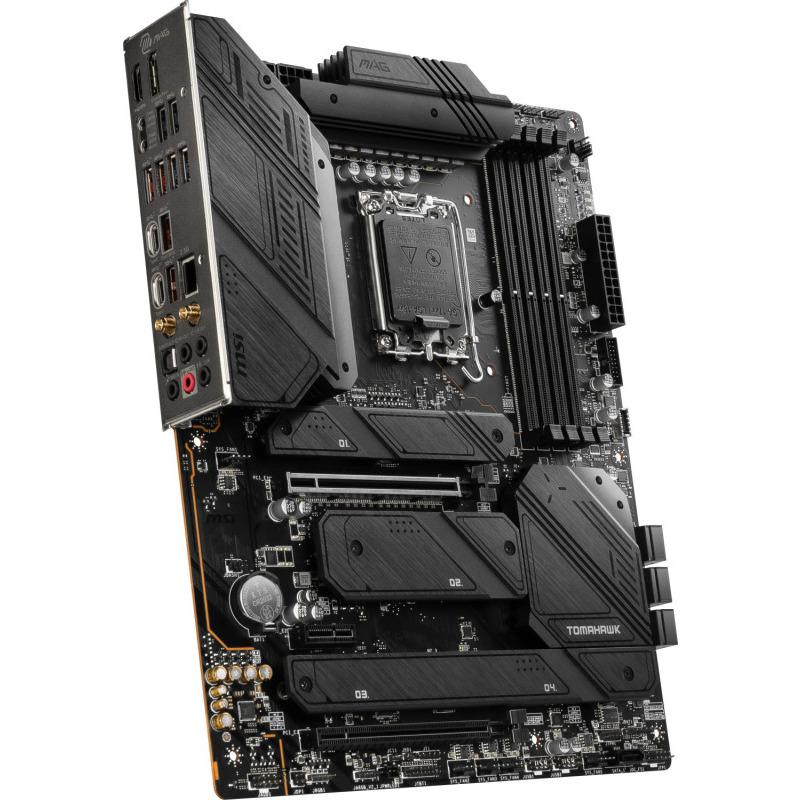

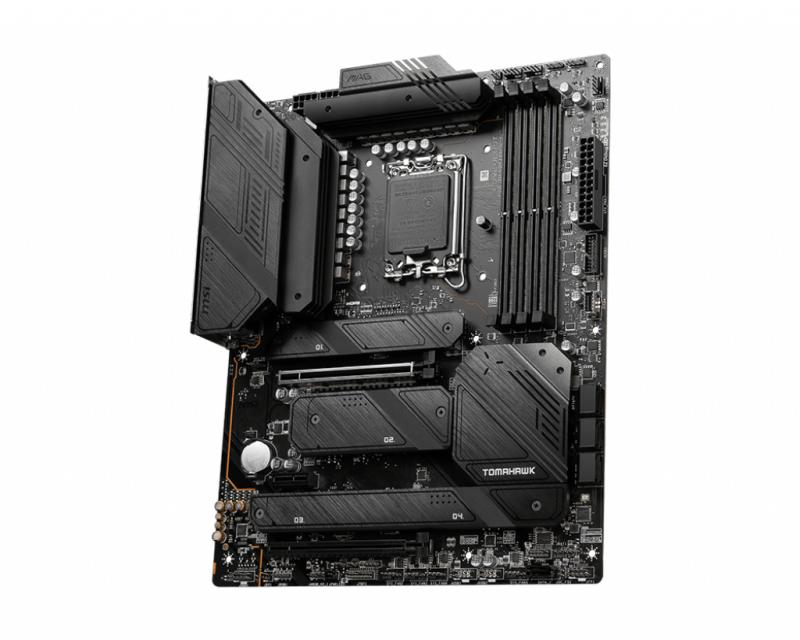

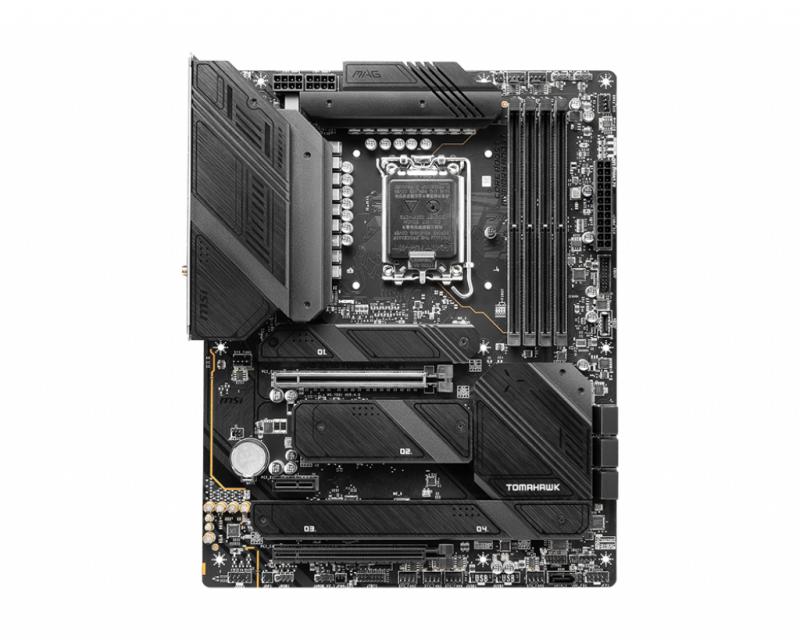

Placa de baza MSI MAG Z790 TOMAHAWK WIFI, LGA 1700
Stoc epuizat
2.242,99lei
Stoc epuizat

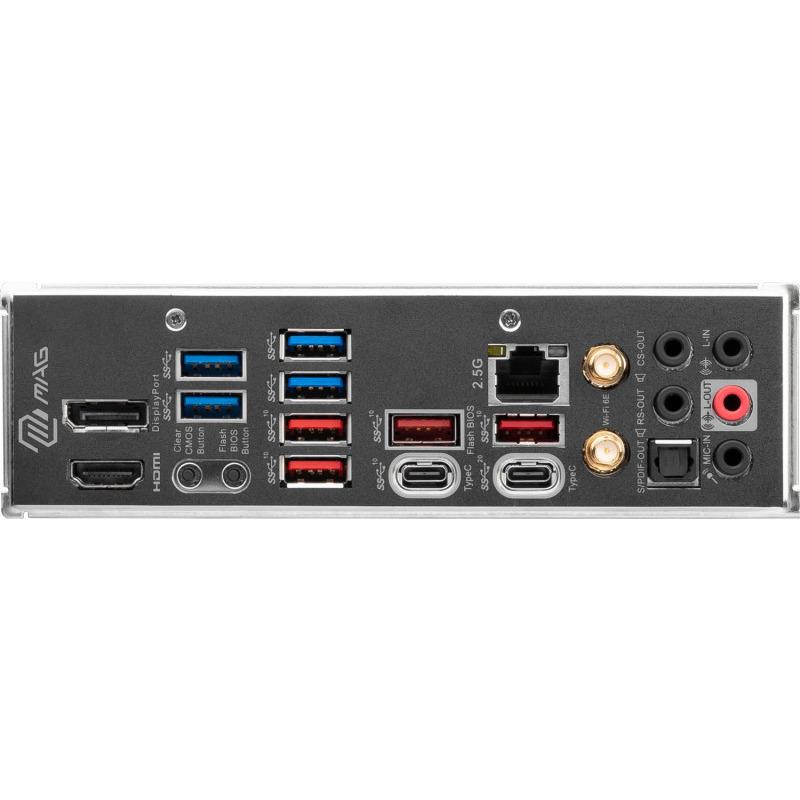

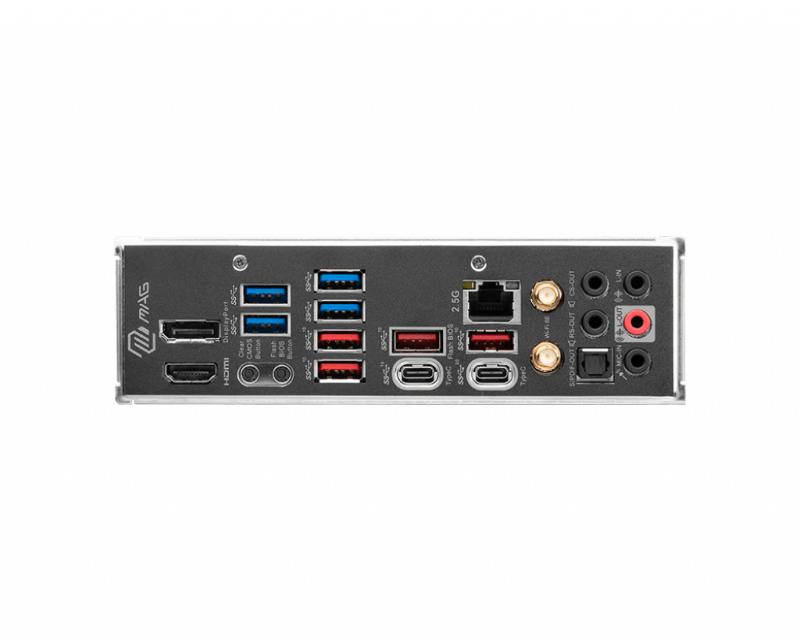

Placa de baza MSI MAG Z790 TOMAHAWK WIFI DDR5 LGA 1700 SPECIFICATIONS Model Name MAG Z790 TOMAHAWK WIFI CPU Support Supports 12th/ 13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors CPU Socket LGA 1700 Chipset Intel® Z790 Chipset Expansion Slots 1x PCIe 5.0 x16 slot, 1x PCIe 4.0 x16 slot, 1x PCIe 3.0 x1 slot Display Interface Support 4K@60Hz as specified in HDMI™ 2.1, DisplayPort 1.4 – Requires Processor Graphics Memory Support 4 DIMMs, Dual Channel DDR5 7200+MHz (OC) Storage 4x M.2 Gen4 x4 64Gbps slots, 7x SATA 6Gb/s ports USB ports 1x USB 3.2 Gen 2×2 20Gbps (Type-C), 6x USB 3.2 Gen 2 10Gbps (4 Type-A + 2 Type-C), 6x USB 3.2 Gen 1 5Gbps (Type-A), 4x USB 2.0 LAN 1x Intel® 2.5Gbps LAN Wireless / Bluetooth Intel® Wi-Fi 6E, Bleutooth 5.2 Audio 8-Channel (7.1) HD Audio with Audio Boost 5
| Producator | MSI |
|---|---|
| Garantie | 36 |
| Wi-Fi | Yes |
| Memory channels | Dual-channel |
| RAID support | Yes |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| HDMI | Da |
| Thunderbolt | Nu |
| Audio output channels | 7.1 channels |
| Supported storage drive types | HDD & SSD |
| HDMI version | 2.1 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| HDMI ports quantity | 1 |
| S/PDIF out port | Yes |
| Ethernet LAN | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| Maximum internal memory | 192 GB |
| Parallel processing technology support | Not supported |
| VGA (D-Sub) ports quantity | 0 |
| Number of memory slots | 4 |
| Unbuffered memory | Yes |
| USB 2.0 connectors | 2 |
| Number of SATA II connectors | 0 |
| Number of SATA connectors | 0 |
| Front panel audio connector | Yes |
| CPU fan connector | Yes |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| Processor socket | LGA 1700 |
| Supported processor sockets | LGA 1700 |
| Maximum internal memory supported by processor | 192 GB |
| Supported memory types | DDR5-SDRAM |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Front panel connector | Yes |
| TPM connector | Yes |
| RGB LED pin header | Yes |
| Motherboard form factor | ATX |
| Motherboard chipset family | Intel |
| ECC сompatibility | Non-ECC |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Motherboard chipset | Intel Z790 |
| Chassis intrusion connector | Yes |
| Number of M.2 (M) slots | 4 |
| PCI Express x16 (Gen 5.x) slots | 2 |
| PCI Express x1 (Gen 4.x) slots | 1 |
| Compatible processor series | Intel® Celeron®, Intel® Pentium® Gold |
| Supported storage drive interfaces | M.2, PCI Express |
| System Management BIOS (SMBIOS) version | 3.5 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
| ACPI version | 6.4 |
| Supported memory clock speeds | 4800,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200 MHz |
| RAID levels | 0, 5, 10 |
| Model Chipset | Z790 |
| Format | ATX |
| Soclu Procesor | Socket 1700 |
| Tip Memorie | DDR5 |
| Memorie maxima | 192 GB |
| Tip slot interfata grafica | N/A |
| Chipset audio integrat | Realtek |
| Canale audio | 7.1 |
| Wireless | Da |
| Bluetooth | Da |
| Sloturi M.2 | 4 |
| RJ-45 LAN | 1 |
| Gaming | Nu |
| Numar sloturi memorie | 4 |
| USB Type-C | Da |
| Number of SATA III connectors | 7 |
Nu există recenzii încă.
