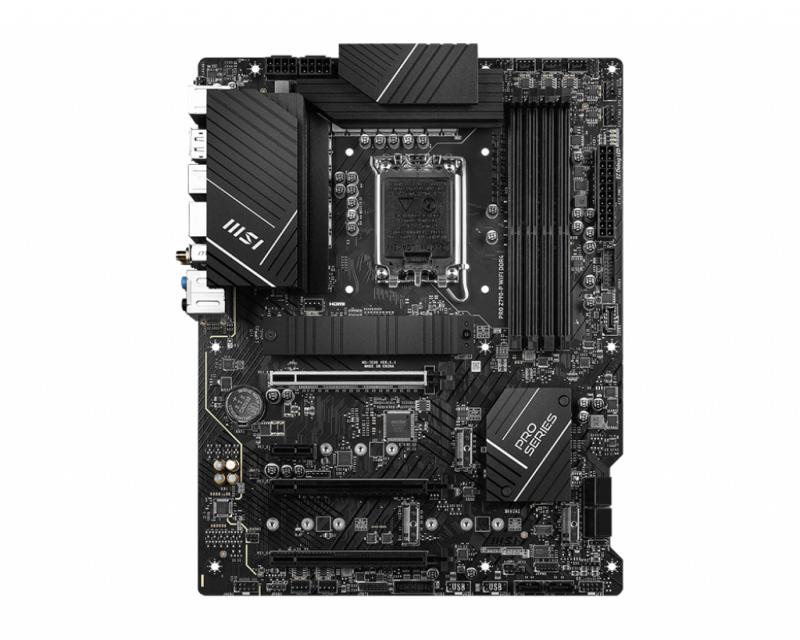

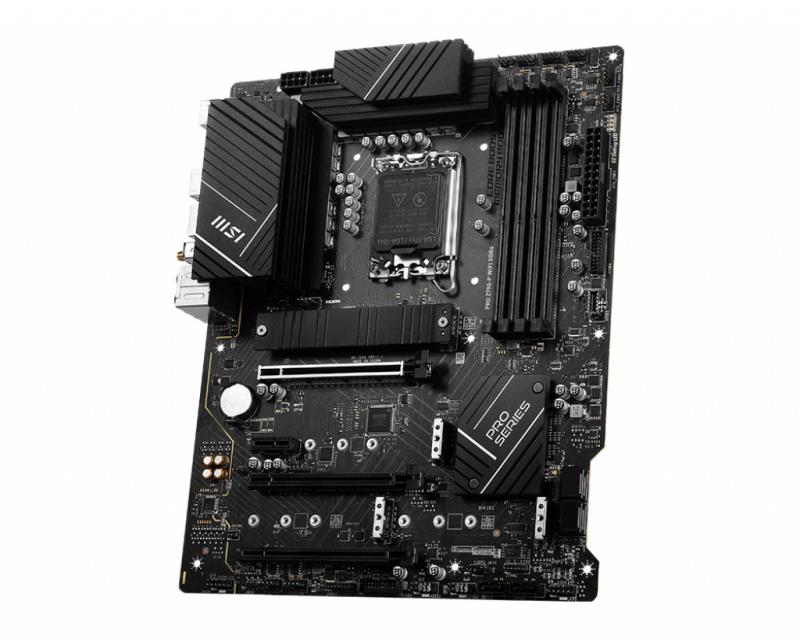

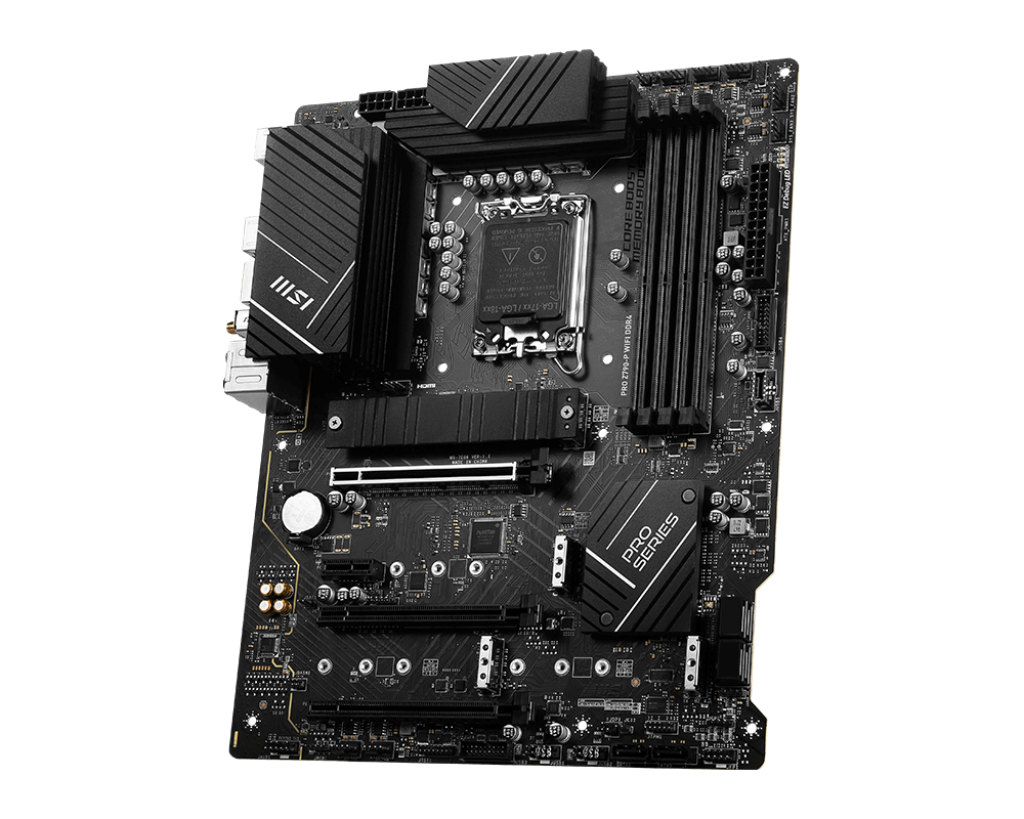

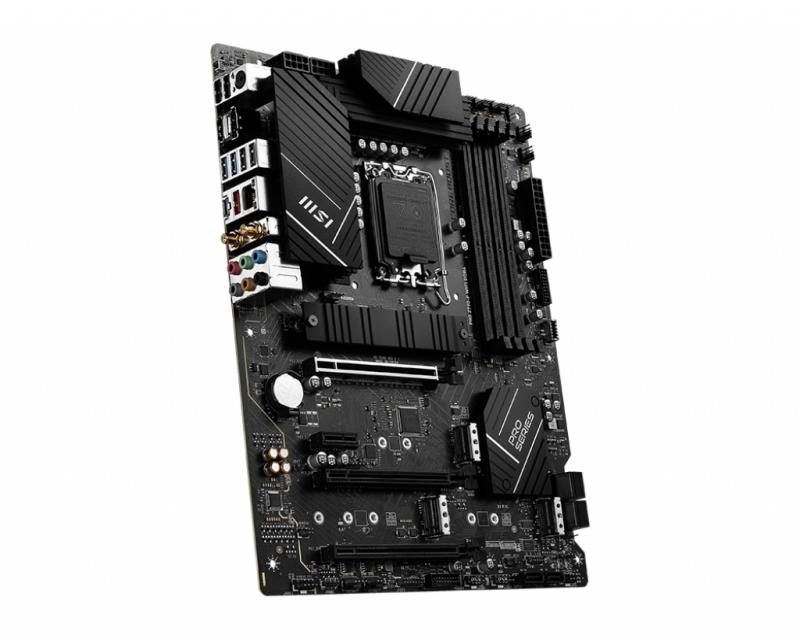

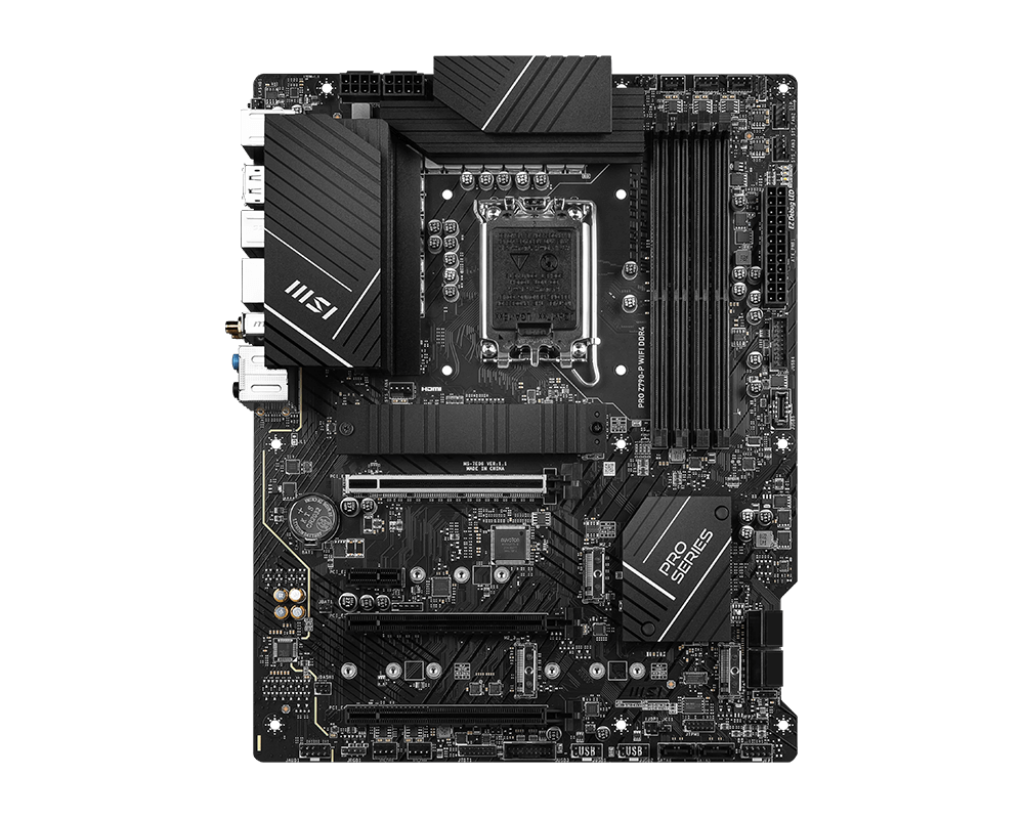

Placa de baza MSI PRO Z790-P DDR4 LGA 1700 WIFI
Stoc epuizat
1.662,00lei
Stoc epuizat

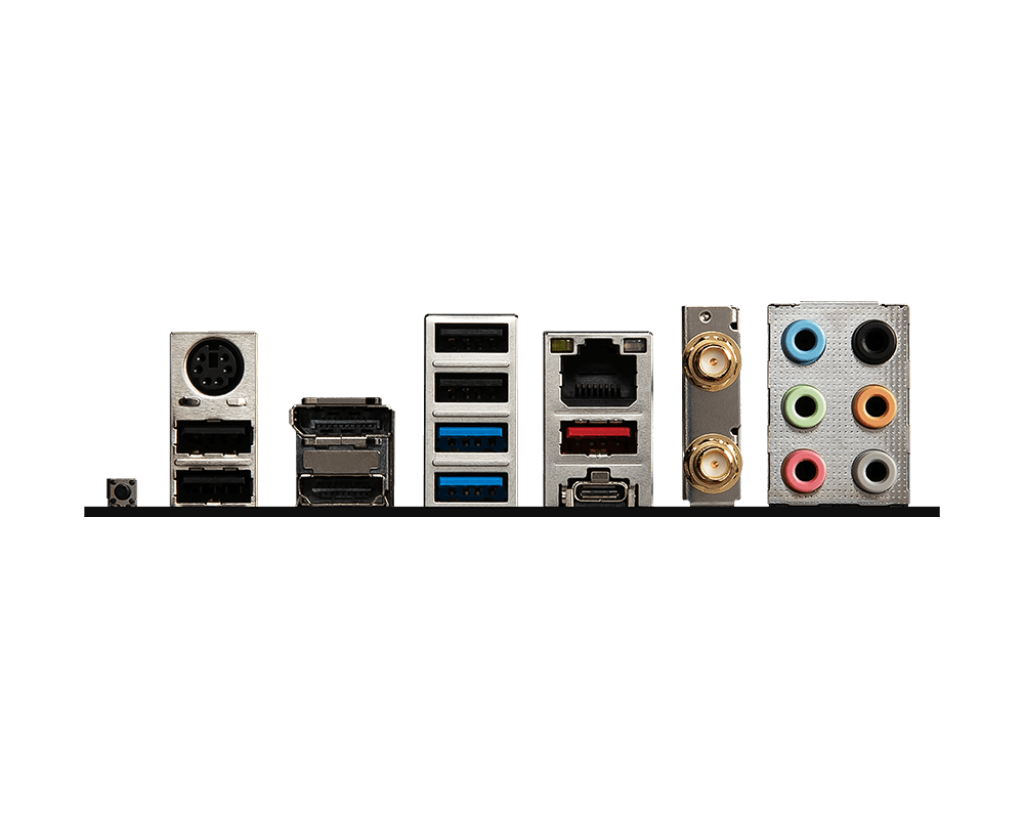

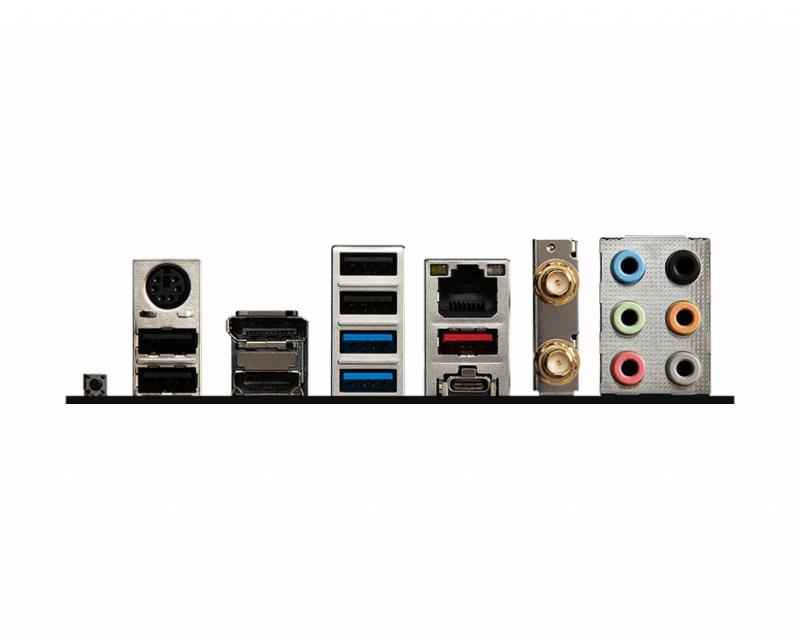

Placa de baza MSI PRO Z790-P DDR4 LGA 1700 WIFI SPECIFICATIONS Model Name PRO Z790-P WIFI DDR4 CPU Support Supports 12th/ 13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors CPU Socket LGA 1700 Chipset Intel® Z790 Chipset Expansion Slots 1x PCIe 5.0 x16 slot 1x PCIe 4.0 x16 slot 2x PCIe 3.0 x1 slots Display Interface Support 4K@60Hz as specified in HDMITM 2.1, DisplayPort 1.4 – Requires Processor Graphics Memory Support 4 DIMMs, Dual Channel DDR4 5333+MHz (OC) Storage 4x M.2 Gen4 x4 64Gbps slots, 6x SATA 6Gbps ports USB ports 1x USB 3.2 Gen 2×2 20G (1 Type-C), 2x USB 3.2 Gen 2 10Gbps (1 Type-A + 1 Type-C), 6x USB 3.2 Gen 1 5Gbps (6 Type-A), 8x USB 2.0 LAN Intel® 2.5G LAN WiFi / BT Intel® Wi-Fi 6E, Bluetooth 5.3 Audio 8-Channel (7.1) HD Audio with Audio Boost
| Producator | MSI |
|---|---|
| Garantie | 36 |
| PCI | 0 |
| Serial-or-Paralel | No/No |
| Video-Connection | HDMI/DP |
| Wi-Fi | No |
| Onboard-CPU | No |
| Memory channels | Dual-channel |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| HDMI | Da |
| Thunderbolt | Nu |
| Audio output channels | 7.1 channels |
| Supported storage drive types | HDD & SSD |
| Supported memory types | DDR4-SDRAM |
| HDMI version | 2.1 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| HDMI ports quantity | 1 |
| S/PDIF out port | Yes |
| Maximum internal memory | 128 GB |
| Ethernet LAN | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| Parallel processing technology support | Not supported |
| VGA (D-Sub) ports quantity | 0 |
| Number of memory slots | 4 |
| Unbuffered memory | Yes |
| Front panel audio connector | Yes |
| CPU fan connector | Yes |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| Processor socket | LGA 1700 |
| Supported processor sockets | LGA 1700 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Front panel connector | Yes |
| TPM connector | Yes |
| RGB LED pin header | Yes |
| Motherboard form factor | ATX |
| Motherboard chipset family | Intel |
| ECC сompatibility | Non-ECC |
| Motherboard chipset | Intel Z790 |
| Chassis intrusion connector | Yes |
| Number of M.2 (M) slots | 4 |
| Number of SATA III connectors | 0 |
| Compatible processor series | Intel® Celeron®, Intel® Pentium® Gold |
| Supported storage drive interfaces | M.2, PCI Express |
| USB 2.0 connectors | 4 |
| Internal storage capacity | 10 GB |
| RAID levels | 0, 5, 10 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 4 |
| Model Chipset | Z790 |
| Format | ATX |
| Soclu Procesor | Socket 1700 |
| Tip slot interfata grafica | PCIe 5.0 x16 |
| Chipset audio integrat | Realtek |
| Canale audio | 8.0 |
| Wireless | Nu |
| Bluetooth | Da |
| Sloturi M.2 | 4 |
| RJ-45 LAN | 1 |
| Gaming | Nu |
| Tip Memorie | DDR4 |
| Numar sloturi memorie | 4 |
| Memorie maxima | 128 GB |
| USB Type-C | Da |
| Number of SATA II connectors | 6 |
| Supported memory clock speeds | 3000,3200,3333,3466,3600,3733,3866,4000,4266,4400,4533,4600,4800,5000,5066,5200,5333 MHz |
