Placi de baza

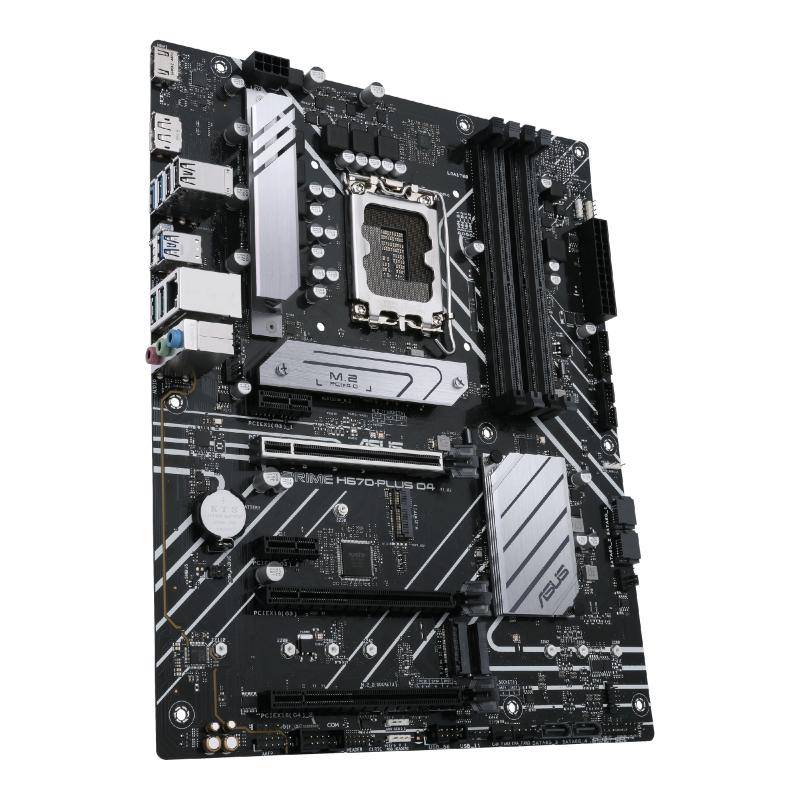

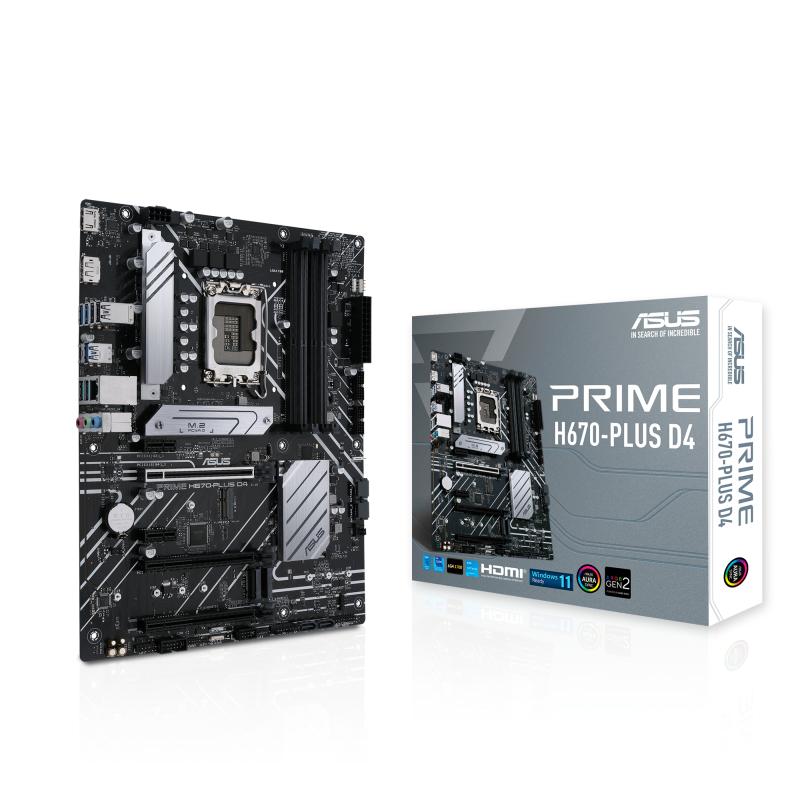

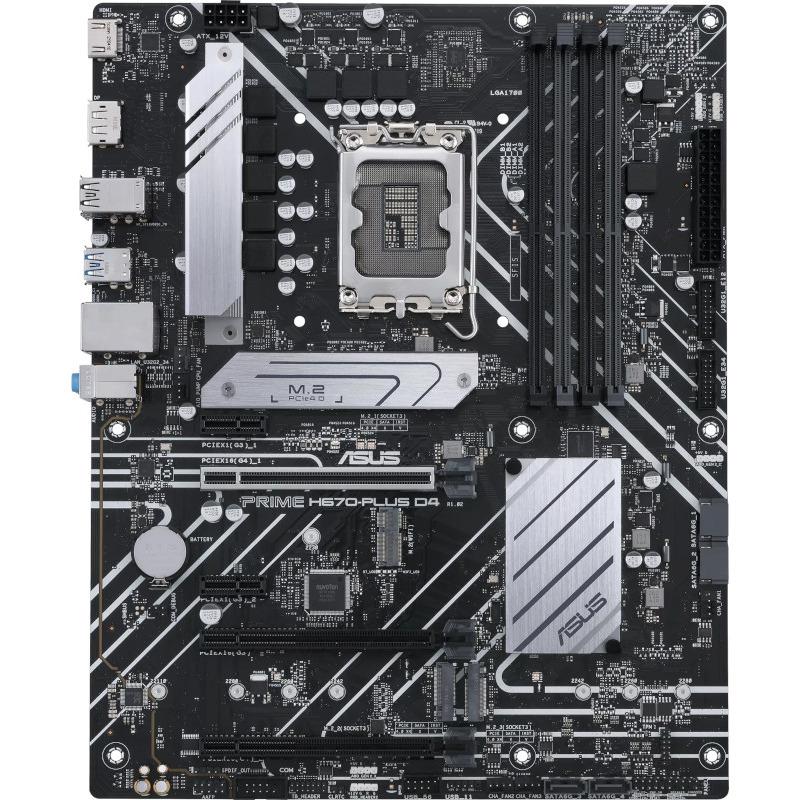

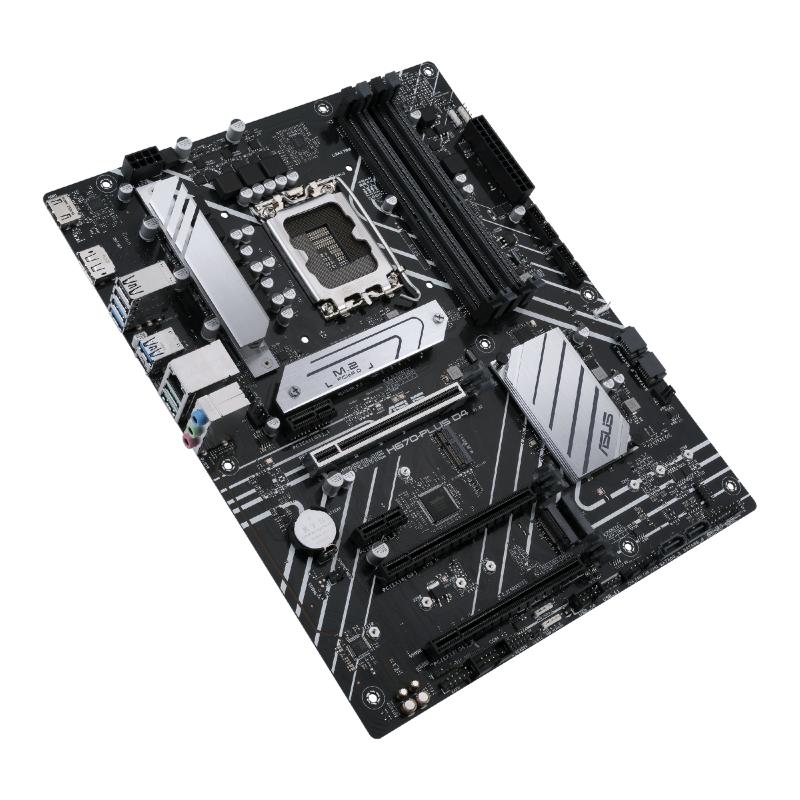

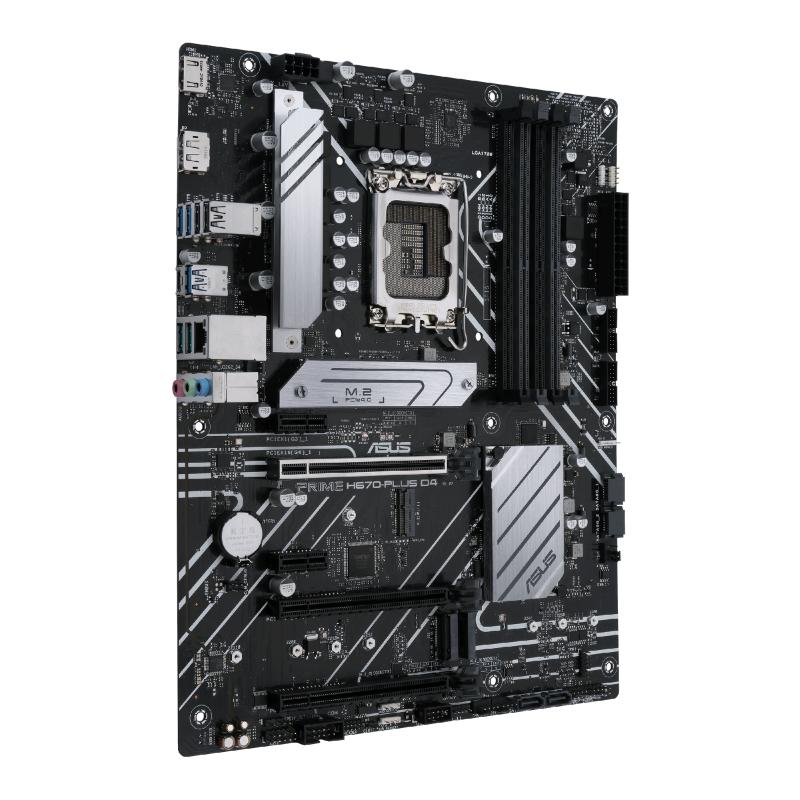

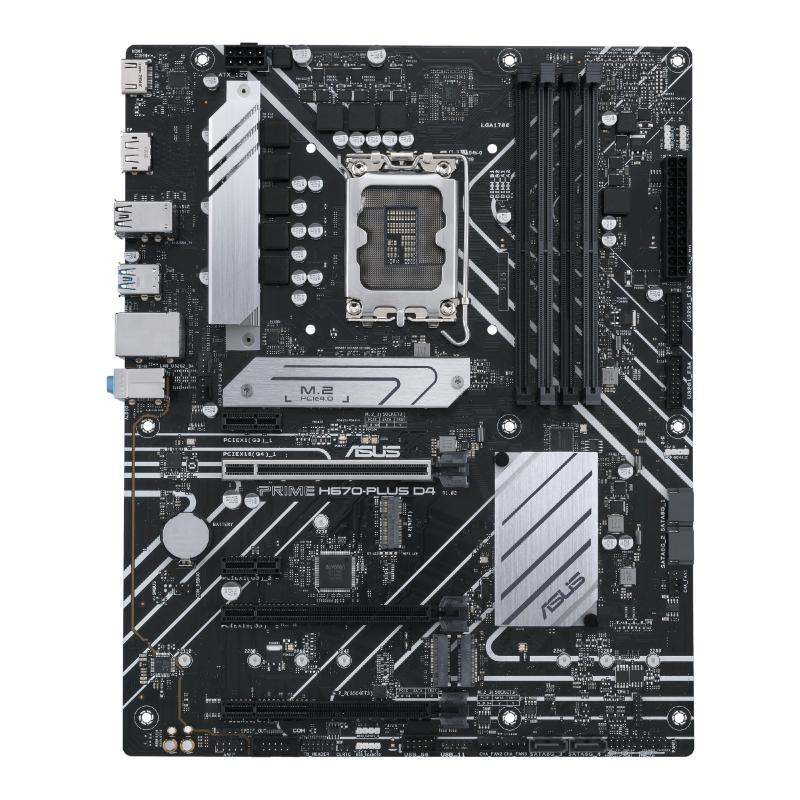

Placa de baza Asus PRIME H670-PLUS D4, LGA 1700
Producator:
Asus
Disponibilitate:
Stoc epuizat
1.074,99lei
Stoc epuizat
| General | |
| Recomandat pentru Gaming |
Da
|
| Format |
ATX
|
| Soclu procesor |
1700
|
| Producator chipset |
Intel
|
| Model chipset |
H670
|
| Procesoare suportate |
Intel 12th Generation Core/Pentium Gold/Celeron
|
| Interfata grafica |
PCI Express x16 5.0
|
| Placa audio integrata |
7.1 Audio
|
| Chipset audio |
Realtek
|
| Placa retea integrata |
10/100/1000/2500 Mbps
|
| Chipset retea |
Realtek
|
| Numar SATA-III |
4
|
| M.2 |
3
|
| Memorii Suportate | |
| Tip memorie |
DDR4
|
| Memorie maxima |
128 GB
|
| Numar sloturi |
4
|
| Tehnologie |
Dual channel
|
| Frecvente suportate |
5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 MHz
|
| Sloturi | |
| PCI Express 4.0 x16 |
3 (x16)
|
| PCI Express x1 |
1
|

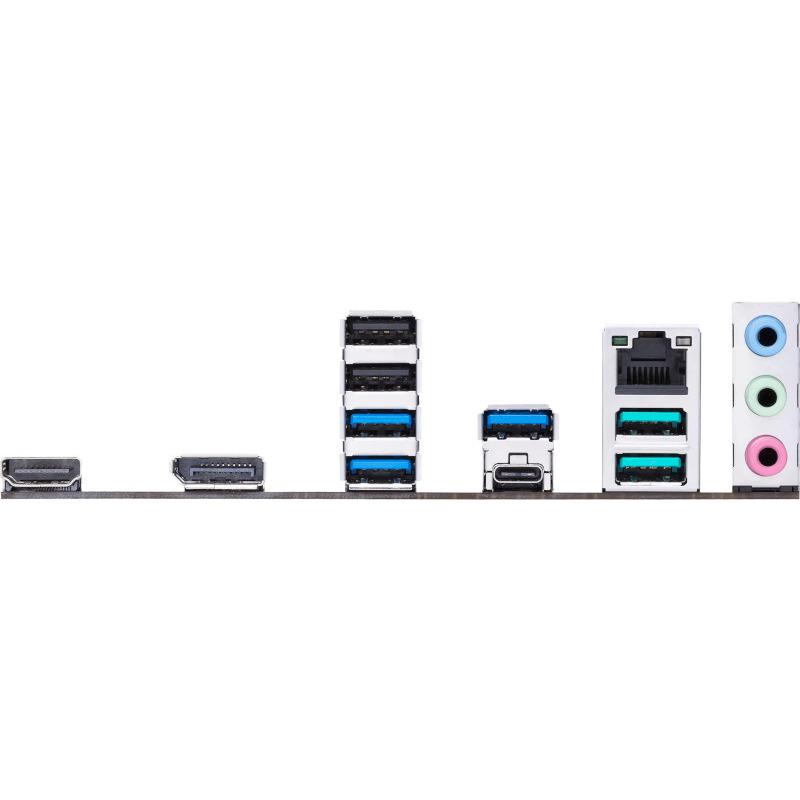

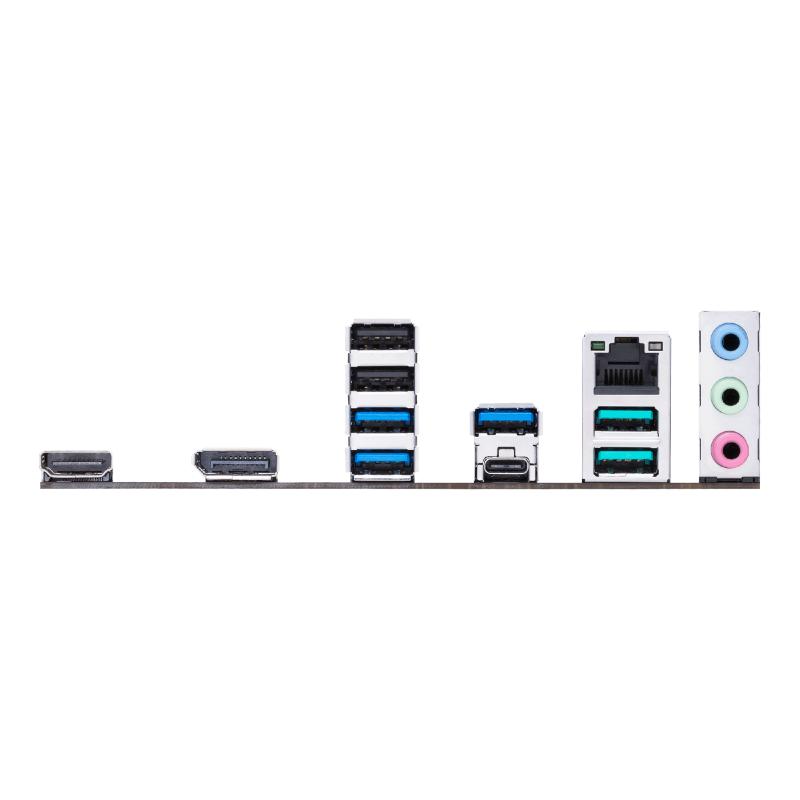

| Conectori Back Panel | |
| HDMI |
1
|
| Display Port |
1
|
| USB 2.0 |
2
|
| USB 3.2 Gen1 tip A |
3
|
| USB 3.2 Gen2 tip A |
2
|
| USB 3.2 Gen2 tip C |
1
|
| RJ-45 LAN |
1
|
| Suport audio |
7.1
|
| PCI | 0 |
|---|---|
| Serial-or-Paralel | No/No |
| Video-Connection | HDMI/DP |
| Wi-Fi | No |
| CPU încorporat | No |
| Memory channels | Dual-channel |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| HDMI | Da |
| Thunderbolt | Nu |
| PCI Express x1 (Gen 3.x) slots | 2 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| Audio output channels | 7.1 channels |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Supported storage drive types | HDD & SSD |
| Supported memory types | DDR4-SDRAM |
| Motherboard chipset | Intel H670 |
| Drivers included | Yes |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Unbuffered memory | Yes |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 0 |
| Number of SATA III connectors | 4 |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| EPS power connector (8-pin) | Yes |
| BIOS type | UEFI AMI |
| Processor socket | LGA 1700 |
| Maximum number of SMP processors | 1 |
| RAID levels | 0, 1, 5, 10 |
| 12V power connector | Yes |
| RGB LED pin header | Yes |
| Motherboard form factor | ATX |
| Motherboard chipset family | Intel |
| ECC сompatibility | Non-ECC |
| S/PDIF out connector | Yes |
| Number of COM connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Thunderbolt headers | 1 |
| Number of chassis fan connectors | 3 |
| Number of M.2 (M) slots | 3 |
| BIOS memory size | 192 Mbit |
| Number of displays supported | 2 |
| Model Chipset | H670 |
| Format | ATX |
| Soclu Procesor | Socket 1700 |
| Chipset audio integrat | Realtek |
| Canale audio | 7.1 |
| Wireless | Nu |
| Bluetooth | Nu |
| Sloturi M.2 | 3 |
| RJ-45 LAN | 1 |
| Gaming | Nu |
| Tip Memorie | DDR4 |
| Numar sloturi memorie | 4 |
| Memorie maxima | 128 GB |
| Tip slot interfata grafica | PCIe 4.0 x16 |
| USB Type-C | Da |
| Supported storage drive interfaces | M.2, SATA |
| Producator | ASUS |
| Garantie | 36 |
