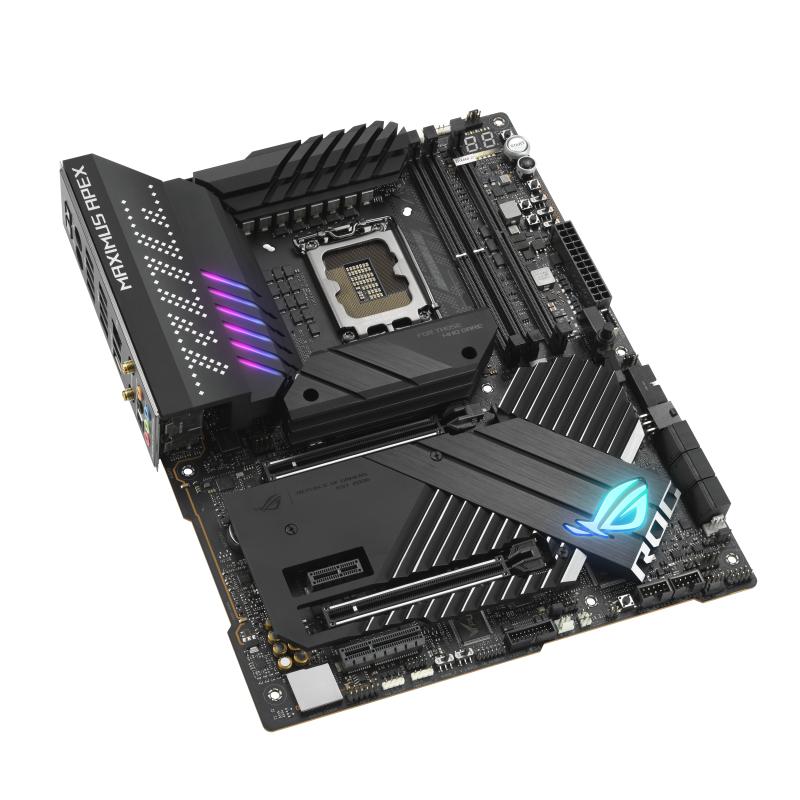

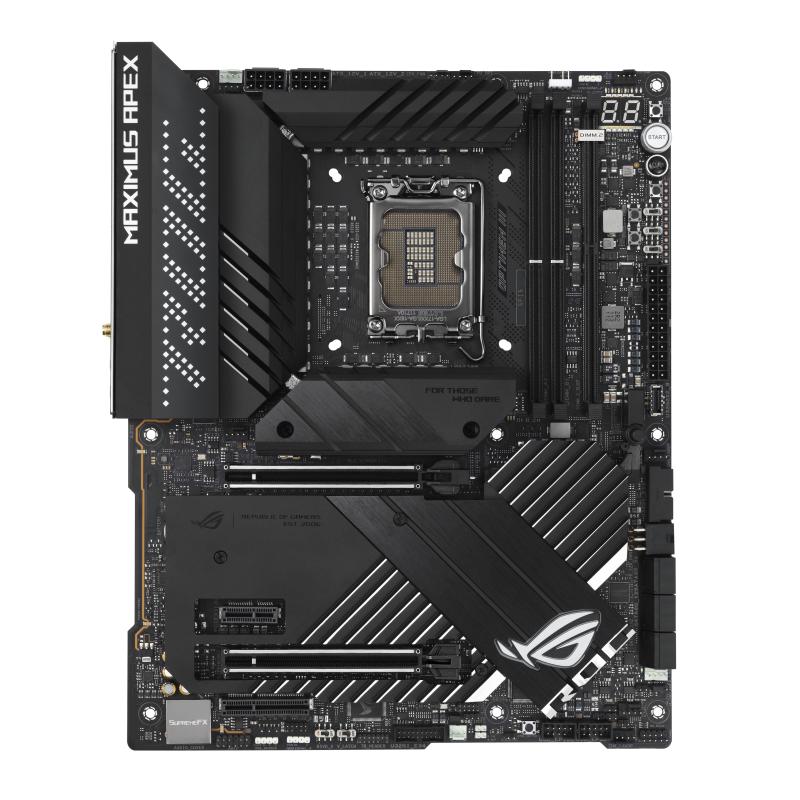

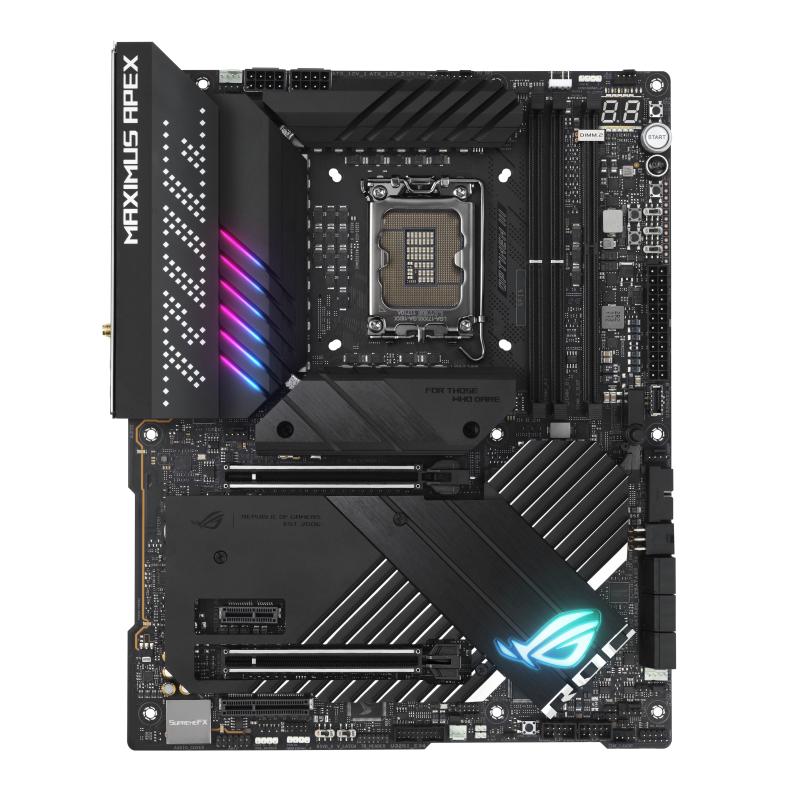

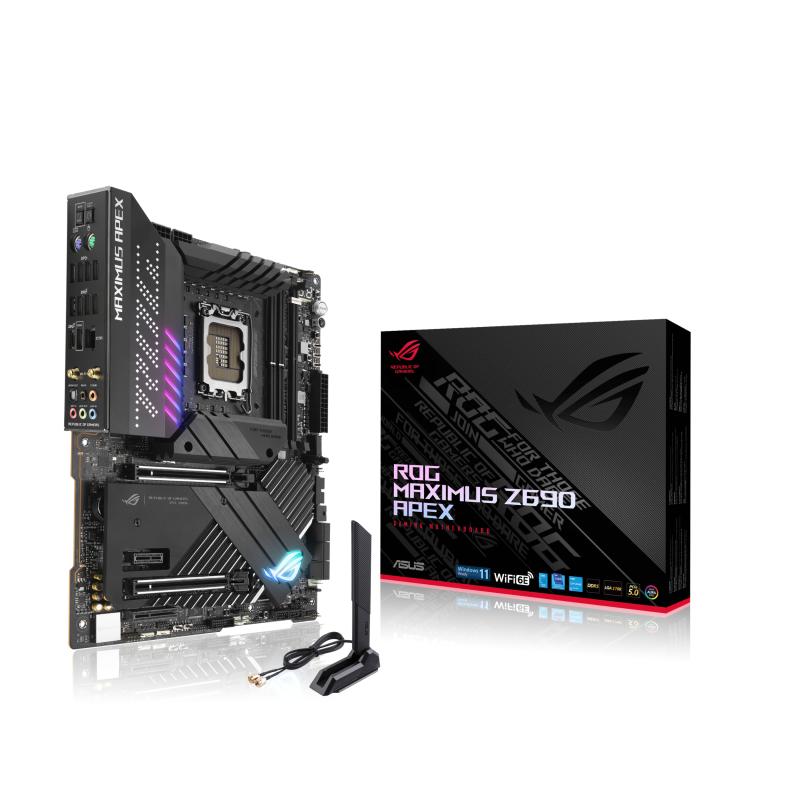

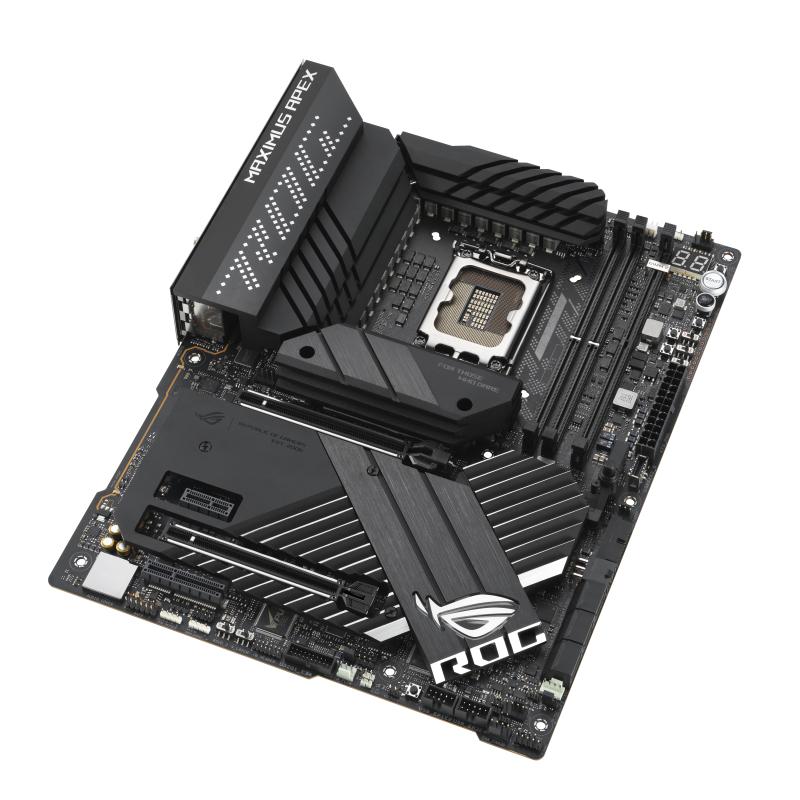

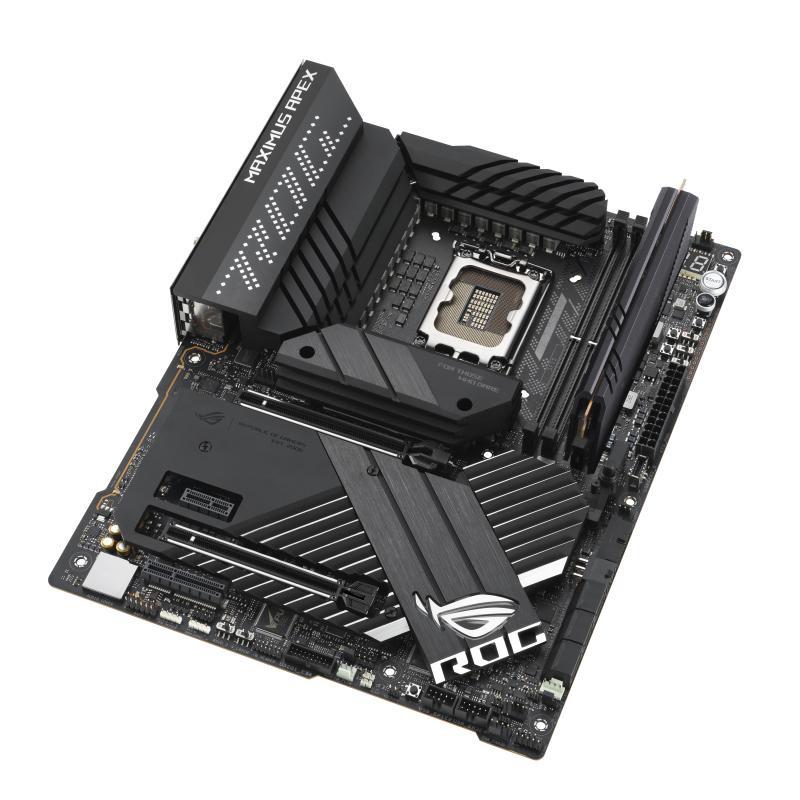

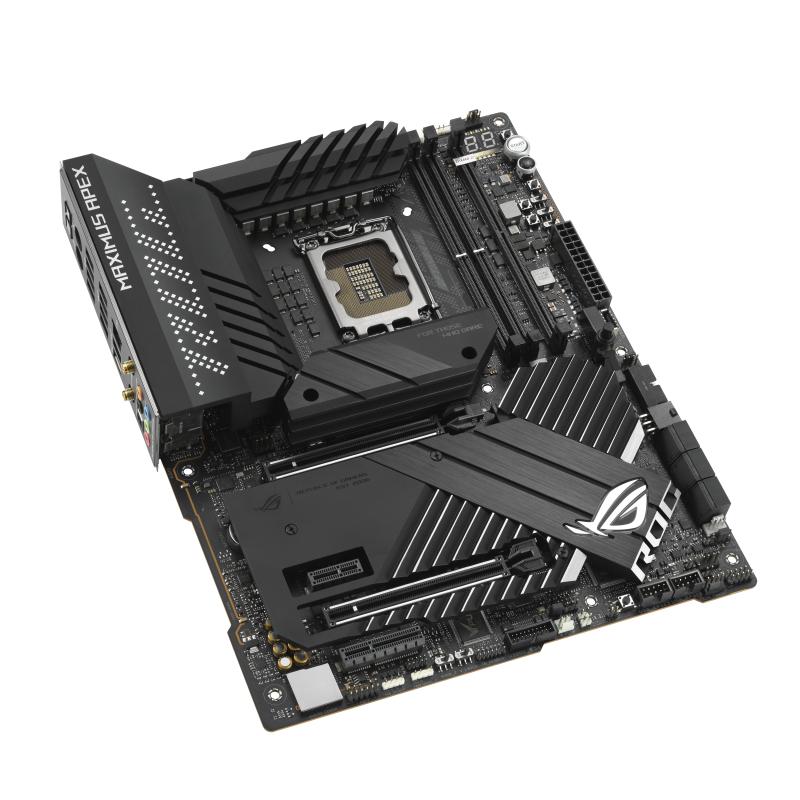

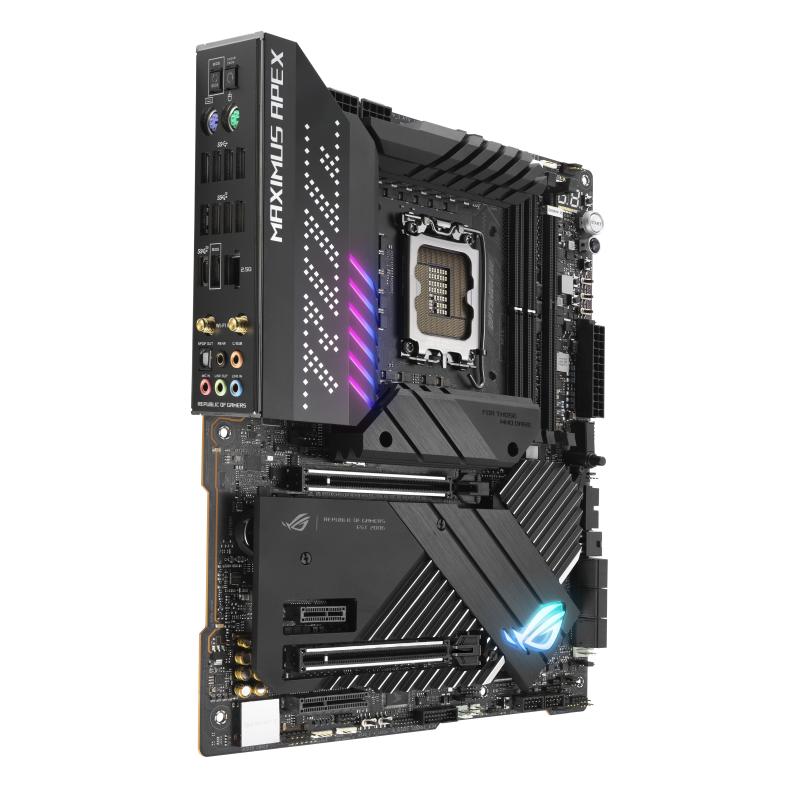

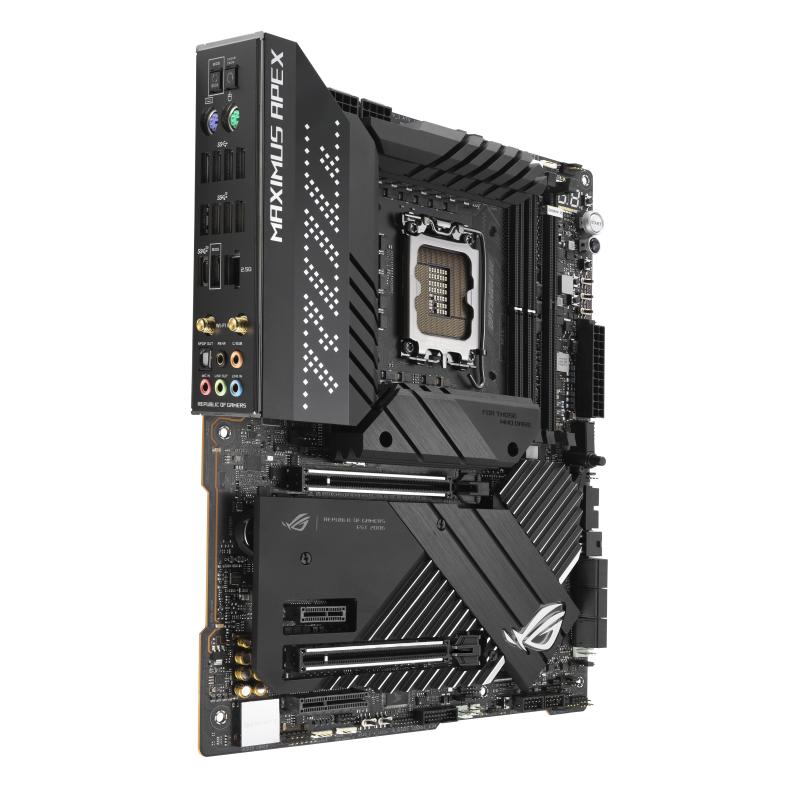

Placa de baza Asus ROG MAXIMUS Z690 APEX, LGA 1700
Stoc epuizat
4.997,99lei
Stoc epuizat
Placa de baza Asus ROG MAXIMUS Z690 APEX LGA 1700 ROG MAXIMUS Z690 APEX Intel® Z690 ATX motherboard with 24+0 power stages, DDR5, Five M.2, USB 3.2 Gen 2×2 front-panel connector with Quick Charge 4+ Support, PCIe® 5.0, Onboard Wi-Fi 6E and Aura Sync RGB lighting Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors Intelligent Control: ASUS-exclusive tools including AI Overclocking, AI Cooling, AI Networking and Two-Way AI Noise-Cancelation for easy configuration Robust Power Solution: 24+0 teamed power stages rated for 105 A, ProCool II power connectors, MicroFine alloy chokes and premium metallic capacitors Optimized Thermal Design: Enlarged VRM heatsinks plus integrated aluminum I/O cover, high-conductivity thermal pad, dual M.2 heatsinks with embedded backplates and ROG Water-Cooling Zone High Performance Networking: Onboard Wi-Fi 6E, Intel® 2.5Gb Ethernet, and ASUS LANGuard. Fastest Gaming Connectivity: PCIe® 5.0, PCIE 5.0 M.2 card with Gen 5 M.2, USB 3.2 Gen 2×2 front-panel connector Industry Leading Audio: ROG SupremeFX ALC4080 codec with Savitech SV3H712 amplifier for high-fidelity audio Unmatched Personalization: ASUS-exclusive Aura Sync RGB lighting, including one RGB header and three addressable Gen 2 RGB headers DIY Friendly Design: Pre-mounted I/O shield, PCIe Slot Q-Release, V- Latch switch, BIOS FlashBack™, Q-Code, FlexKey, Q-Connector, SafeSlot and ROG graphics card holder Renowned Software: Bundled 1-year AIDA64 Extreme subscription and intuitive UEFI BIOS dashboard with integrated MemTest86 https://rog.asus.com/motherboards/rog-maximus/rog-maximus-z690-apex- model/
| PCI | 0 |
|---|---|
| Serial-or-Paralel | No/No |
| Video-Connection | HDMI/DP |
| Wi-Fi | Yes |
| CPU încorporat | No |
| Memory channels | Dual-channel |
| RAID support | Yes |
| Wake-on-LAN ready | Yes |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| Audio output channels | 7.1 channels |
| PCI Express x1 (Gen 3.x) slots | 1 |
| Number of memory slots | 2 |
| Supported storage drive types | HDD & SSD |
| Motherboard chipset | Intel Z690 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| Parallel processing technology support | Not supported |
| Drivers included | Yes |
| Memory slots type | DIMM |
| Unbuffered memory | Yes |
| USB 2.0 connectors | 2 |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| EPS power connector (8-pin) | Yes |
| BIOS type | UEFI AMI |
| Processor socket | LGA 1700 |
| Supported memory types | DDR5-SDRAM |
| RAID levels | 0, 1, 5, 10 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| 12V power connector | Yes |
| RGB LED pin header | Yes |
| Motherboard form factor | ATX |
| Motherboard chipset family | Intel |
| Clear CMOS button | Yes |
| ECC сompatibility | Non-ECC |
| WiFi-AP antenna jack | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Thunderbolt headers | 1 |
| Audio chip | Realtek ALC4080 |
| Number of SATA III connectors | 6 |
| PCI Express x4 slots | 1 |
| Number of M.2 (M) slots | 4 |
| Thunderbolt | Da |
| PCI Express x16 (Gen 5.x) slots | 2 |
| Number of chassis fan connectors | 3 |
| HDMI | Nu |
| PS/2 ports quantity | 2 |
| Model Chipset | Z690 |
| Gaming | Da |
| Format | ATX |
| Soclu Procesor | Socket 1700 |
| Tip Memorie | DDR5 |
| Numar sloturi memorie | 2 |
| Memorie maxima | 64 GB |
| Tip slot interfata grafica | N/A |
| Chipset audio integrat | SupremeFX |
| Canale audio | 7.1 |
| Wireless | Da |
| Bluetooth | Da |
| Sloturi M.2 | 5 |
| RJ-45 LAN | 1 |
| USB Type-C | Da |
| BIOS memory size | 512 Mbit |
| Number of storage drives supported | 11 |
| Supported memory clock speeds | 6600,4800,5000,5200,5400,5600,5800,6000,6200,6400 MHz |
| Supported storage drive interfaces | M.2, PCI Express 3.0, PCI Express 4.0, PCI Express 5.0, SATA III |
| Producator | ASUS |
| Garantie | 36 |
